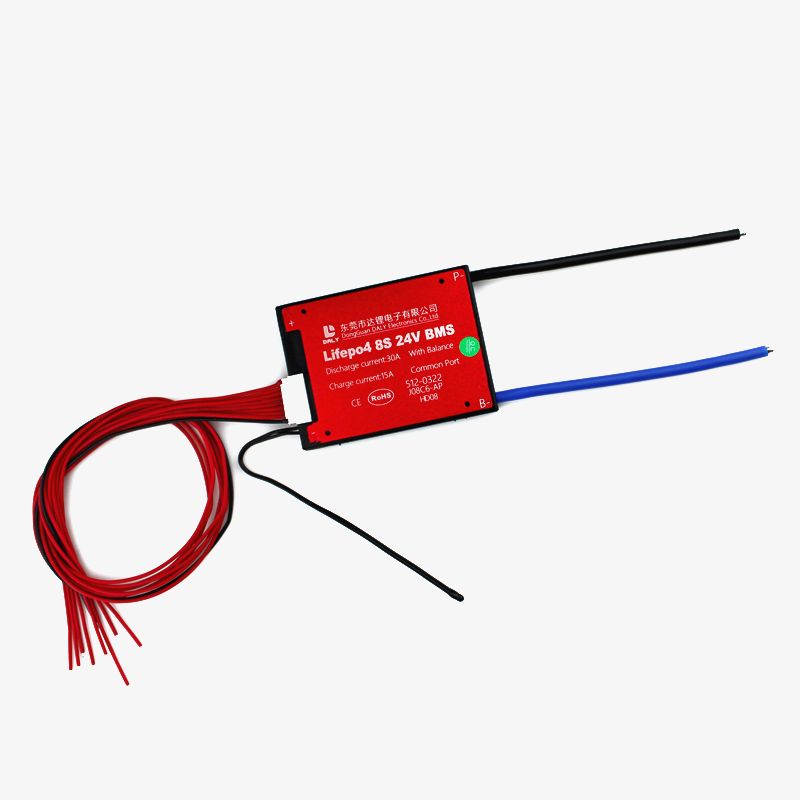

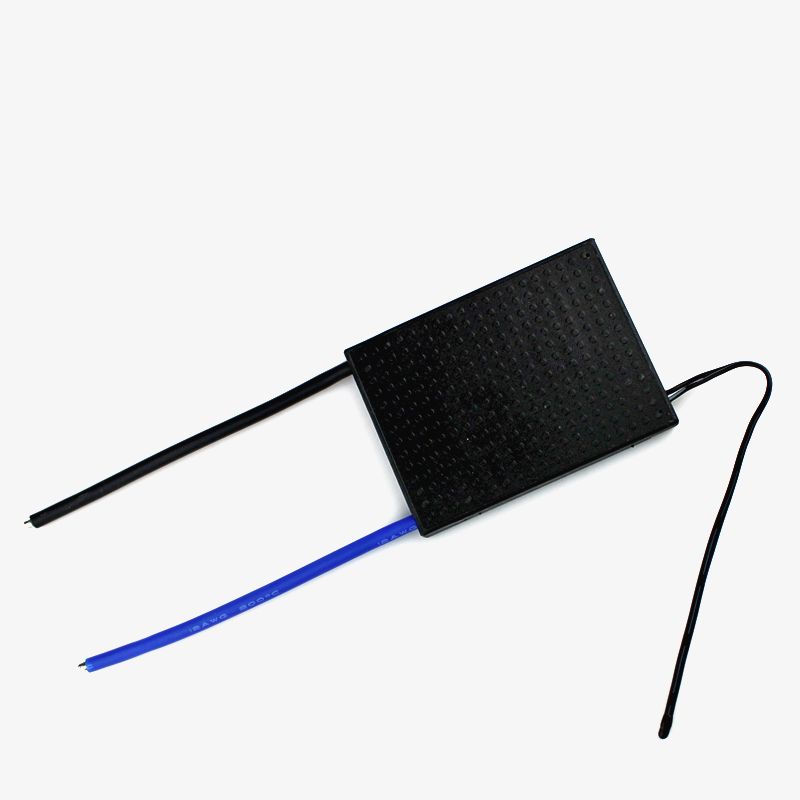

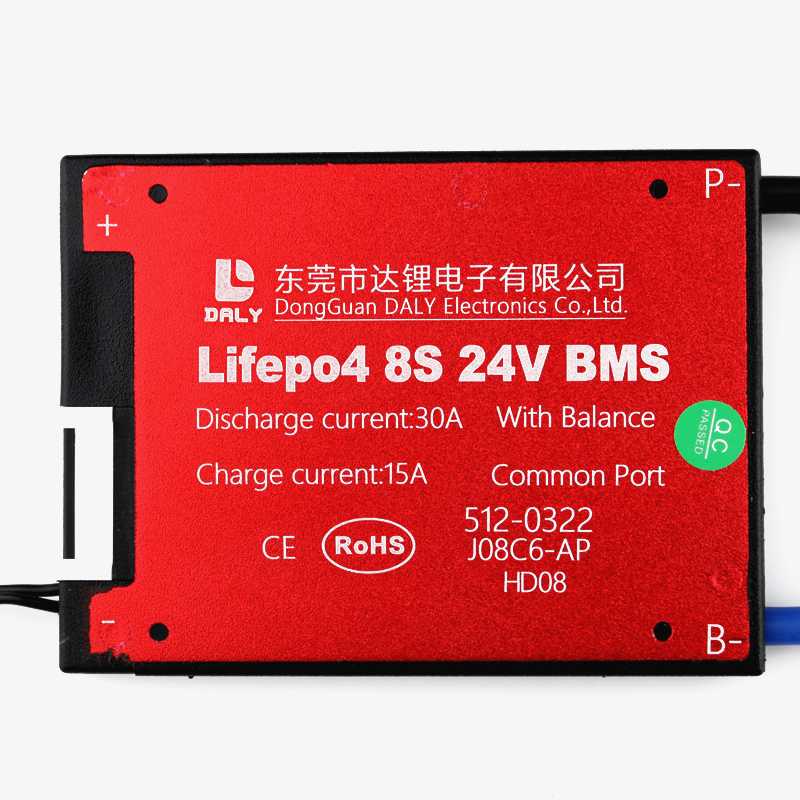

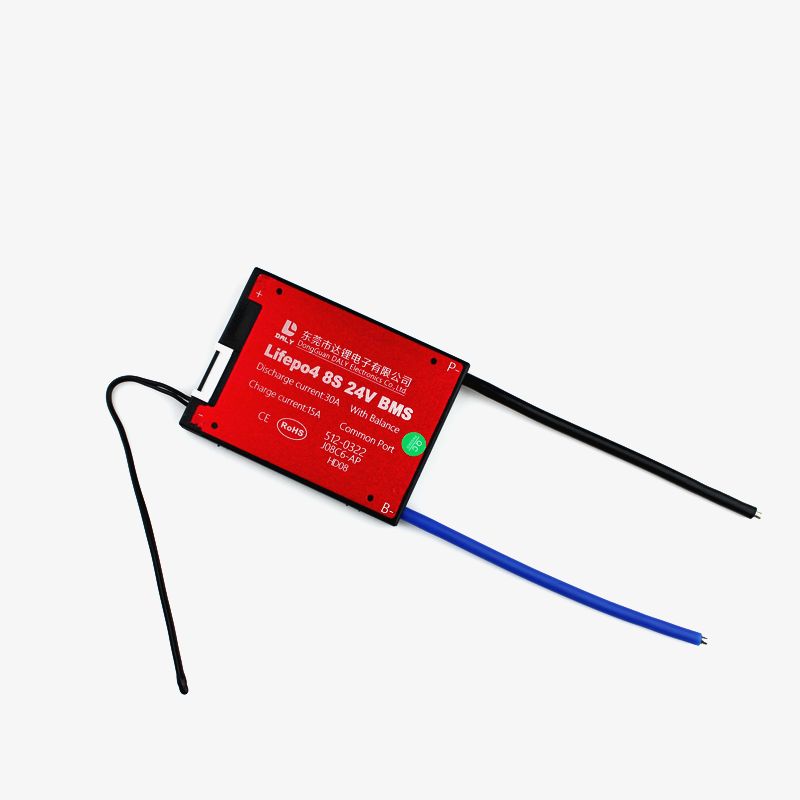

DALY LiFePo4 8S 24V 40A Battery Management System - BMS Protection Board

SKU: RZ24332302 Brand: DALY Category: Batteries & Power

₹ 1,558.25

Out of Stock

Buy DALY LiFePo4 8S 24V 40A Battery Management System - BMS Protection Board online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 1,527.09
11 – 30	3%	₹ 1,511.50
31 – 50	4%	₹ 1,495.92
51 – 100	5%	₹ 1,480.34

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand DALY

Category Batteries & Power

Subcategory Batteries (General)

SKU RZ24332302

Daly Lifepo4 8S 24V 40A Battery Management System Circuit is an 8 Cell in Series 24V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.

Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the Orange lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.

Features:

State of charge calculations.
Cell over-voltage and under-voltage protection.
Intelligent battery balancing (passive).
Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.

Package Includes:

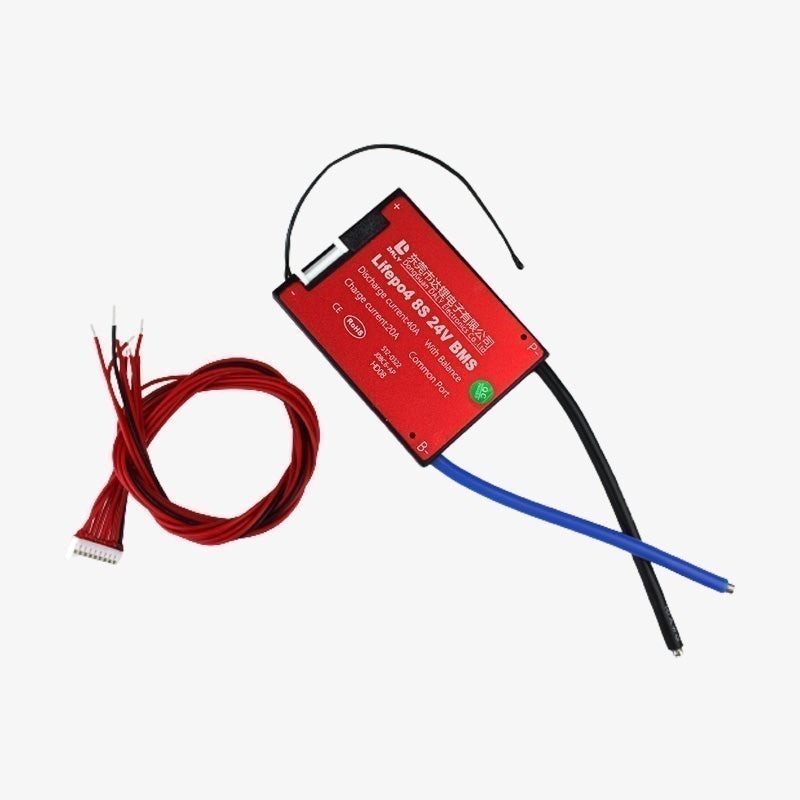

1 x Daly 8S 24V 40A Battery Management System

Balance Current(mA)	40±5
Balance Detect Voltage(V)	3.6
Cable Size (AWG)	10
Charge Current(A)	20
Charge Voltage(V)	15
Height (mm)	8.5
Length (mm)	82
Model	8S 24V 40A
Over Discharge Detect(V)	2.2±0.1
Over Discharge Release(V)	2.7±0.1
Overcharge Detect Voltage(V)	3.75±0.05
Overcharge Release Voltage(V)	3.55±0.05
Weight (gm)	87
Width (mm)	60
Working Current(uA)	100
Working Temperature Range (°C)	-20 to 70
