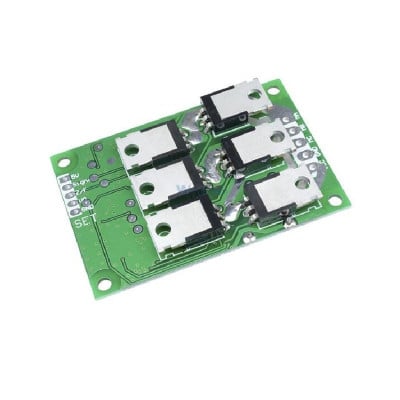

DC12V-36V-15A 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board with Hall Drive

This Brushless Motor Controller DC 15-36V 500W PWM Driver Board is used for the 3-phase brushless sensorless motor but is not suited for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor no-load working current is too large, the speed is not stable, the efficiency is low, and can start up with a load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect.

Features:

1. Protection: Overload protection, locked-rotor protection, over-current protection.
2. Speed control function: Voltage speed regulation or single chip.
3. microcomputer control: PWM speed regulation.

Specifications:

1. Voltage Range(V): 12-36
2. Current handling Capacity(A): 15
3. Power handling Capacity(W): 500
4. Analog voltage speed regulation: 0-5V
5. Operating temperature: -40 ~ +85
6. Length: 6cm
7. Width: 4cm
8. Height: 1cm
9. Weight: 29
10. Size: 62 x 42.5 x 17 mm.

Packages Includes:

1 x Brushless Motor Controller Hall Motor Balanced Car Driver Board
