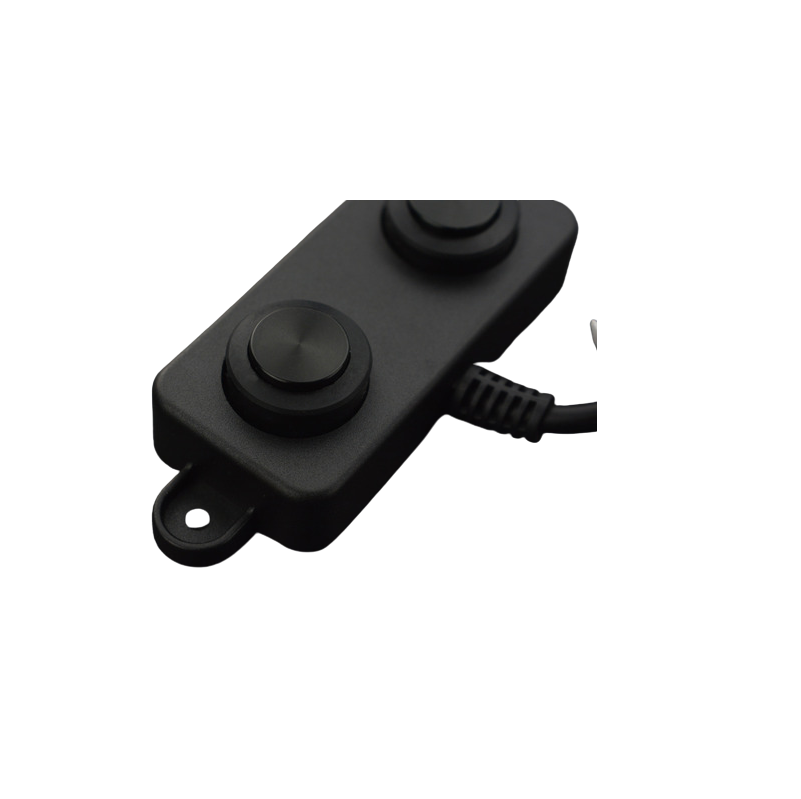

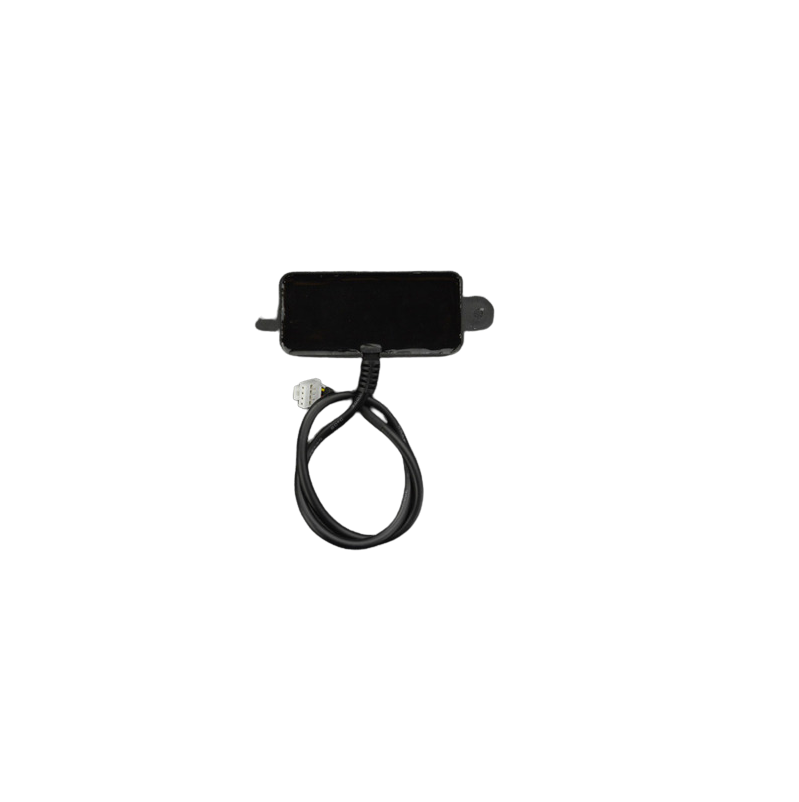

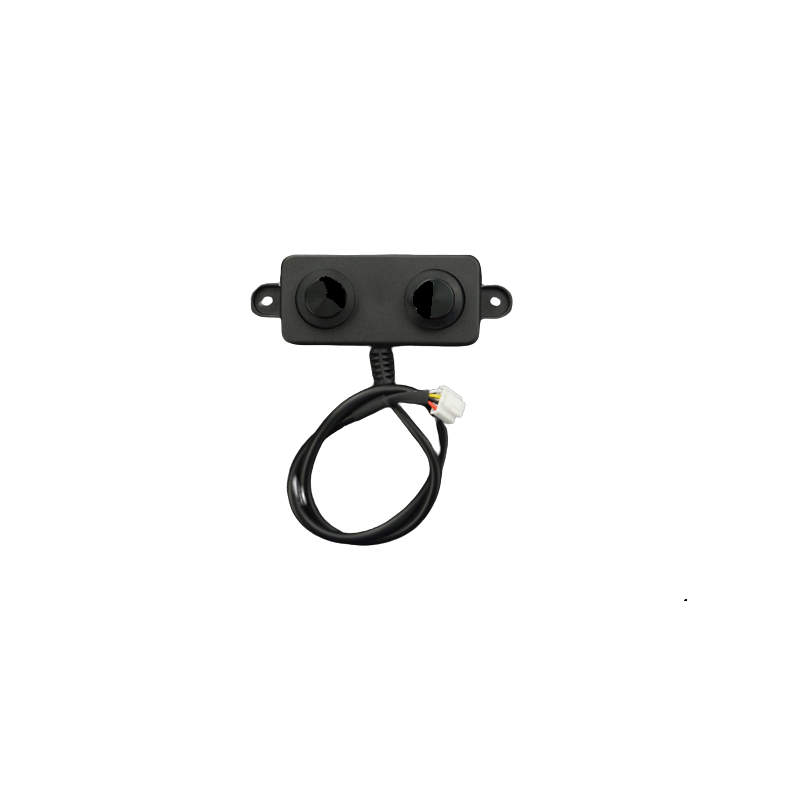

DFRobot A02YYUW Waterproof Ultrasonic Sensor

An ultrasonic distance sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse. This is an easy-to-use commercial-grade ultrasonic sensor module of high performance and reliability, featuring a much smaller blind zone, wider sensing angle, and a certain penetration power(smog, dust) compared with other similar sensors

The ultrasonic sensor adopts a closed separated probe, waterproof and dustproof, which could be well suitable for harsh and moist measuring environments. All the signal processing units are integrated inside the module, so users can directly obtain the distance value through Asynchronous Serial Interface. With a 9600bit/s band rate, the sensor can easily communicate with the upper host or other MCU, which greatly shortens the developing cycle for users.

Features:

1. High performance and reliability
2. Featuring a much smaller blind zone
3. Wider sensing angle

Specifications:

1. Operating Voltage: 3.3~5V
2. Average Current: <8mA
3. Blind Zone Distance: 3cm
4. Detecting Range(Flat object): 3-450cm
5. Output: URAT
6. Response Time: 100ms
7. Operating Temperature: -15~60℃
8. Storage Temperature: -25~80℃
9. Reference Angle: 60º
10. Waterproof Grade: IP67

Package Includes:

1 x DFRobot A02YYUW Waterproof Ultrasonic Sensor
