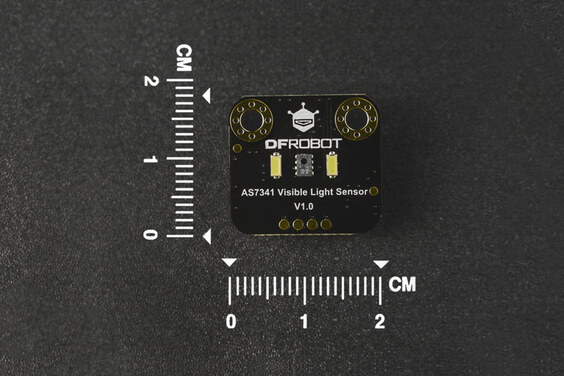

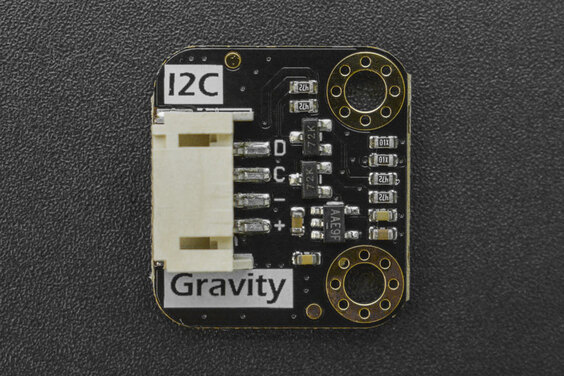

DFRobot Gravity AS7341 11-Channel Visible Light Sensor

We live in a colorful world, but how much do you really know about color? Your eyes may deceive you, while the sensors don’t lie. This Gravity: AS7341 11-Channel Visible Light Sensor can tell you the truth about color.

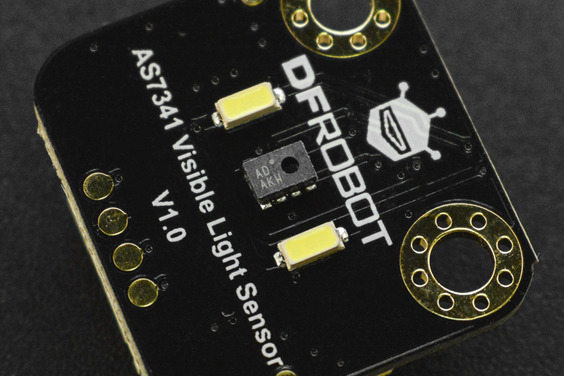

DFRobot Gravity AS7341 11-Channel Visible Light Sensoremploys the new generation of AS7341 spectral sensor IC launched by the well-known AMS company. The sensor features eight channels for the visible light, one channel for near-IR, and one channel without a filter. Also, it integrates a dedicated channel to detect ambient light flicker. Besides that, this sensor comes with 6 independent 16-bit ADC channels for data processing in parallel. The two onboard extra-bright LEDs can supply light in a dark environment.

Applications:

1. High accuracy color detection and matching
2. Color mixing effect detection
3. Lighting color temperature adjustment
4. Lighting atmosphere control
5. Modern plant cultivation

Features:

1. 8 optical channels covering the visible spectral range
2. 50Hz and 60Hz ambient light flicker detection
3. 6 independent 16-bit ADC channels

Useful Link:

• Product wiki
• Spectrophotometer Experiment Based on AS7341 Spectral Sensor

Package Includes:

1 x DFRobot Gravity AS7341 11-Channel Visible Light Sensor
