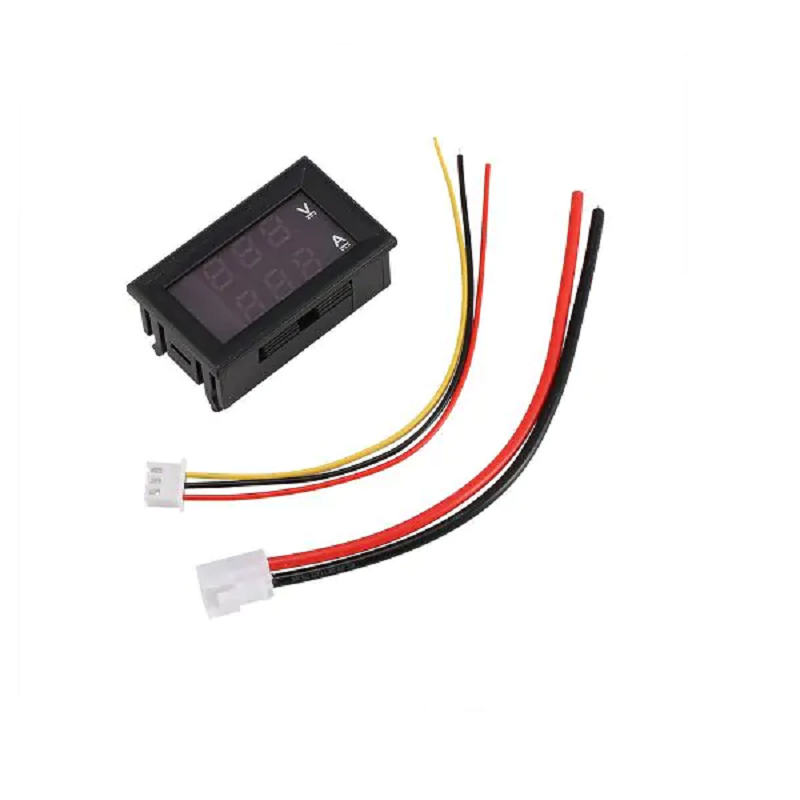

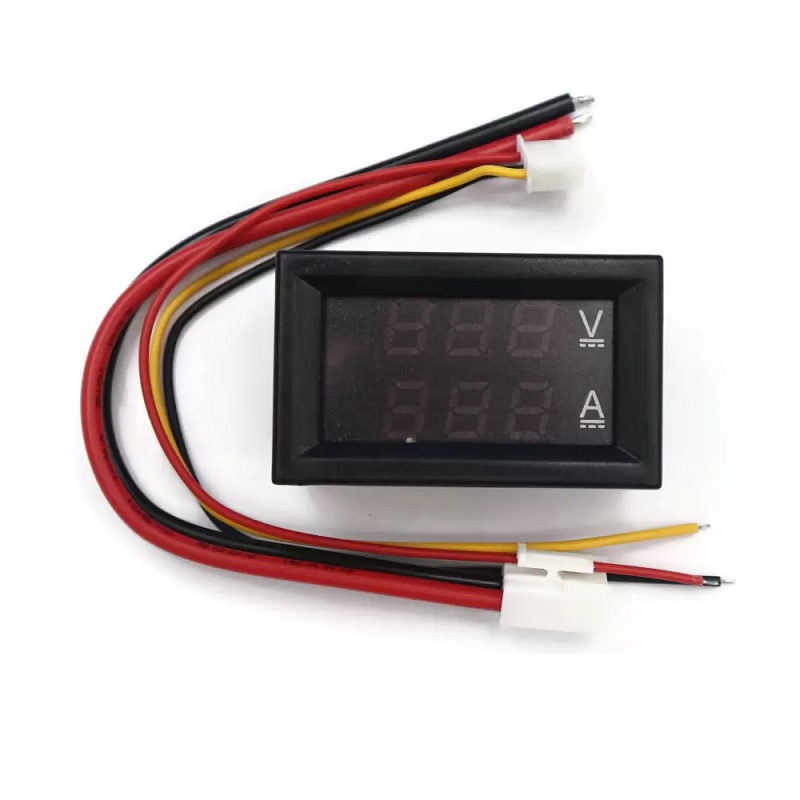

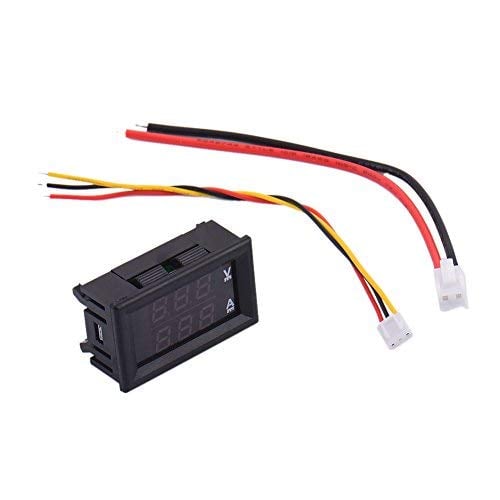

Dual Led 0.28 ” Display for DC0-100V 10A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red-Green 10A

Display Voltage and current simultaneously in different colors, red for Voltage, Green for current (the current is Measured in the negative rail). 2 Require external power supply; with reversed connection protection. 3 Ground wire of testing end and power supply terminal is the same wire; quick refresh of about 500 MS/time. 4 With built-in shunt, has Voltage and current calibration potentiometers. Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

Specification and Features:

1.  100% Brand New!!!
2. Color: Like the picture show
3. Rapid response recovery characteristics.
4. It Has a long life and reliable stability.
5. Quantity: 1 pc.
6. High precision, four digital display.
7. Working voltage: DC 4V-28V.
8. Working current: 10mA.
9. Display: 0.28″ Two-color blue and Green.
10. Measuring range: DC 0-100V 0-01A  .
11. Operating temperature: -10 to 65° c.
12. Working pressure: 80 to 106 kPa.
13. Size: 48×25×20 mm.
14. Current: Range x 0.08%+Two digits.
15. Voltage: Range x 0.08%+Two digits.

Package Includes:

1 x Dual Led 0.28 ” Display for DC0-100V 10A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier  Red & Green 10A
