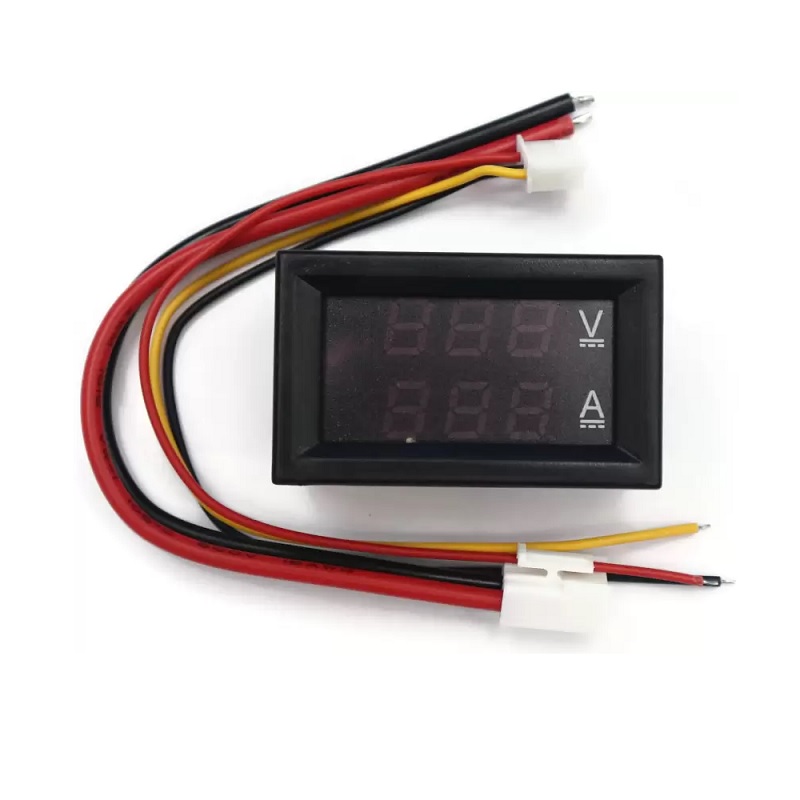

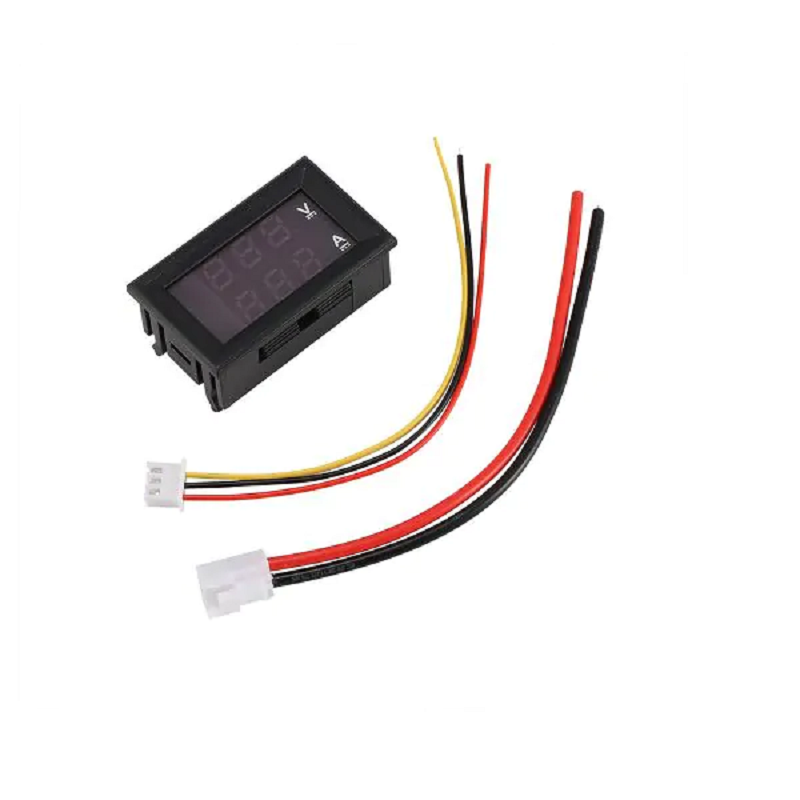

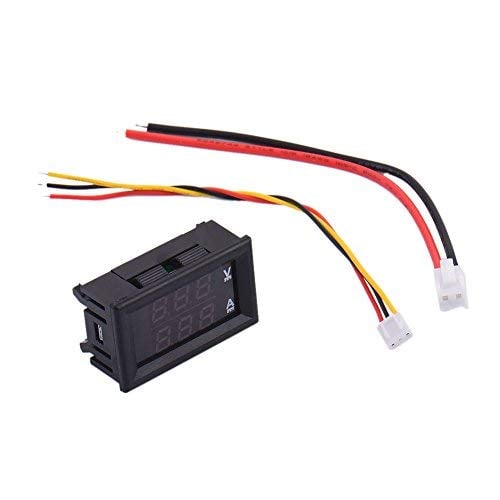

Dual Led 0.28 ” Display for DC0-100V Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Red 10A

Display Voltage and current simultaneously in different colors, red for Voltage, Blue for current (the current is Measured in the negative rail). 2 Require external power supply; with reversed connection protection. 3 Ground wire of testing end and power supply terminal is the same wire; quick refresh of about 500 MS/time. 4 With built-in shunt, has Voltage and current calibration potentiometers. Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

Features:

1. Measure voltage: DC 0 ~ 100V
2. Operating voltage: DC 4.5 ~ 30V
3. Minimum resolution(V): 0.1V
4. Minimum resolution(A): 0.01A
5. Operating current: 20mA
6. Display: three 0.28″ LED digital tube
7. Display color: Red & Red (two-color display)
8. Dimensions: 48 x 29 x 21mm
9. Mounting cutout: 45.5 x 26.5mm
10. Refresh rate: about 500mS / times
11. Measure accuracy: 1%
12. Operating temperature: -10 to 65ºc
13. Operating Humidity: 10 to 80% (non-condensing)
14. Working pressure: 80 to 106 kPa

Specification:

1.  100% Brand New!!!
2. Color: Like the picture show
3. Rapid response recovery characteristics.
4. It Has a long life and reliable stability.
5. Quantity: 1 pc.
6. High precision, four digital display.
7. Working voltage: DC 4V-28V.
8. Working current: 10mA.
9. Display: 0.28″ Two-color Red & Red.
10. Measuring range: DC 0-100V 0-01A  .
11. Operating temperature: -10 to 65° c.
12. Working pressure: 80 to 106 kPa.
13. Size: 48×25×20 mm.
14. Current: Range x 0.08%+Two digits.
15. Voltage: Range x 0.08%+Two digits.

Package Includes:

1 x Dual Led 0.28 ” Display for DC0-100V 10A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier  Red & Red 10A
