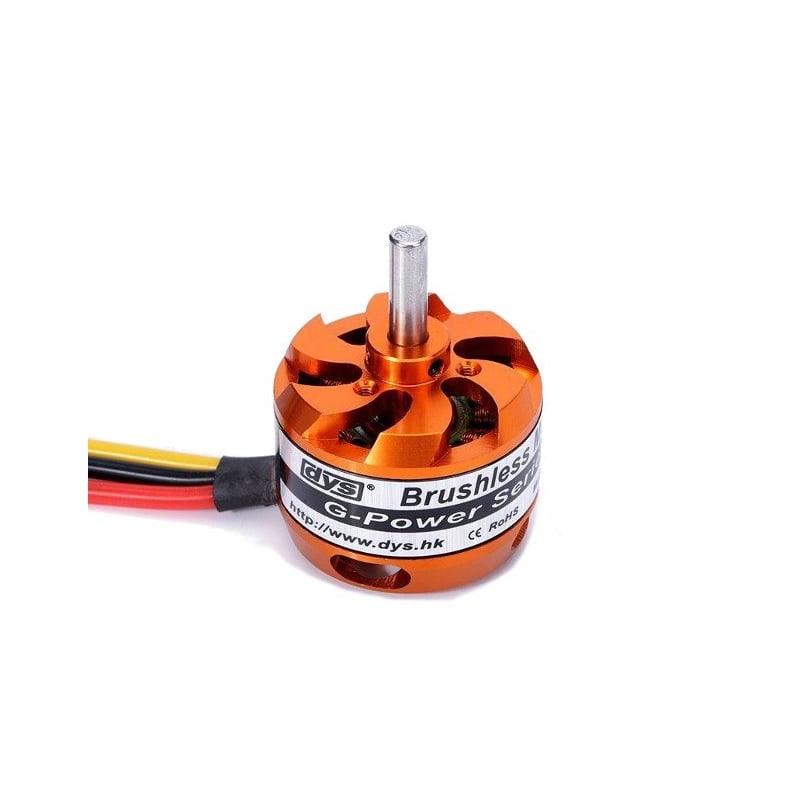

DYS D3530-10 1400KV BLDC Motor

This DYS D3530-10 1400KV brushless outrunner motor specifically made to power Quadcopters and Multirotors. It is a 1400kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 7 propellers.

The motor comes with 3mm banana male connector attached which can be directly connected with 50A ESC without any soldering requirement

With a 3S LiPo battery, 50A ESC, and high efficiency 10″ propellers, these motors provide up to 446gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 3.84 kg thrust! Use this to build powerful and efficient quadcopters.

This is a low price and excellent quality Brushless Motor.  It comes with Bullet Connectors already soldered.

Applications:

1. Drones
2. Quad-copters
3. Multi-rotors
4. RC Airplanes
5. UAV

Features:

1. The steel design is capable of withstanding competitive conditions.
2. Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
3. Compact size.
4. Offers great performance and value for money.
5. Smooth throttle response for best RC experience.

Specifications:

1. Product: BLDC Motor
2. Model: DYS D3530-10 1400KV
3. Voltage: 7.2v~15V / 2~3s Lipo
4. Kv: 1400 rpm/v
5. Shaft Diameter: 3mm
6. Shaft Length: 10mm
7. Max Watts: 446W
8. ESC: 50A
9. Screw Size: M3
10. Max pull: 1180g
11. Motor: 35 x 30mm
12. Motor Weight: 74g

Packages Includes:

1 x DYS D3530-10 1400KV BLDC Motor
