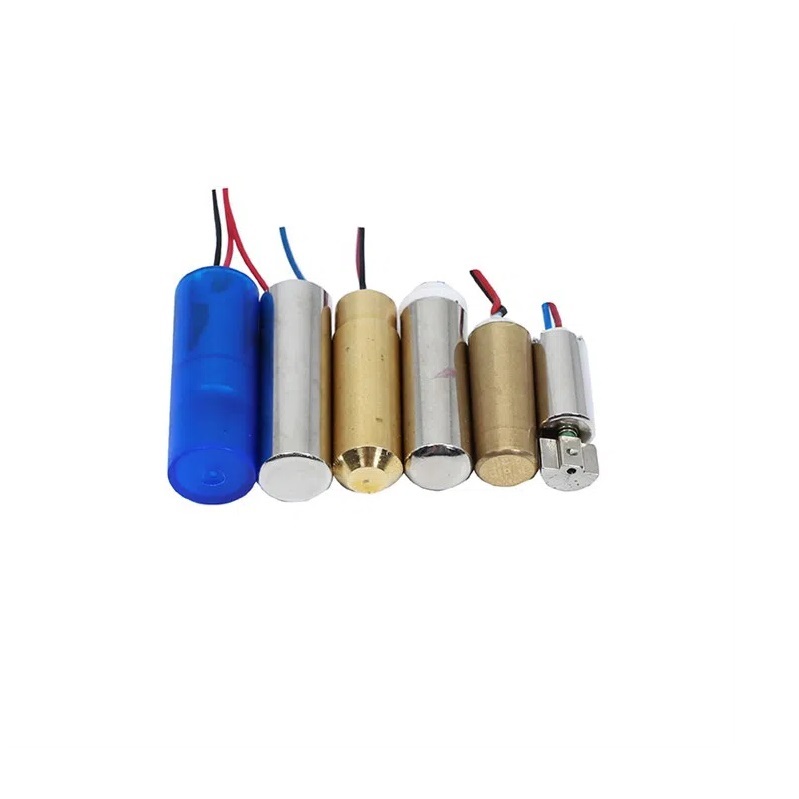

Encapsulated vibration motor 8000±2000 RPM

This 7mm electric waterproof motor essentially consists of an eccentric rotating mass vibration motor, housed in a metal casing. It belongs to our encapsulated series vibration motor. Encapsulated vibration motors are designed to be over molded with low temperature/pressure plastics to make them fully watertight, or seal them for use in harsh (e.g. corrosive) environments. They essentially consist of an eccentric rotating mass vibration motor, housed in either a plastic or metal casing. All our encapsulated vibration motors are based on a coreless design.

Features:

1. Best Electrical performance
2. High Product Performance
3. Low noise High efficiency
4. Long lifespan

Specifications:

1. Operating Voltage: 1.0-4.0 V DC
2. Starting Voltage: ≤1.0 V DC
3. Stall Current: ≤150 mA
4. Starting Current: ≤130 mA
5. Rated Current: 70 mA Max
6. Rated Speed: 8,000±2,000 rpm
7. Rated Voltage: 3.0 VDC
8. Overall Length: 22.05
9. Length of motor body: 16.6
10. Diameter: 7.0

Package Includes:

1 x Encapsulated vibration motor
