ESP WROOM 32 MCU Module WITHOUT BLE

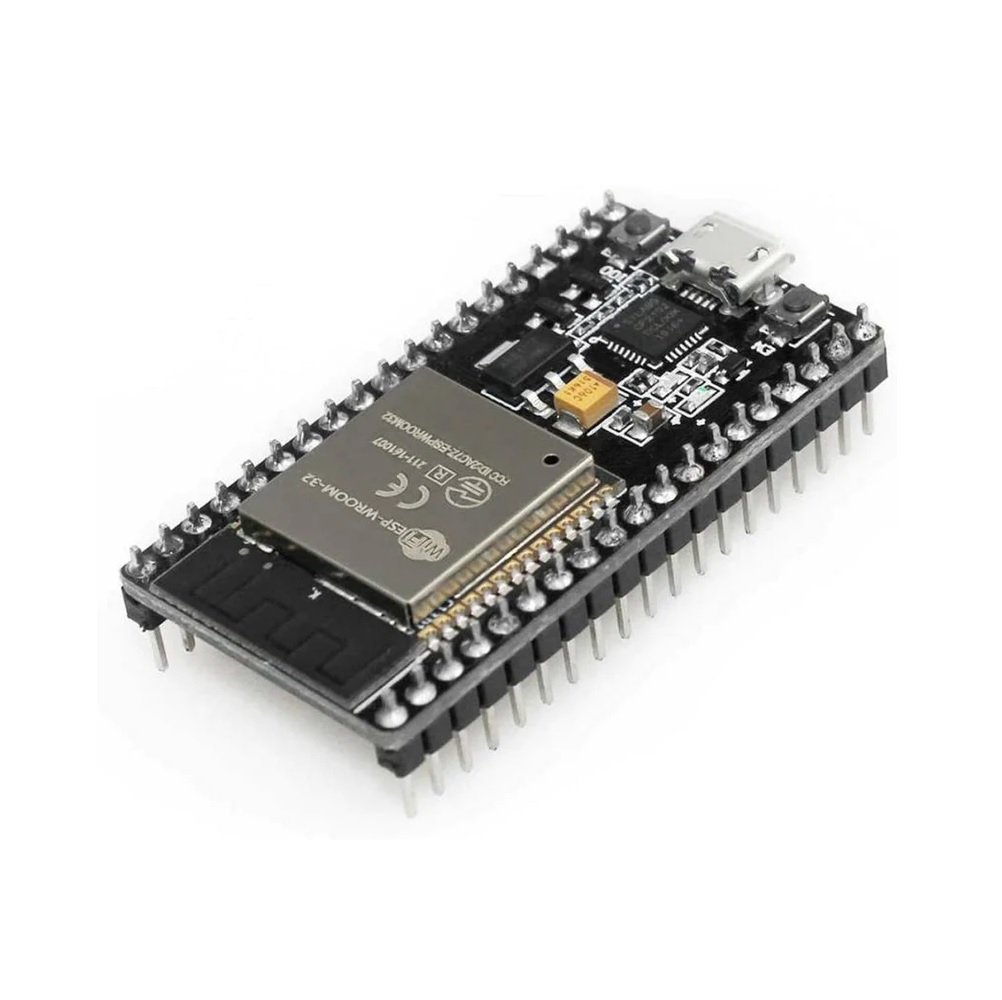

ESP32 Development board is based on the ESP WROOM32 WIFI Module.It’s a low-footprint, minimal system development board powered by the latest ESP-WROOM-32 module and can be easily inserted into a solderless breadboard.

It contains the entire basic support circuitry for the ESP-WROOM-32, including the USB-UART bridge, reset- and boot-mode buttons, LDO regulator and a micro-USB connector. Every important GPIO is available to the developer.

Applications:

1. Universal low power IoT sensor hub.
2. Home automation.
3. Universal low power IoT recorder.
4. Mesh network.
5. Video streaming of the camera.
6. Industrial wireless control

Features:

1. Small volume, easily embedded to other products
2. Strong function with support LWIP Protocol, Freertos
3. Supporting three modes:  AP, STA, and AP+STA
4. Supporting Lua program, easily to develop
5. Includes CP2102 USB-UART bridge

Specifications:

1. Model: ESP WROOM 32 MCU
2. Processor: Single or Dual core Tensilica Xtensa 32-bit LX6
3. Operating voltage (v): 2.3 ~ 3.6
4. Operating current (mA): 80
5. Clock Frequency (MHz): 80 ~ 240
6. Flash memory (MB): 4
7. Data Rate (Mbps): 54
8. SRAM Memory (KB): 512
9. BLE (Bluetooth Low Energy): Without (BLE)
10. Operating temperature: -40 °C – 85 °C
11. Dimensions: 5 x 2.5 x 1.5mm
12. Weight: 9g

Packages Includes:

1 x ESP WROOM 32 MCU Module WITHOUT BLE
