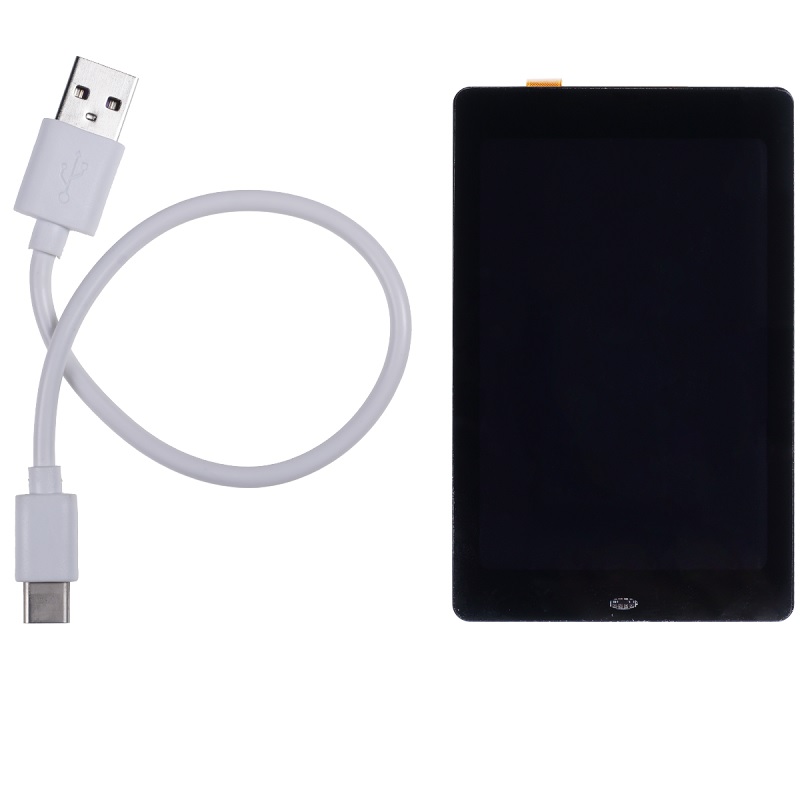

ESP32 Development board WT32-SC01

WT32-SC01 is an ESP32 Development board with a 3.5-inch colour touch screen. The touch screen enables a new way of interacting with the ESP32. The board is equipped with a graphical user interface (GUI) firmware, which supports graphical drag-and-drop programming and helps users develop a customized control platform. WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI Flash and 8MB PSRAM. By using the expansion interfaces on both sides of the development board, developers can customize the use of functions such as button operation, voice control, and camera operation, which greatly shortens the user’s development cycle.

Getting started with ESP32 Development board WT32-SC01

Hardware Overview:

1. ESP32-WROVER-B module
2. Capacitive touchpad interface
3. LCM display interface
4. Power management
5. Power switch
6. Reset Button
7. USB Type-C interface
8. Expansion board interface
9. Power indicator
10. UART communication indicator

Features:

1. Highly integrated ESP32-WROVER-B module with low power consumption
2. 3.5-inch 320×480 capacitive 2-point multi-touch screen for easy interactions
3. Easy to program using the graphical drag-and-drop programming
4. Wireless connectivity with Wi-Fi and BLE
5. Customize functions such as button operation, voice control, and camera operation through the expansion interfaces

Package Includes :

1 x ESP32 Development board WT32-SC01
