ExpressLRS RX24T 2.4G Receiver

Linking Binding steps:

– After the receiver is connected to the flight controller, connect the USB to power the flight controller. After inserting the USB for the first time, disconnect the USB as soon as the LED on the receiver turns off. Repeat the operation twice, when the USB is inserted for the third time, the LED will start to flash double, and the receiver will enter the code matching mode.

– After the 2.4G ELRS tuner module and the remote control are correctly connected, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.

– After the binding is successful, the LED on the receiver will become steady on, and the telemetry signal can be received at the same time.

Indicator status:

1. Double flash: code matching mode
2. Slow flashing: No transmission signal is received
3. Steady on: receive the transmit signal
4. Fast flashing: WIFI upgrade mode

Features:

1. Small in size
2. Easy to  handle
3. Easy to install
4. Use in Helicopters

Specifications:

1. Brand Name: JHEMCU
2. Item Name: RX24T RC Receiver
3. Model: RX24T
4. Weight: 0.6g(without antenna)
5. Size: 11 x 18 x 3 mm
6. 2.4G ISM type
7. ESP8285 MCU
8. SX1280IMLTRT RF
9. Frequency range: 2400 MHz To 2500 MHz
10. Maximum receiving refresh rate: 500Hz
11. Minimum receiving refresh rate: 25Hz
12. Working voltage: 5V
13. Peak gain: 3.16dB
14. RX24T: Half-wave dipole omnidirectional T-shaped antenna

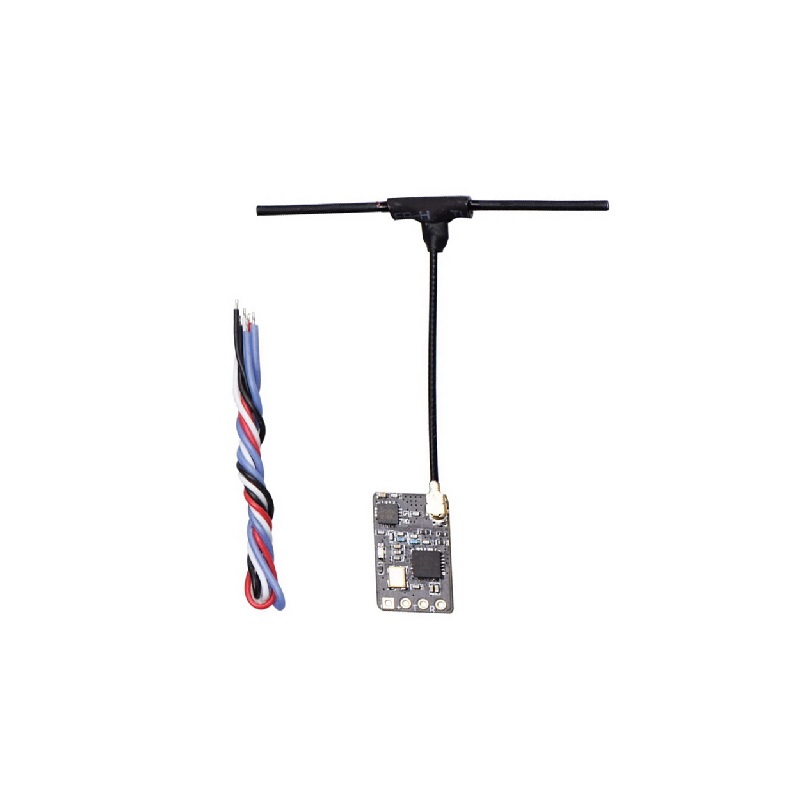

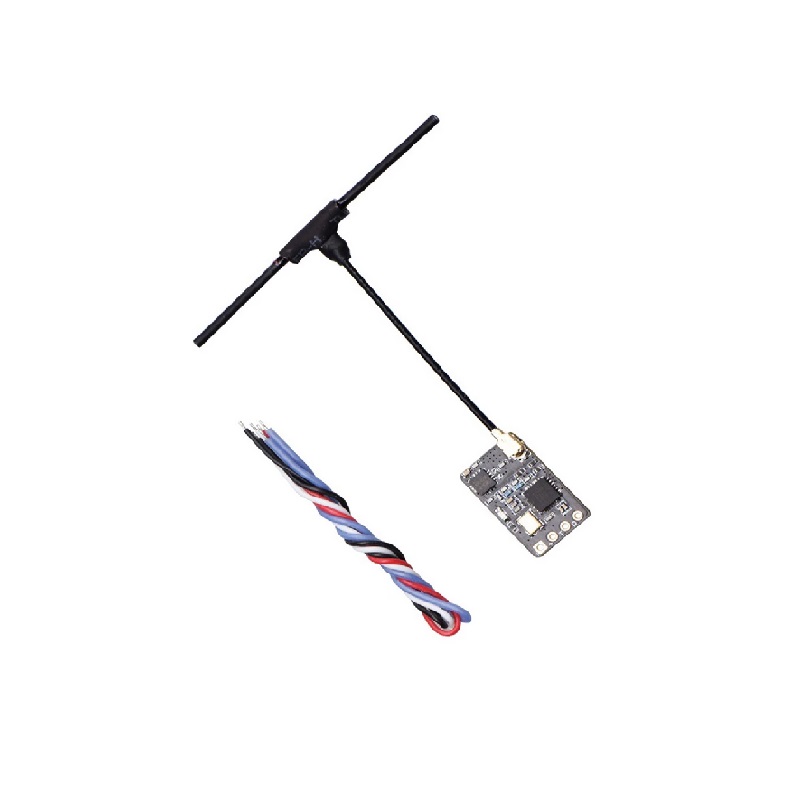

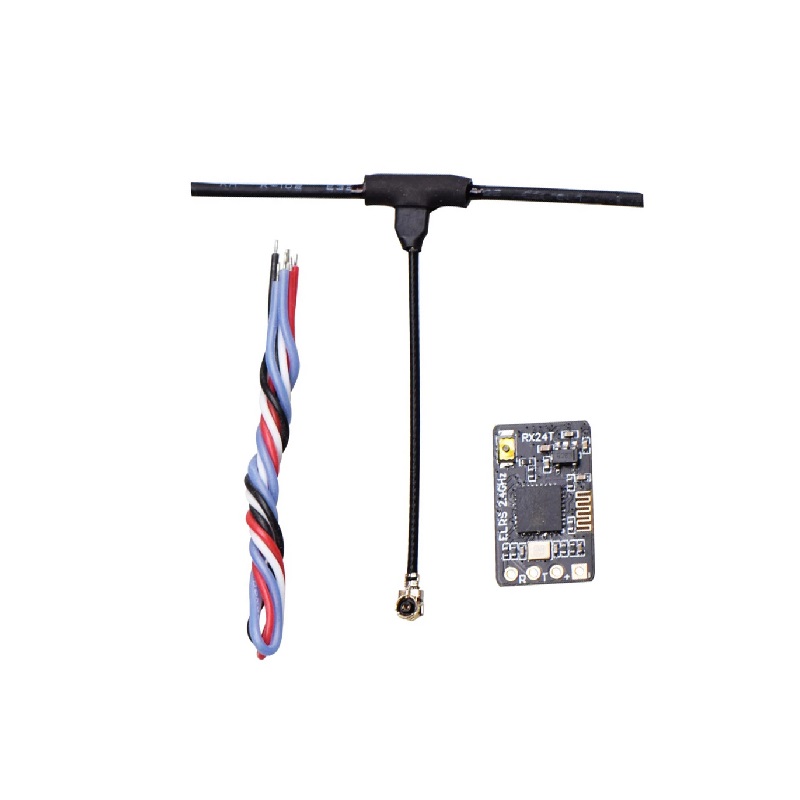

Packages Includes:

1 x RX24T RC Receiver
1 x T antenna
4 x Wire
