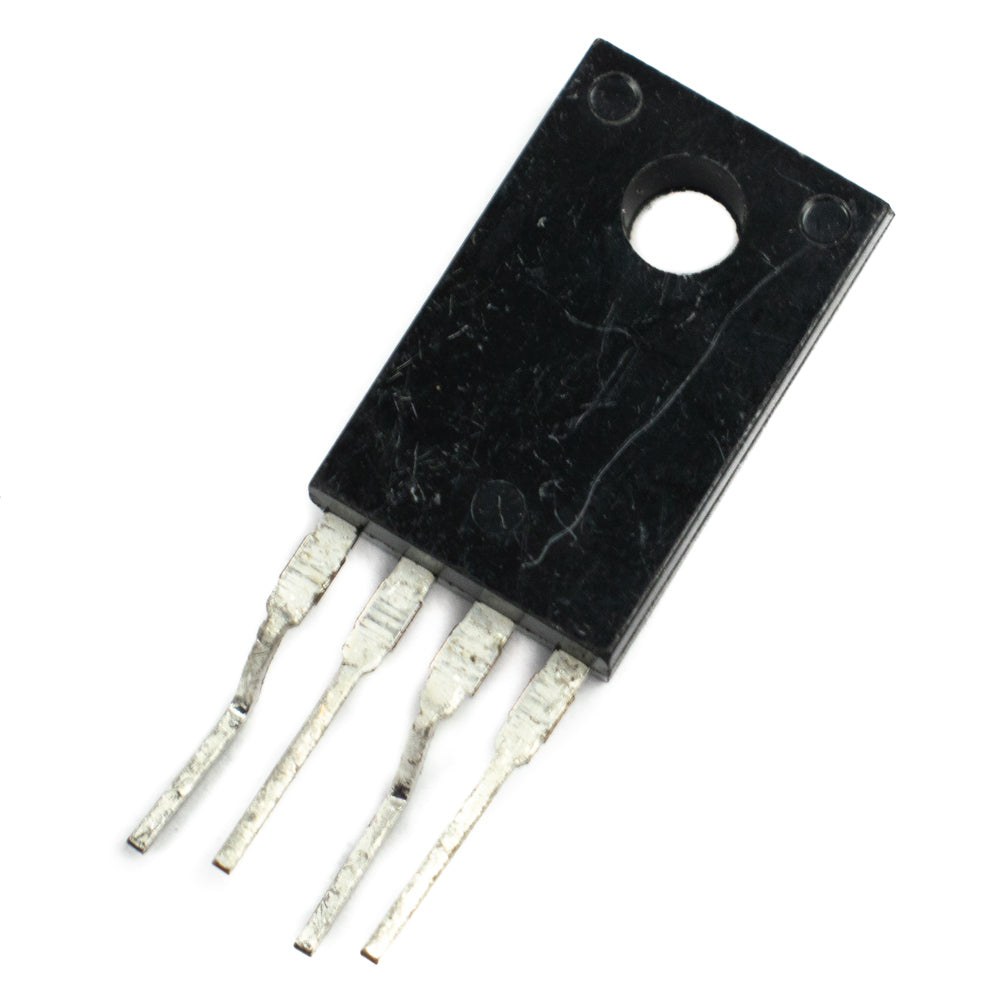

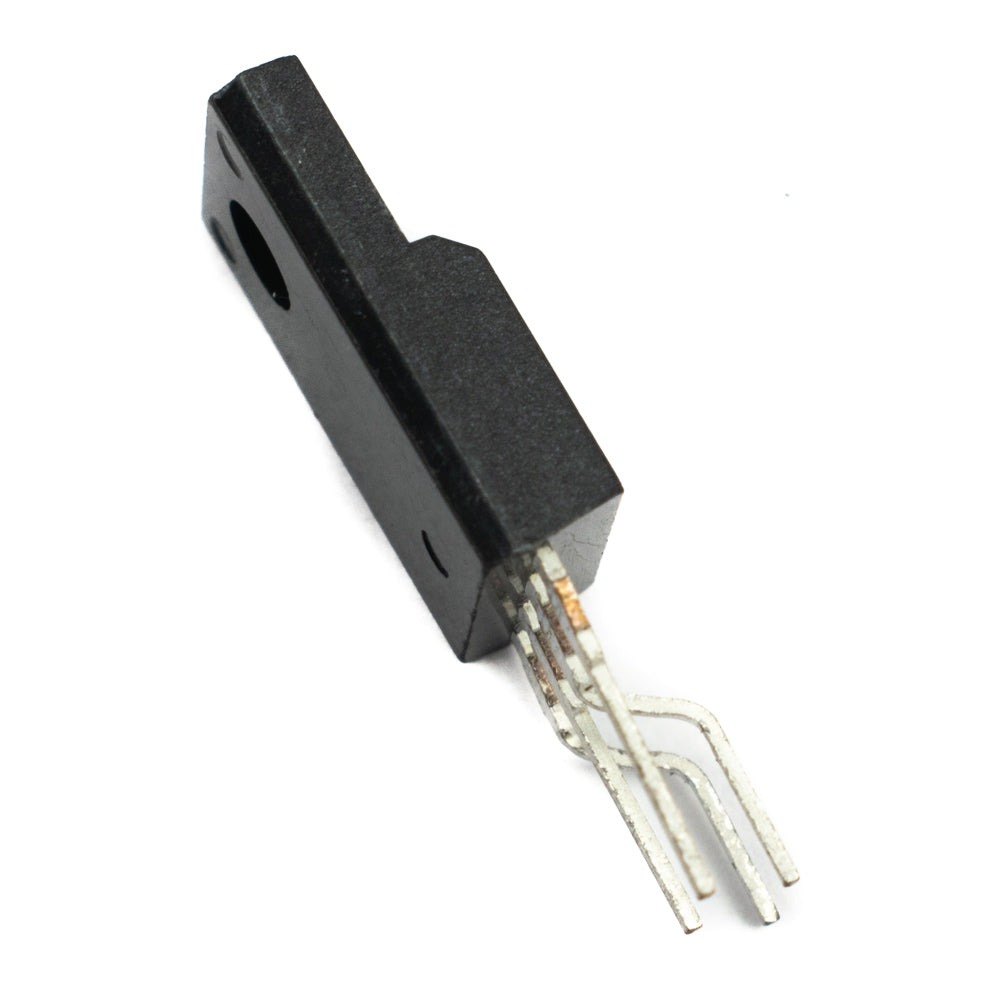

Fairchild 5L0380R Power Switch IC TO-220 Package

SKU: RZ24341397 Brand: ON Semiconductor Category: General

₹ 163.30

Out of Stock

Buy Fairchild 5L0380R Power Switch IC TO-220 Package online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 160.03
11 – 30	3%	₹ 158.40
31 – 50	4%	₹ 156.77
51 – 100	5%	₹ 155.14

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand ON Semiconductor

Category General

Subcategory General

SKU RZ24341397

The Fairchild 5L0380R Power Switch IC consists of a high voltage power SenseFET and a current mode PWM IC. Included PWM controller integrates the fixed frequency oscillator, the under-voltage lock-out, the leading edge blanking, the optimized gate turn-on/turn-off driver, the thermal shutdown protection, the overvoltage protection, and the temperature compensated precision current sources for the loop compensation and the fault protection circuitry.

Features:

Precision Fixed Operating Frequency (100/67/50kHz)
Low Start-up Current(Typ. 100uA)
Pulse by Pulse Current Limiting
Over Current Protection
Over Voltage Protection (Min. 25V)
Internal Thermal Shutdown Function
Under-Voltage Lockout
Internal High Voltage Sense FET
Auto-Restart Mode

Applications:

SMPS for VCR, SVR, STB, DVD & DVCD
SMPS for Printer, Facsimile & Scanner
Adaptor for Camcorder

Datasheet

Specifications

Model	5L0380R
Brand	Fairchild
Drain-Gate Voltage (VDS)	650V
Gate-Source Voltage (VGS)	±30V
Continuous Drain Current	3A to 2.4A
Pulsed Drain Current	-27A
Storage Temperature Range	-55°C~150°C
Operating Ambient Temperature	-40°C~85°C
Package	TO-220
Country of Origin	China
