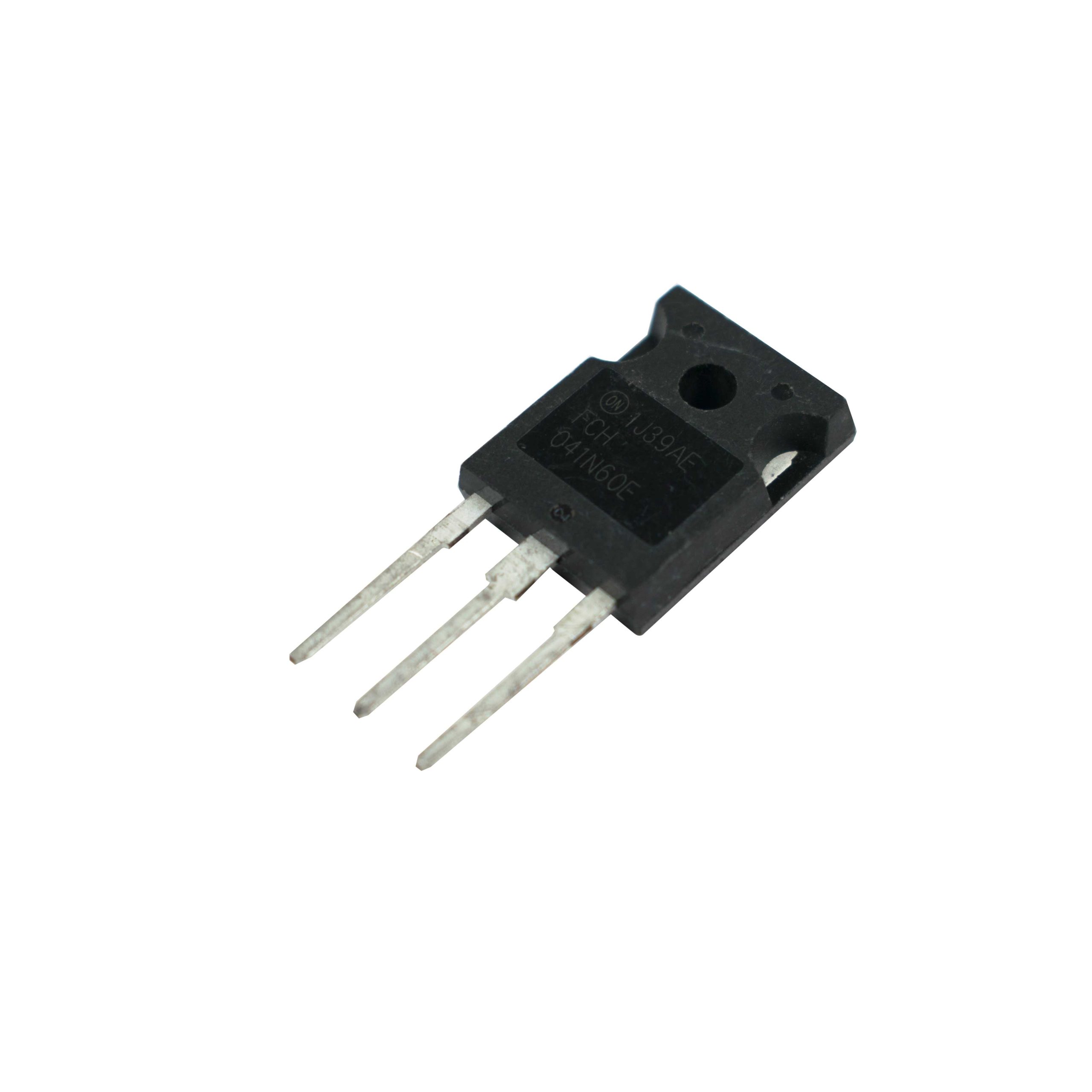

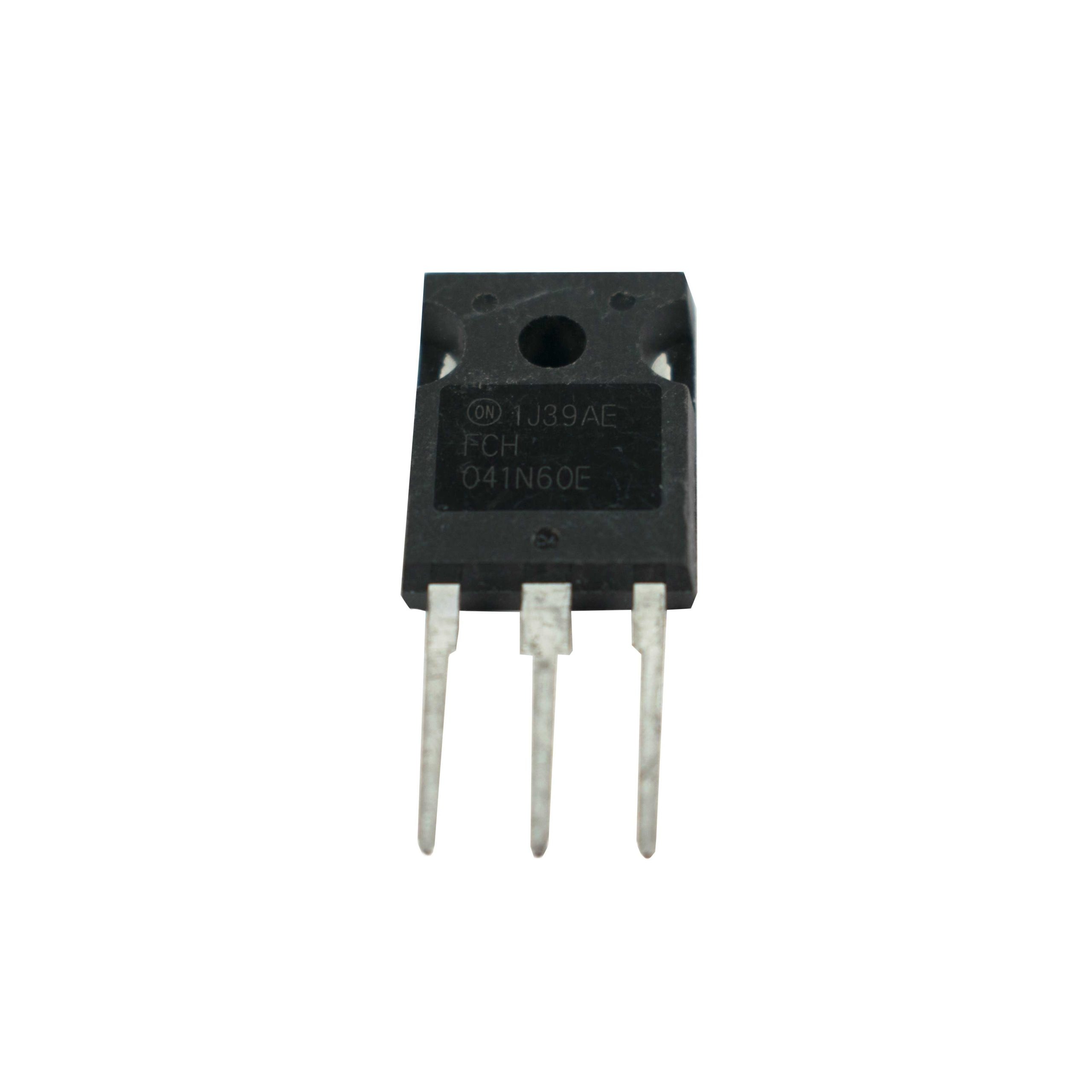

Fairchild FCH041N60- MOSFET 600V, 76A, TO-247 Package

SKU: RZ24340240 Brand: ON Semiconductor Category: General

₹ 387.55

Out of Stock

Buy Fairchild FCH041N60- MOSFET 600V, 76A, TO-247 Package online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 379.80
11 – 30	3%	₹ 375.92
31 – 50	4%	₹ 372.05
51 – 100	5%	₹ 368.17

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand ON Semiconductor

Category General

Subcategory General

SKU RZ24340240

A metal–oxide–semiconductor field-effect transistor (MOSFET)is a field-effect transistor (FET with an insulated gate) where the voltage determines the conductivity of the device. SuperFET II MOSFET is a brand-new high-voltage super-junction (SJ) MOSFET family that uses charge balance technology to achieve remarkable low on-resistance and low gate charge performance. This technology is designed to reduce conduction loss, improve switching performance, increase dv/dt rate, and increase avalanche energy. As a result, SuperFET II MOSFETs are ideal for switching power applications such as PFC, server/telecom power, FPD TV power, ATX power, and industrial power. The enhanced body diode reverse recovery performance of the SuperFET II MOSFET can eliminate an additional component and improve system reliability.

Features

100% Avalanche Tested
RoHS Compliant

Specifications

Model	FCH041N60
Brand	Fairchild
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id)	76A (at Tc=25°C)
RDS(on)	36 mΩ (at VGS = 10 V, ID = 38 A)
Ultra low gate charge Qg(tot)	277 nC (at VGS = 10V, ID = 38 A)
Low Effective Output Capacitance (Typical Coss(eff.)	748pF
Package	TO-247
Country of Origin	China
