HLK-LD2410B Test Kit - 24GHz 6 Meter Ranging Human Presence Radar Sensor Module | LD2410 Respiration and Heartbeat Monitoring Non-contact Induction Smart Sensor Module

HLK-LD2410B is a high-sensitivity 24GHz human presence status sensing module developed by Hi-Link Electronics. It utilizes FMCW frequency-modulated continuous wave technology to detect human targets within a defined space. The module employs radar signal processing and a human body induction algorithm, enabling precise detection of both moving and stationary human bodies. Additionally, it calculates auxiliary data such as target distance.

This module is primarily designed for indoor applications, providing real-time detection of human presence within a range of up to 5 meters with a distance resolution of 0.75m. It features a visual configuration tool that allows easy customization of sensing distance, sensitivity, and delay time to suit various application requirements. With support for GPIO and UART output, it offers plug-and-play functionality, making it adaptable for different smart scenarios and terminal products.

Features:

• Plug and play, easy assembly
• Large detection angle, coverage up to ±60 degrees
• Accurate identification within the interval, supports division of the sensing range
• Multi-level intelligent parameter adjustment via Bluetooth or serial port
• Visual debugging and configuration tools
• Compact size, minimum dimensions of 7mm x 35mm
• Supports various installation methods
• Wide voltage power supply (5-12V)
• Cost-effective

Specifications:

Click Here for Data Sheet.

Applications:

• Human body sensor light control
• Human body induction wake-up of advertising screens and other equipment
• Life safety protection, including UV lamp work protection
• Automatic detection and alarm of dangerous places
• Smart home appliances for energy-saving purposes
• Intelligent security, including intrusion detection and identification

Package Includes:

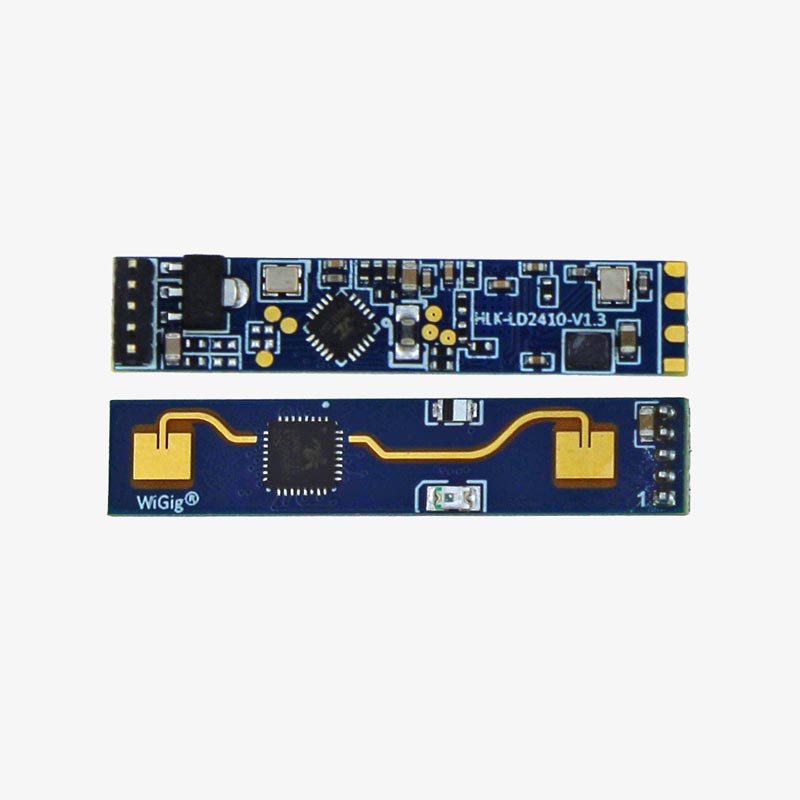

1 x HLK-LD2410B Module

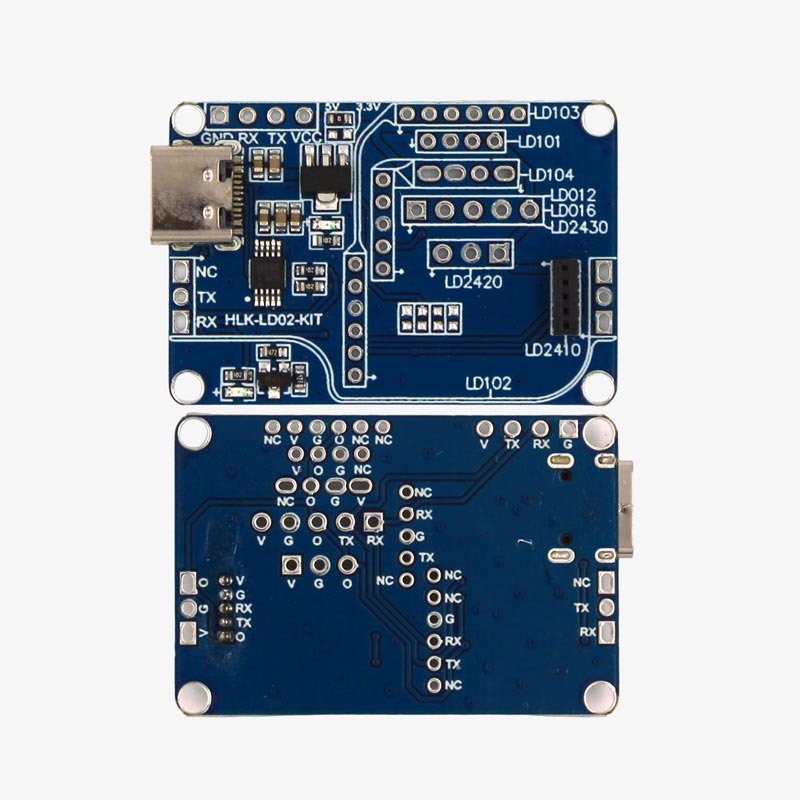

1 x Radar Test Board (with serial port chip CH340)

1 x USB Cable (Type C)
