IMAX B6 80W 6A Balance Charger/Discharger for LiIon, LiPo, LiFe , NiCd and NiMH - (1-6 Cells)
Buy IMAX B6 80W 6A Balance Charger/Discharger for LiIon, LiPo, LiFe , NiCd and NiMH - (1-6 Cells) online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.

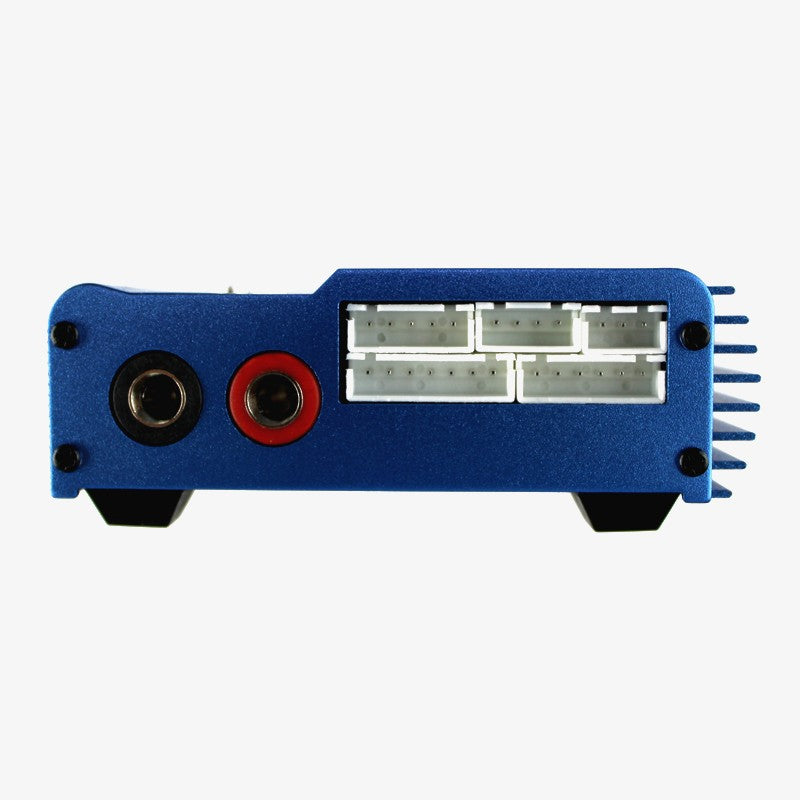

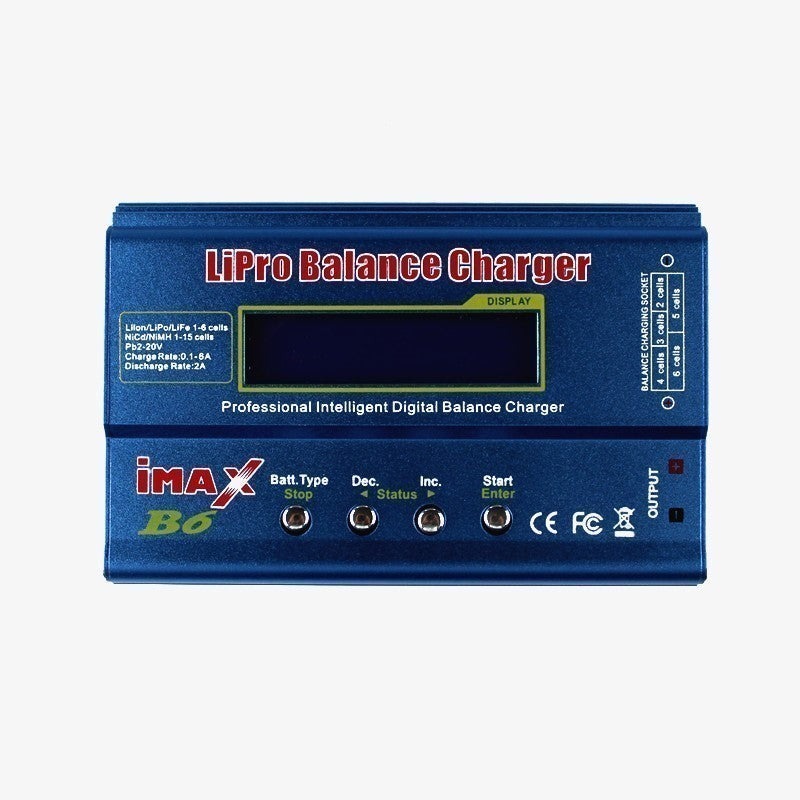

The IMAX B6 80W 6A Charger/Discharger 1-6 Cells is a very advanced charger, able to charge, balance and discharge LiIon, LiPoly, LiFe (A123), NiCd and NiMH batteries. It is microprocessor controlled just like all the best chargers and will balance the individual cells in you Li-XX batteries.
It will charge from 0.1 to 6.0A and is capable of charging packs up to 6S packs. It’s feature input voltage protection so as not to flatten your car battery at the field and will also storage charge you pack for when you are not using them. You can power it with any power supply delivering from 11~18V so it is very flexible.
Note: Power supply not included. Also, JST-XH Charging plug is not included, you have to purchase it separately
Specifications:
| DC Input Voltage Range (V) |
11 ~ 18 |
| Output Power(Watt) |
80W (max) |
| Charge Current Range (A) |
0.1 ~ 6 |
| Maximum Discharge Power (W) |
5 |
| Dischage Current Range (A) |
0.1 ~ 1.0 |
| Drain Current for Balancing Li-Po's (mA/Cell) |
300 |
| Li-ion/Po cell count |
1 ~ 6 |
| NiCd/NiMH cell count |
1 ~ 15 Cells |
| Pb battery voltage |
2 ~ 20 |
| Dimensions (mm) LxWxH |
133 x 87 x 33 |
| Weight (gm) |
277 |
