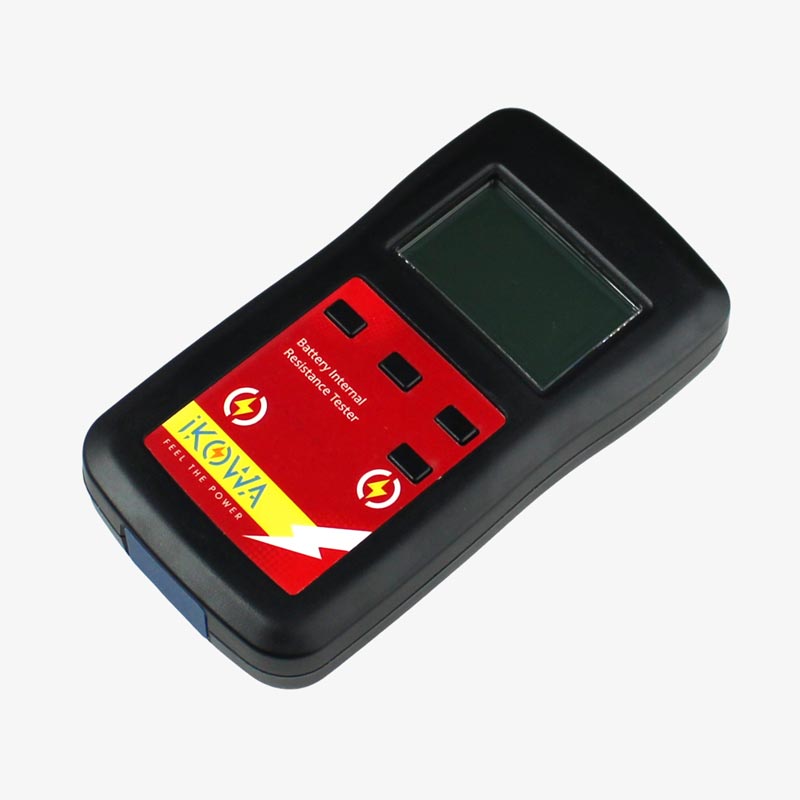

Internal Resistance (IR) Tester for Lithium Battery - YR1030 (Low Cost)

SKU: RZ24332383 Category: Batteries & Power

₹ 6,074.30

Out of Stock

Buy Internal Resistance (IR) Tester for Lithium Battery - YR1030 (Low Cost) online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 5,952.81
11 – 30	3%	₹ 5,892.07
31 – 50	4%	₹ 5,831.33
51 – 100	5%	₹ 5,770.59

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category Batteries & Power

Subcategory Batteries (General)

SKU RZ24332383

This is a low cost IR Tester for Lithium battery, suitable for single battery or battery pack with voltage no more than 200V

Specification:

Vapcell YR1030 Internal resistance tester is a great tester. Portable, easy, efficient, precise to test many types of batteries .

It can test lead acid, li-ion, Lipo, Lifepo4, alkaline cell ,dry cell, nickel hydrogen, nickel cadmium, coin cell, etc.

Safety instructions

The maximum input voltage on the internal resistance and voltage range measurement does not more than DC 30V. Under any conditions can not enter the AC signal. The charging port uses the MICRO-MINI charging port.

Measuring the battery IR

Normal mode

1. Connect the test lines and turn on the power. Make sure that the measured battery voltage does not exceed the instrument upper limit of 28V.

2. The two test pens(each pen has two lines and probes) were connected to the positive and negative battery. PS: Red and white line is connect the positive; black and white is connected negative.

3. wait to display stablely and read value.

Package Includes:

1 * Internal resistance tester

1* test line (red, white* black, white)

1* user manual

Model	Portable Battery Resistance Voltage Tester TOB-SM8124
Voltage testing range	0-1.999V, 2-19.99V, 20-199.9V
Voltage resolution ratio	1mV, 10mV, 100mV
Inner resistance testing range	0-199.9mΩ, 200-1999mΩ, 2000-20000mΩ
Accuracy	0.1mΩ, 1mΩ, 10mΩ
Operating temperature	-10-40℃
Suitable battery	Lithium battery, lithium pouch cell(Lithium polymer battery), Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.
Structure	LCD display testing results Simple operation with Button press
Notice	This machine can not test battery with voltage more than 200V, Please don’t test battery more than 200V. It will damage the machine. Guarantee that the battery positive and negative connection is right.
Dimension(LWH)	1307230mm
Weight	200g
