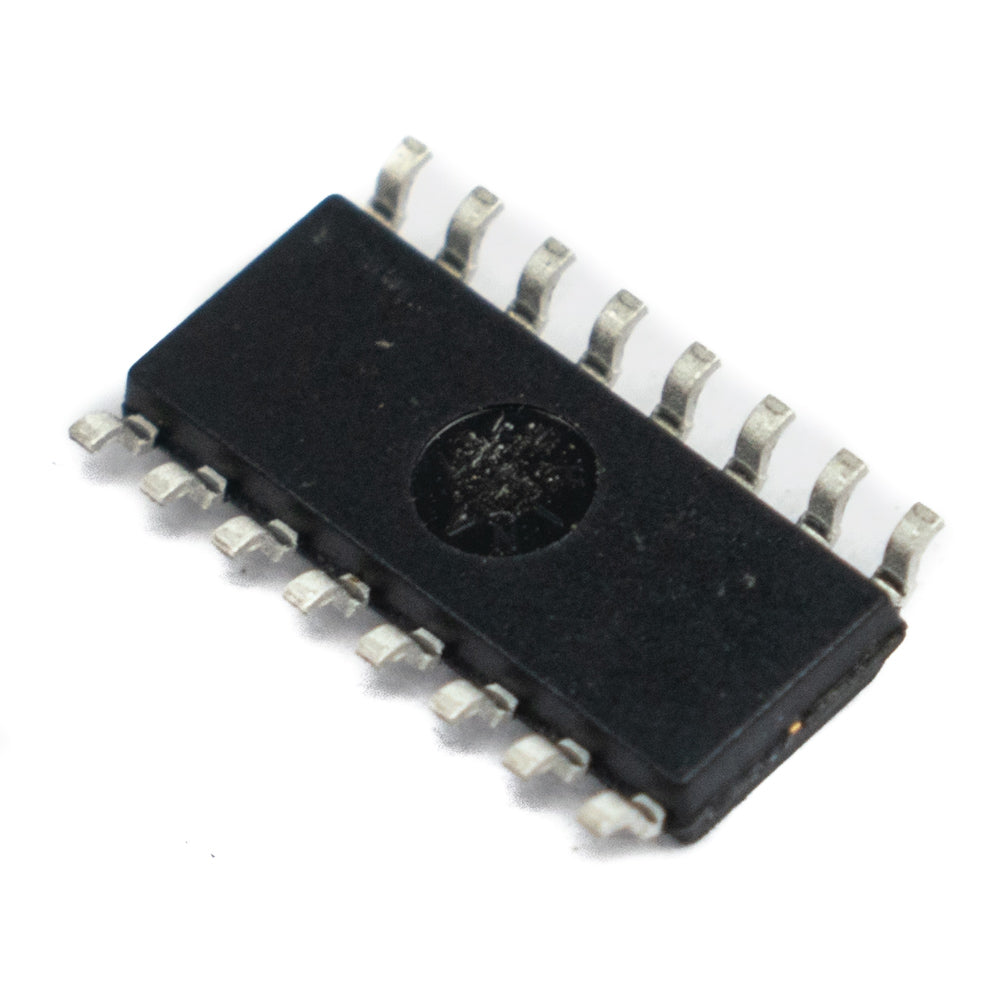

ISL83202 55V, 1A Peak Current H-Bridge FET Driver IC

The ISL83202 is a medium-frequency H-Bridge FET driver with a peak drive current of 1A (typ) that is intended for driving high- and low-side N-Channel MOSFETs in medium-voltage applications. The ISL83202, which is optimised for PWM motor control and uninterruptible power supply systems, offers simple and flexible bridge-based design. The ISL83202 is excellent for switching frequencies up to 200kHz, with typical input-to-output propagation delays as low as 25ns and a user-programmable dead-time range of 0.1s to 4.5s. The ISL83202's dead-time can be programmed using a single resistor. The ISL83202's four separate driver control inputs (ALI, AHI, BLI, and BHI) allow driving of any switch combination except those that would result in a shoot-through condition.

Features

• Independently Drives 4 N-Channel FETS in Half-Bridge or
• Full Bridge Configurations
• Bootstrap Supply Max Voltage: 70VDC
• Drives a 1000pF Load in Free Air at +50°C with Rise and Fall Times of 15ns (typ)
• User-Programmable Dead Time from 0.1 to 4.5us
• DIS (Disable) Overrides Input Control and Refreshes Bootstrap Capacitor when Pulled Low
• Input Logic Thresholds Compatible with 5V to 15V Logic Levels
• Shoot-Through Protection
• Undervoltage Protection

Applications

• UPS Systems
• DC Motor Controls
• Full Bridge Power Supplies
• Switching Power Amplifiers
• Noise Cancellation Systems
• Battery-Powered Vehicles
• Peripherals
• Medium/Large Voice Coil Motors
