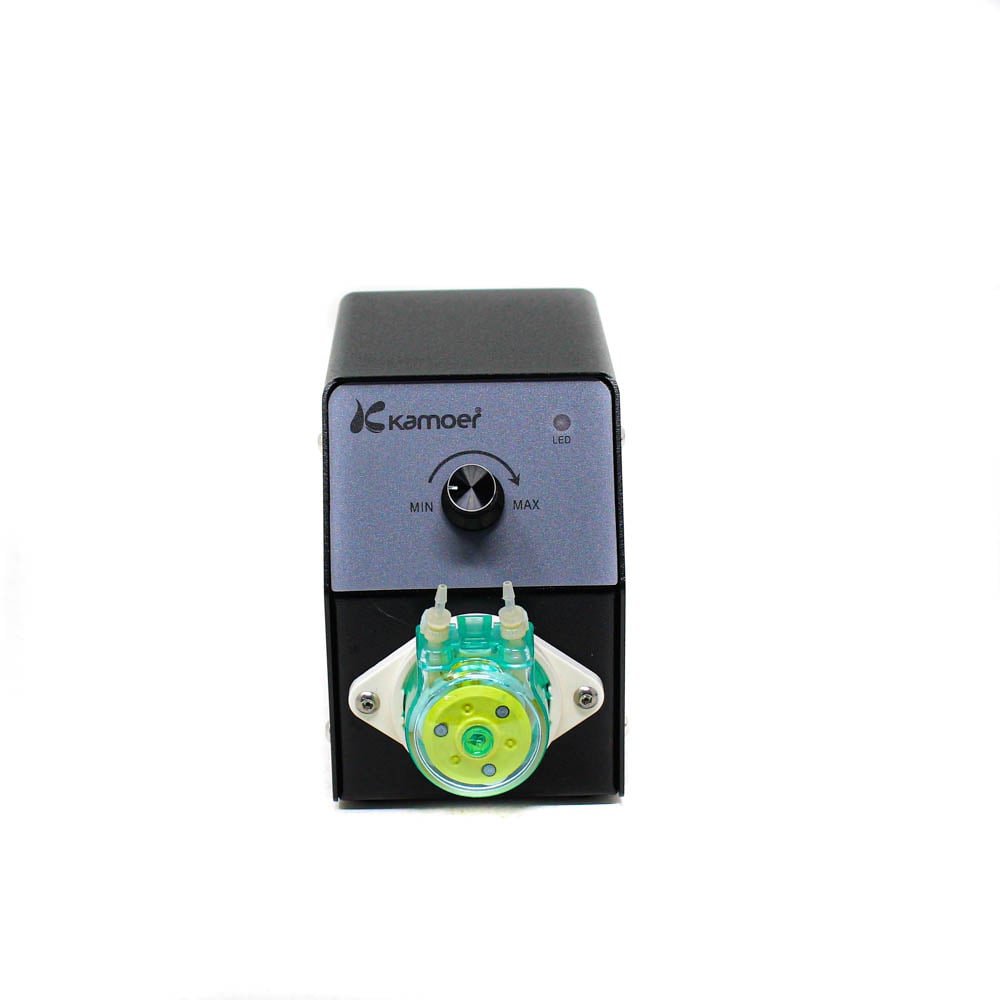

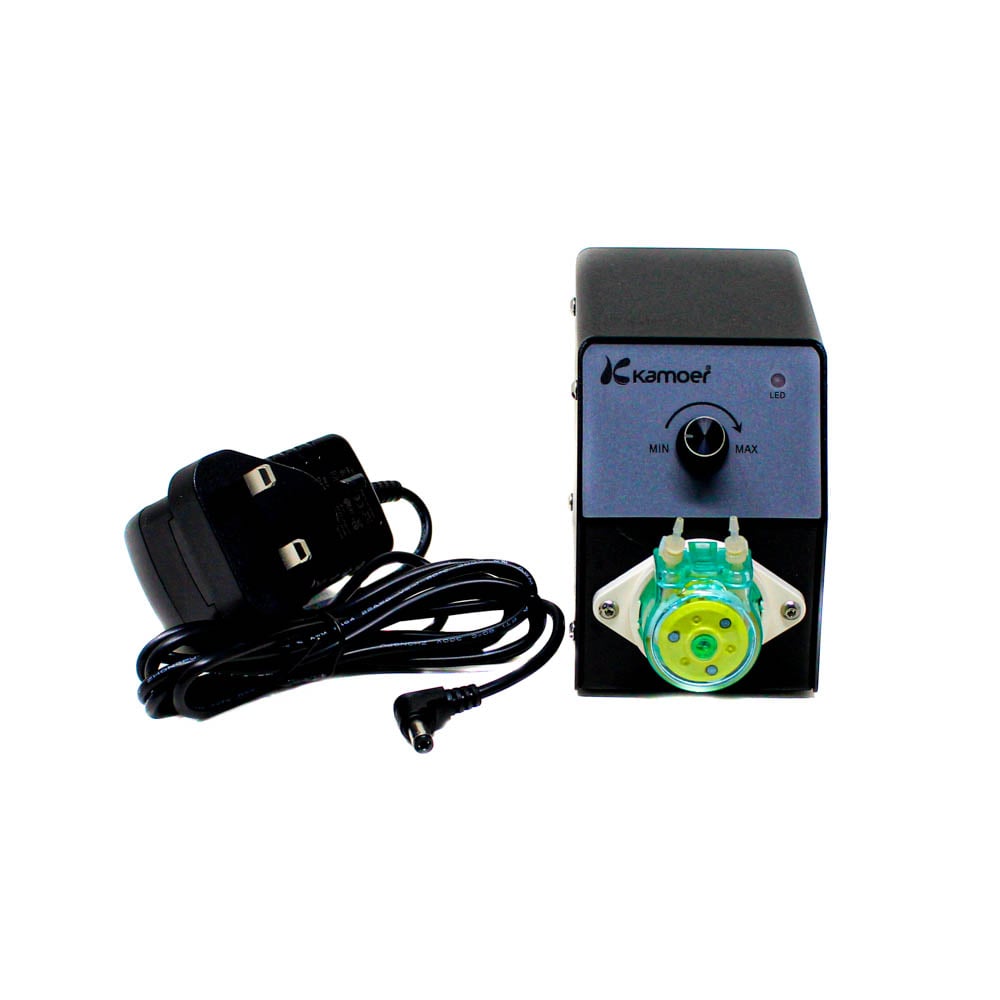

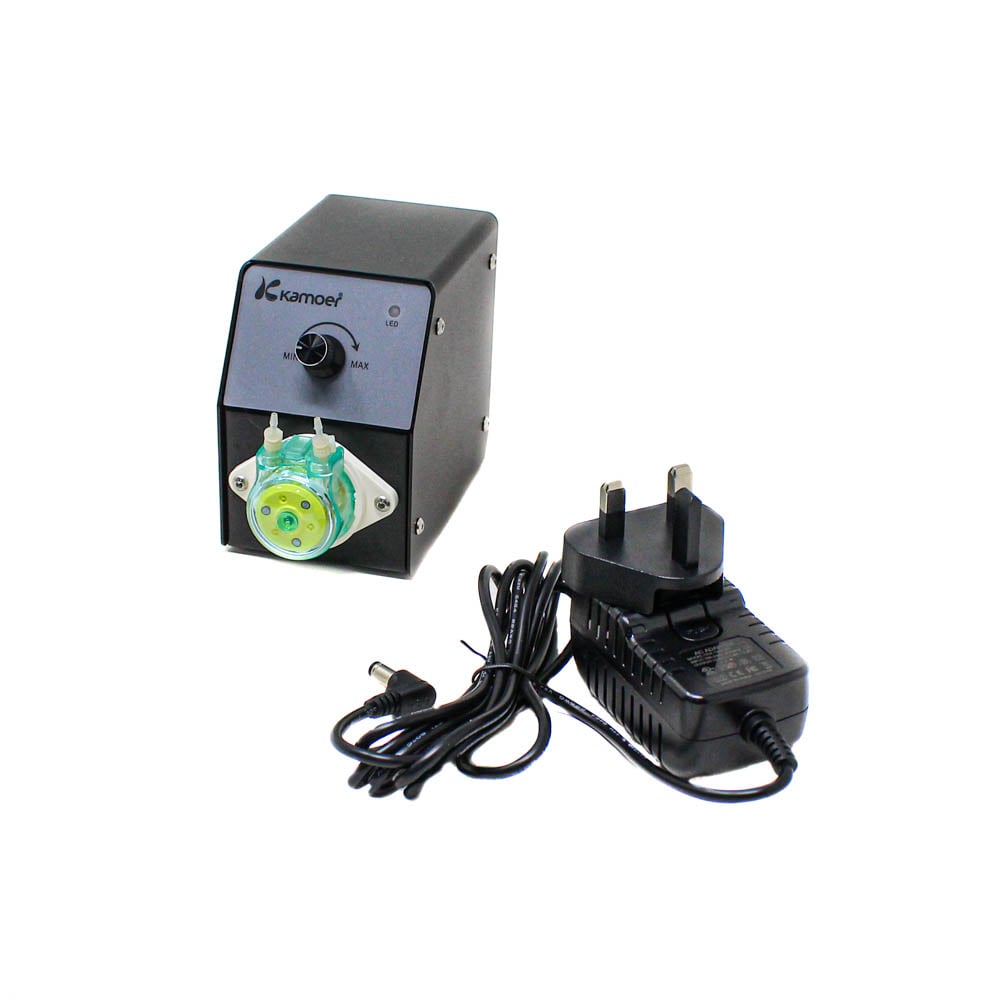

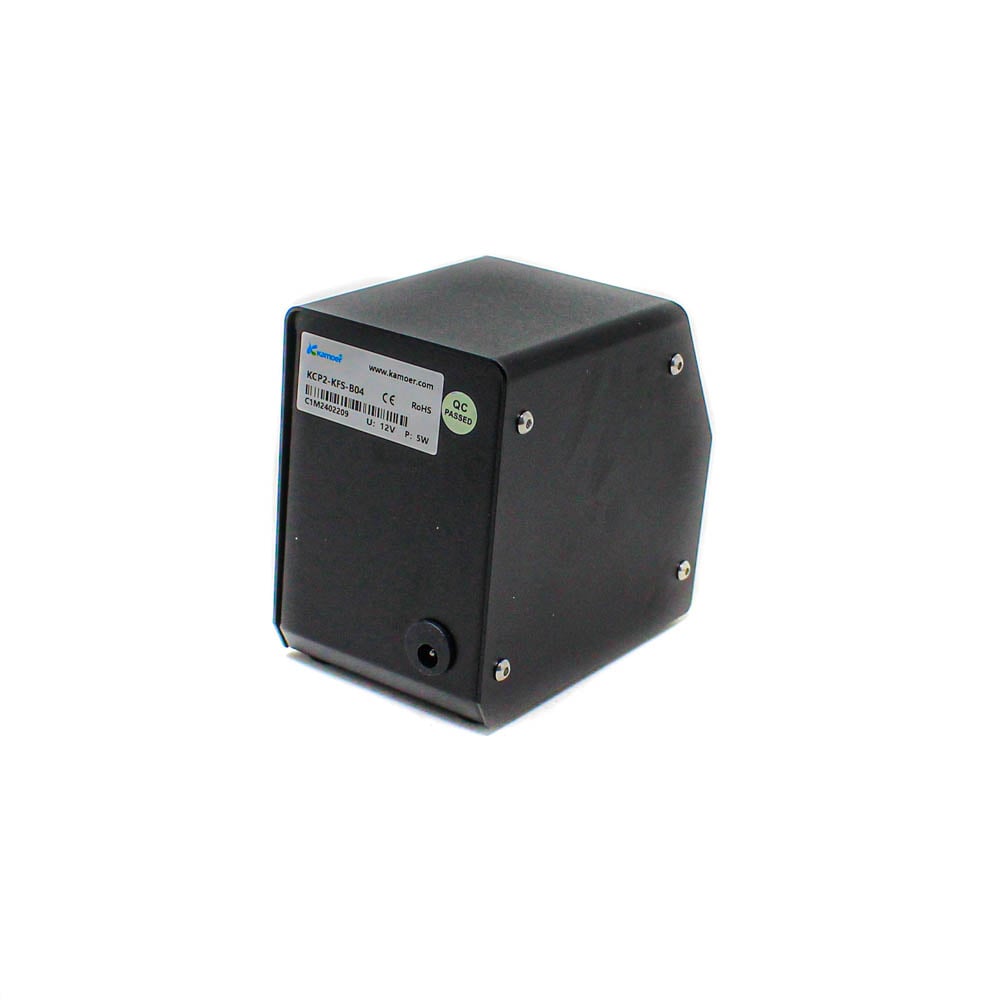

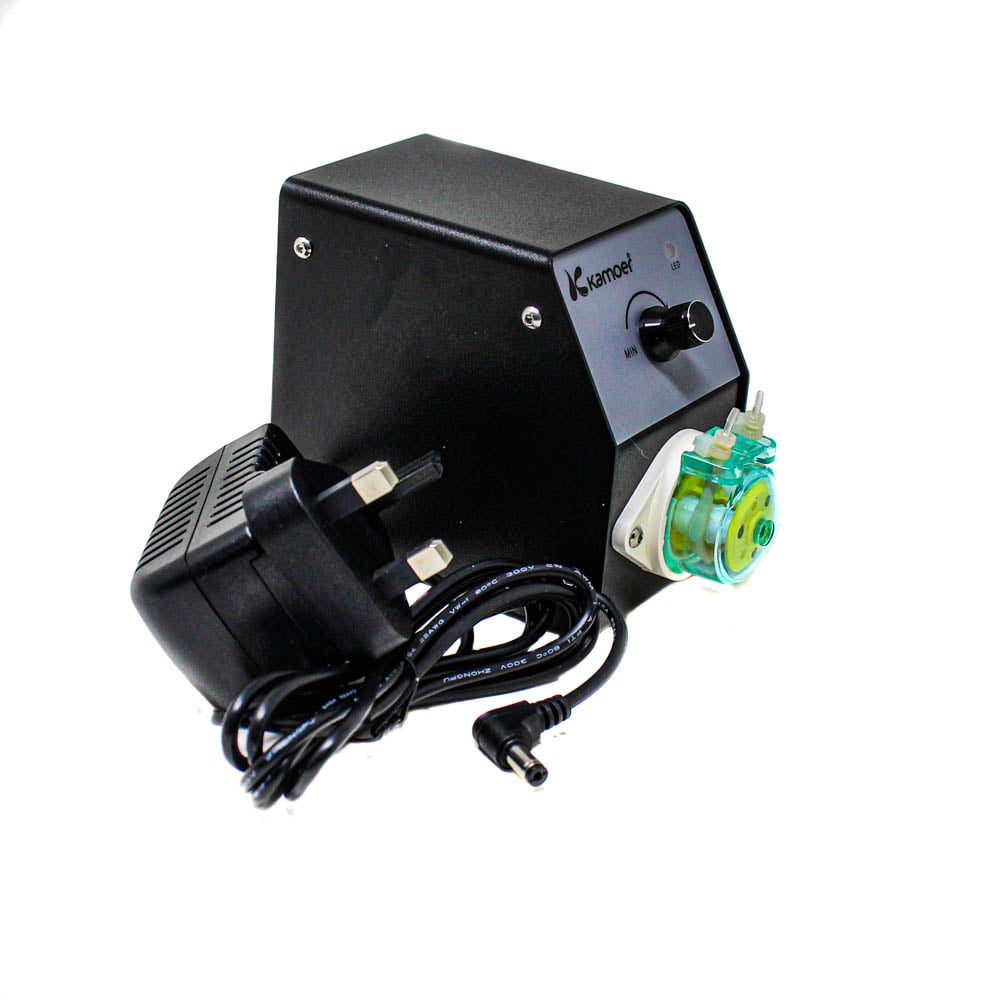

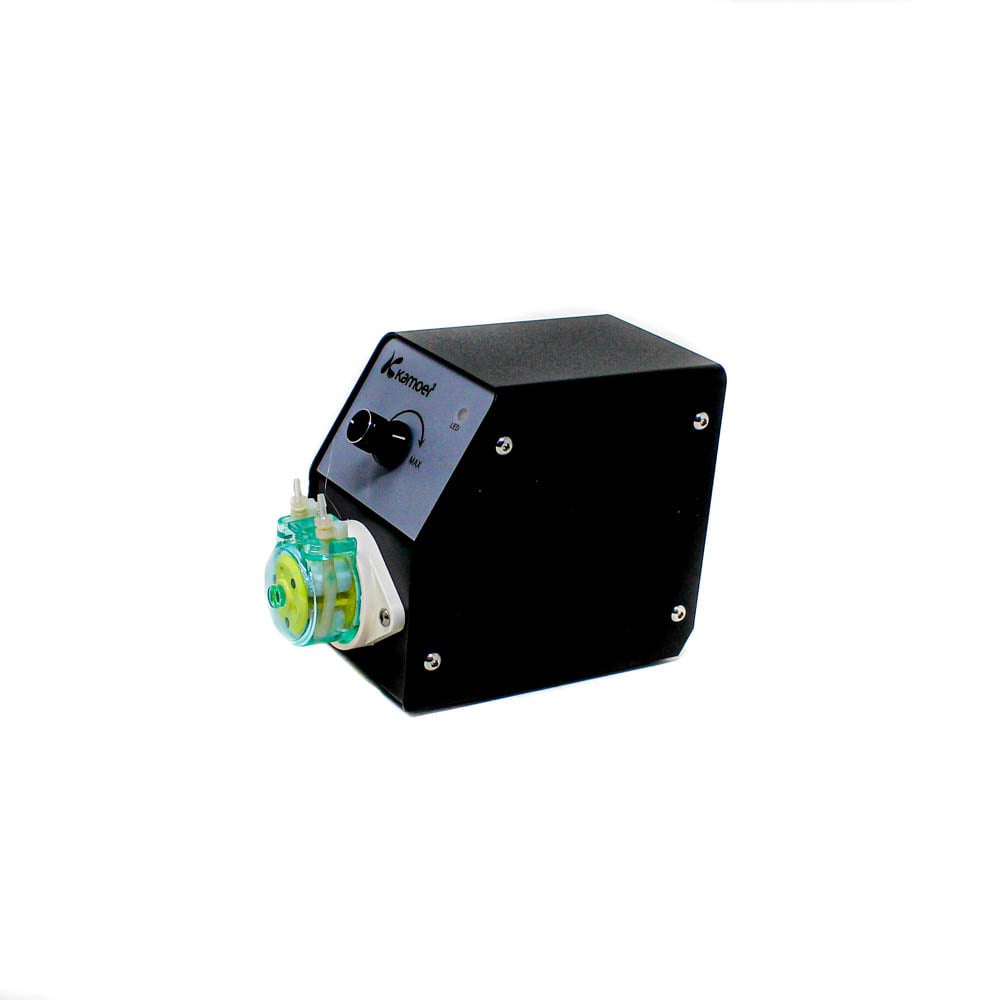

KCP2-KFS-S06 Kamoer Lab Pump 24V ＜1A – S06 – 50ml/min | Silicone tube 2.0*4.0mm

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squish a silicone tube to produce the pump-action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24V DC supply and can produce a flow rate of up to 360ml per minute. If speed control is required we suggest using a simple PWM signal.

Features:

1. High flow
2. High negative pressure
3. Easy to maintenance
4. Chemical stability
5. Long life
6. High repeatability

7. Working conditions: Temperature 0~40℃, humidity <80%

8. Pump tube selection: Silicone tube, imported Norprene® tube

9. Transmission mode: Planetary gear transmission, reduction ratio 1:8

10. Pump head: The upper cover is made of engineering plastics, the pump body

11. PA and gears are made of synthetic engineering plastics

12. Installation method: Straight plate and L plate

Specification:

1. Code: SO6
2. ID*OD(mm): 2.0×4.0
3. Materials: Silicon
4. Flow rate: 11~34 ml/min
5. Pump tube length: 175mm (exposed 49.5mm) Code-S

6. Working condition: 0-40℃ relative temperature<80%
7. Pulse: three rollers, low pulse
8. Pump head: Engineering Plastics
9. Weight: 270g( without power), 330g(with power)
10. Motor life: about 1000 hours
11. Working conditions: ambient temperature 0 – 40C
12. Material: Norprene® Food process tube for critical processing applications in the food, dairy and cosmetic industries. Compatible with virtually all commercial cleaners and sanitisers. Great resistance to general chemicals, acid, alkali and oxidizing agents, working temperature 59℃-135℃

Application:

1. Printing: transferring printing ink
2. Transportation: pumping the oil and other liquid
3. Aquarium: drawing water from tank, calcium response reaction
4. Scientific facility: a laboratory experiment
5. Animal disease experiment: blood transfer

Package Includes:

1 x KCP2-KFS-S06 Kamoer Lab Pump
