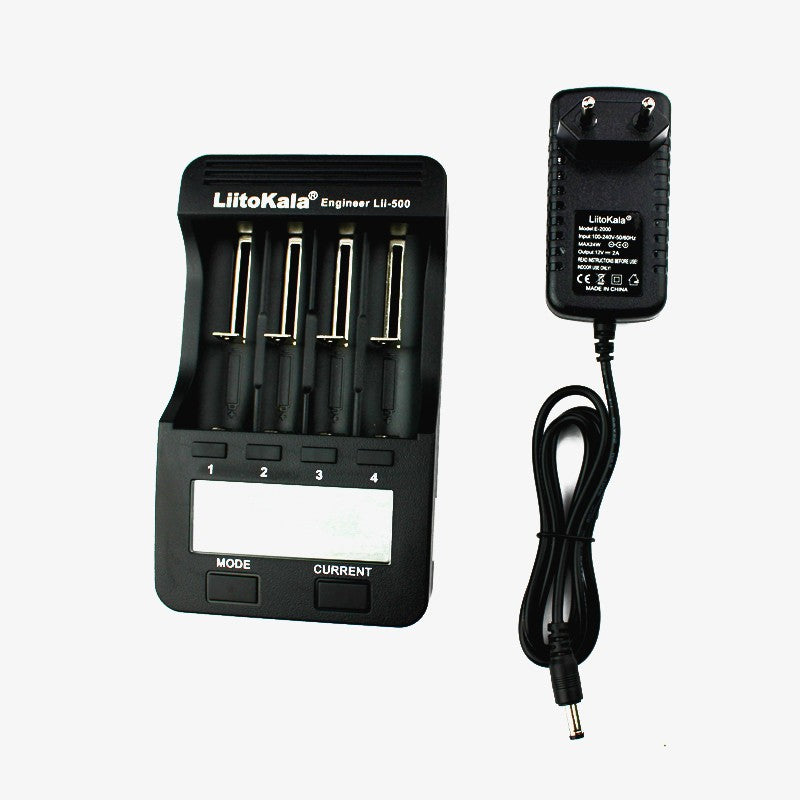

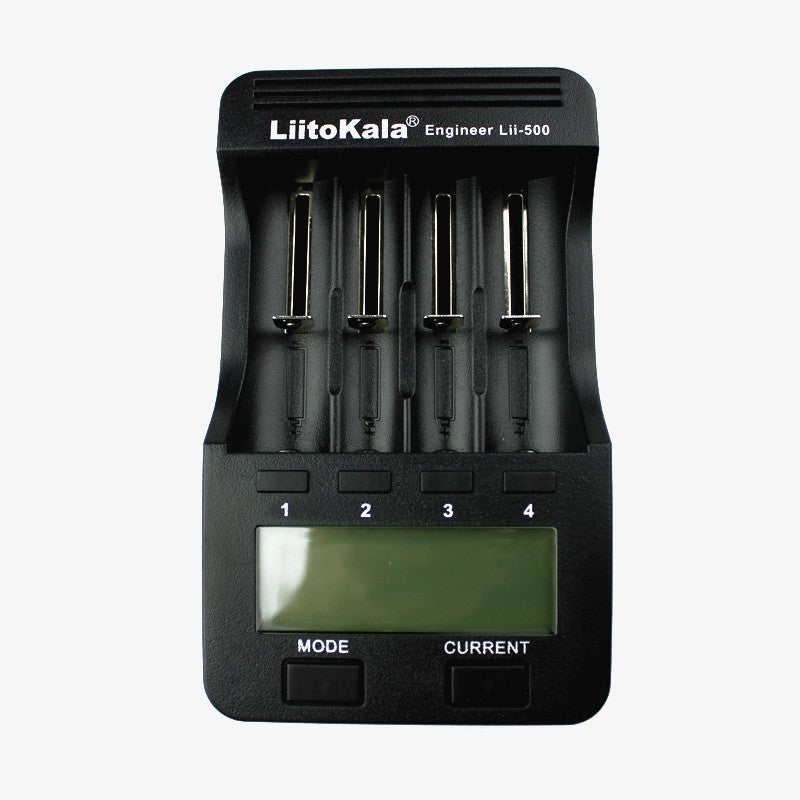

Lithium Battery Capacity Tester Liito Kala (Lii-500) for 18650,14500, 26650 Li-ion and NiMh Cells

Specifications:

1. DC Input voltage: 12V / 2.0A
2. LI-ION battery charging current: 4.2 V 300mA / 500mA / 700mA / 1000mA
3. NiMH battery charging current: 1.48 At 300mA / 500mA / 700mA / 1000mA
4. Rechargeable Battery Specifications: 18650.26650, 14500, AA, AAA, and others.
5. Discharge Current: 250mA, 500mA
6. USB Output: 5V --- 1000mA
7. Termination: Intelligent voltage monitoring
8. Size: 162 mm (length) * 96 mm (width) * 36 mm (height).

Characteristics:

1.4 kinds of charging current regulator (mA / 500mA / 700mA / 1000mA);

2.Various specifications (18650/26650 ...... / AA / AAA) into the battery charger;

3.The charger eliminates the use of a separate LCD screen, Voltage (V) Current (MA) time (H) Capacity (mAh) Resistance (MR) Options, E ... view;

4.Under the charge mode, 4 channel work independently, you can select different charging current for charging and hunchong lithium-ion batteries and nickel-metal hydride battery.

5.Under the Quick Test mode, 4 channels can quickly detect battery capacity, regardless of the lithium-ion batteries and nickel-hydrogen batteries, work independently. Rapid detection process of the battery capacity (1 category, 2 full) two steps

6.Neither the test mode, battery capacity is usually found three step process of (1 first charged, then discharged 2 and 3 refill), battery capacity detection process;

7.Charging and fast test / no test 3 modes can operate simultaneously; Independent set charge / fast detection capability / Normal capacity of detection;

8.Various protection functions: Overload and over discharge, short circuit, temperature, voltage of 0V function is activated, (& Delta; V and 0 & Delta; V), 1.65 B 2.2 B can not be charged, Intelligent recognition bad battery and reverse-battery detection protection.

9.With standard 5V / 1000mA USB output: 1 to 4 lithium batteries Lithium batteries USB output is completed, the product can not be nickel-metal hydride battery with USB output.

10.With special power adapter: DC Input voltage: 12V / 2A.

Description of keys:
1.The charger has six buttons, key mode (mode), the current selection key (NAP), and view the data independently selected key (1234), the use of simple and convenient

2.Hold down the Mode key in any case, and for 3 seconds to change the fee (Free) mode or quick test No test (capacity test) mode, then press again the corresponding function keys can be changed within 8 seconds, Current, Independent , Hunchong, capacity test, the selected function after 8 seconds in a working condition, in working condition can press (1234) To view the current (MA) / Capacity (mAh) / Voltage (V) / Time (H) / Resistance (MR) data reference.
