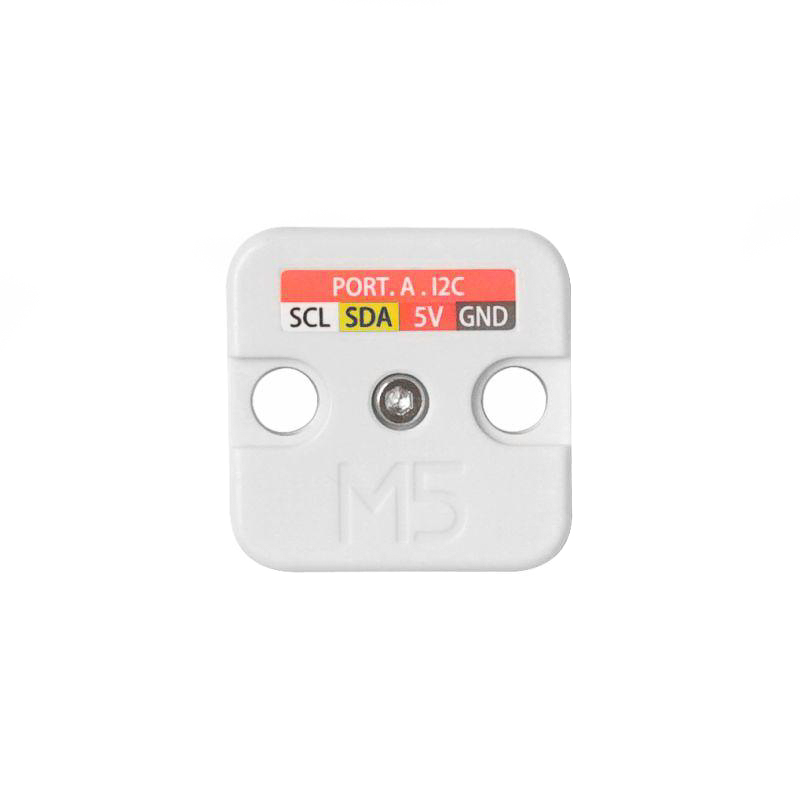

M5Stack 6-Axis IMU Unit (MPU6886)

M5Stack 6-Axis IMU Unit (MPU6886) is a 6-axis attitude sensor with a 3-axis gravity accelerometer and a 3-axis gyroscope, which can calculate tilt angle and acceleration in real-time. The chip adopts mpu6886, has 16 bit ADC, built-in programmable digital filter and on-chip temperature sensor, adopts an I2C interface (addr:0x68) to communicate with the host computer, and supports low-power mode.

Application

1. Wearable devices
2. Motion tracking
3. UAV attitude determination etc.

Arduino:

• Click here to download the Arduino example

Features:

1. 3-axis gravity accelerometer and 3-axis gyroscope
2. On-chip temperature sensor
3. 1KB FIFO
4. Support low power consumption
5. Development platform: Arduino, uiflow (blocky, python)
6. 2X LEGO compatible holes

Package Includes:

1 x 6-Axis IMU Unit
1 x Grove Cable (5cm)
