MAX98357 I2S 3W Class D Amplifier Audio Decoder Module

SKU: RZ24331555 Brand: Raspberry Pi Foundation Category: General

₹ 343.85

Out of Stock

Buy MAX98357 I2S 3W Class D Amplifier Audio Decoder Module online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 336.97
11 – 30	3%	₹ 333.53
31 – 50	4%	₹ 330.10
51 – 100	5%	₹ 326.66

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand Raspberry Pi Foundation

Category General

Subcategory General

SKU RZ24331555

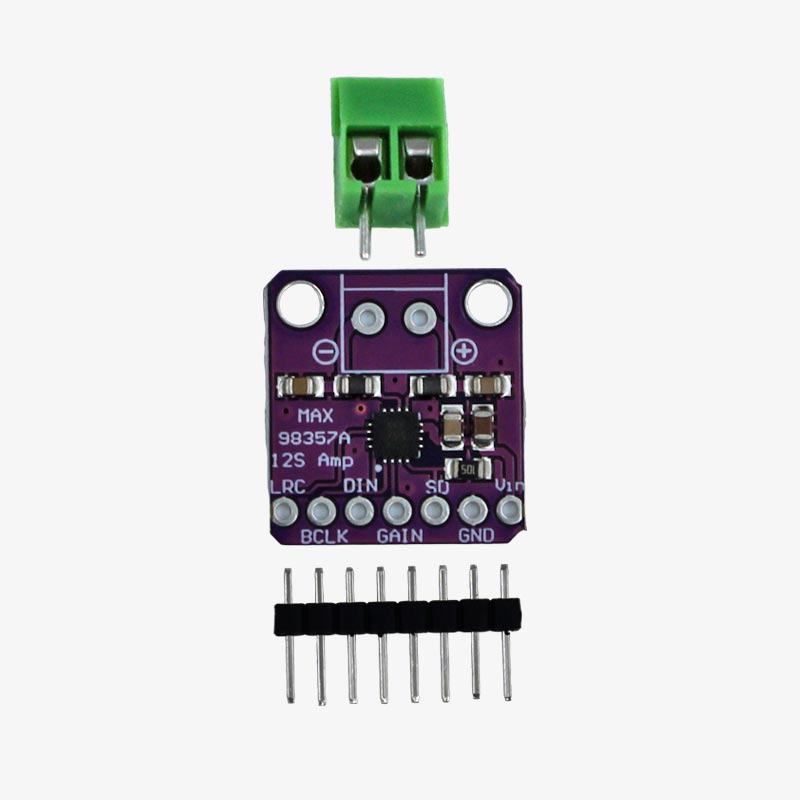

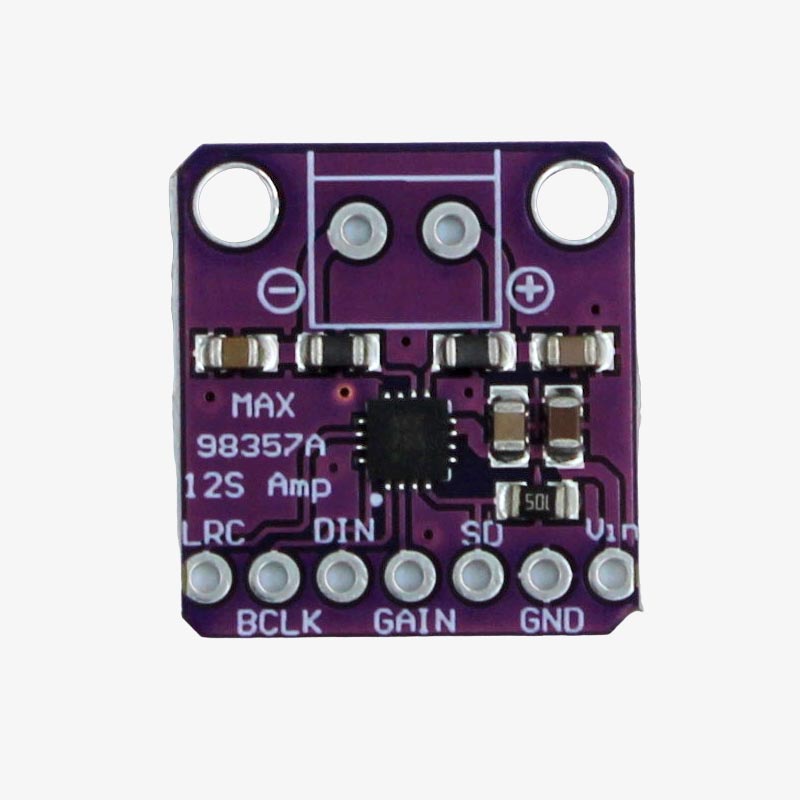

MAX98357 I2S 3W CLASS D Audio Amplifier Module accepts digital audio through the I2S interface and converts it to an analog output signal and amplifies it to allow direct speaker connection. It combines an I2S D/A converter with an audio amplifier on one board.
MAX98357 I2S 3W CLASS D Audio Amplifier Module is suitable for Raspberry Pi. By default, the stereo signals (L + R) are mixed to form an output signal. The behavior can be changed using a resistor so that only L or R is output.

Specifications:

Model: MAX98357
Output Power: 3.2W at 10% THD (4Ω Impedance Speakers, 5V Power Supply)
Operating Voltage: 2.7V - 5.5V
PSRR (Power Supply Rejection Ratio): 77dB at 1kHz
Selectable Gain Options: 3dB, 6dB, 9dB, 12dB, 15dB
Input Compatibility: I2S digital audio input with support for 3.3V and 5V signal levels
Signal Mixing: Default stereo signal mixing (L + R)
Resistor Configuration: Easily configurable for individual L or R channel output
