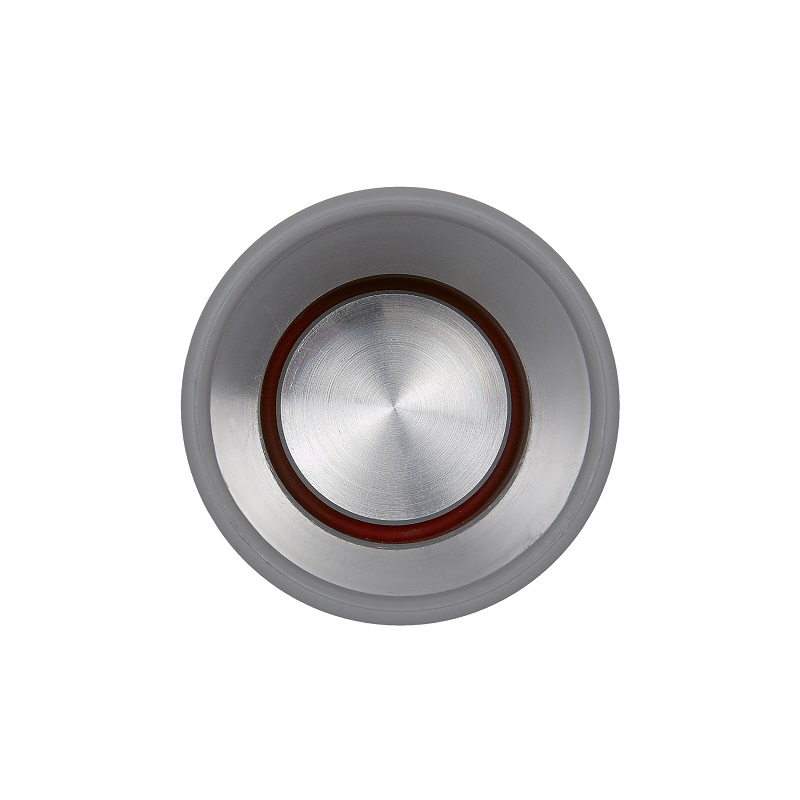

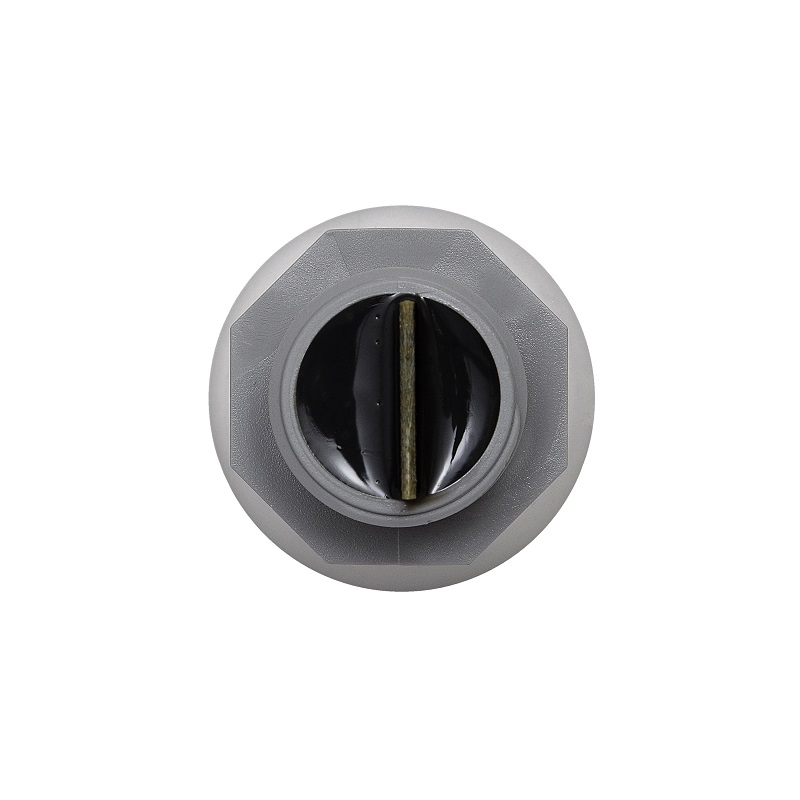

MaxBotix MB7076 XL-MaxSonar-WRLA1 Ultrasonic Sensor

Features of the weather resistant MB7076, XL-MaxSonar-WRLA1, include centimeter resolution, short to long distance detection, range information from 20cm to 1064cm for the nearest detectable target, a 10Hz read rate, and various output options: analog envelope, analog voltage, and RS232 serial.

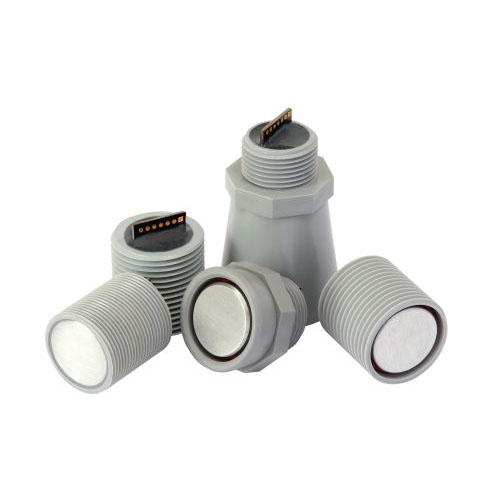

The MB7076 from the XL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robozarst PVC housing which meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

The XL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

In addition, the MB7076 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Applications:

1. Tank level measurement
2. Bin level measurement
3. Proximity zone detection
4. Environments with acoustic and electrical noise
5. Distance measuring
6. Long range object detection

Features:

1. RoHS Compliant
2. Small, light weight module
3. Designed for easy integration into your project or product
4. Long range, narrow detection z
5. Real-time automatic calibration (voltage, humidity, ambient noise)
6. Firmware filtering for better noise tolerance and clutter rejection
7. 20+ Years Mean Time Between Failure
8. Our longest range outdoor, weather resistant, ultrasonic sensor
9. Analog envelope output for easy troubleshooting and signal processing

Specifications:

1. Operates Voltage: 3.0-5.5V
2. Current: 3.4mA
3. Resolution: 1 cm
4.  Read rate: 10Hz
5. Ultrasonic sensor measures distance to objects: 42kHz
6. Read from all 3 select sensor outputs: Analog Voltage, Serial, Analog Envelope
7. Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
8. Weather Resistant (IP67), optional Chemical Resistant F-Option
9. Matches standard: electrical 3/4-inch PVC pipe fittings for easy mounting (3/4″ National Pipe Thread Straight)
10. Maximum range of 1068 cm (450 inches)

Note: For more info refer Datasheet

Packages Includes:

1 x MaxBotix MB7076 XL-MaxSonar-WRLA1 Ultrasonic Sensor
