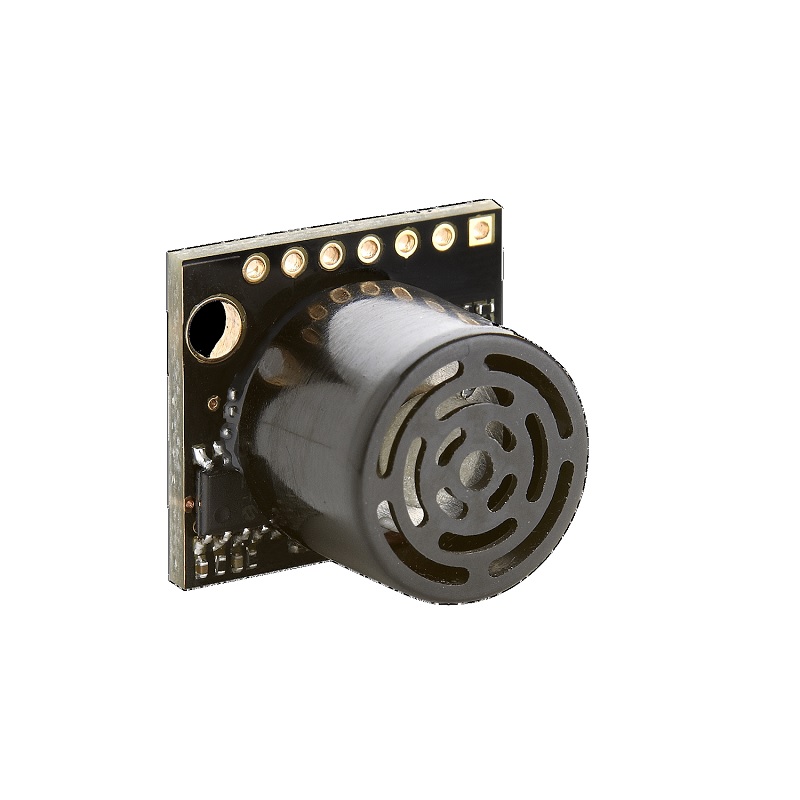

MaxBotix MB1013 Ultrasonic Sensor

The MaxBotix MB1013 Ultrasonic Sensor is the most cost-effective solution for applications where precision range-finding, low-voltage operation, space-saving, and low-cost are needed.

This MB1013 sensor line provides high accuracy and high resolution ultrasonic proximity detection and ranging in air, in a package less than one cubic inch. This sensor line features 1mm resolution, target-size and operating-voltage compensation for improved accuracy, superior rejection of outside noise sources, internal speed-of-sound temperature compensation, and optional external speed-of-sound temperature compensation. This ultrasonic sensor detects objects from 1mm to 5meters, senses range to objects from 30cm to 5meters, with large objects closer than 30cm typically reported as 30cm. The interface output formats are pulse width, analog voltage, and serial digital in either RS232 or TTL. Factory calibration is standard.

Specifications and Features:

1. Resolution of 1‑mm
2. 10Hz reading rate
3. Internal temperature compensation
4. Cost-effective solution where precision range-findings are needed
5. Sensor component allows users to lower the cost of their systems without sacrificing performance
6. 42kHz Ultrasonic sensor measures distance to objects
7. RoHS compliant
8. Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
9. Virtually no sensor dead zone, large objects closer than 30 cm are typically reported as 30 cm
10. Accuracy is factory-matched providing a typical accuracy of 1% or better
11. Maximum range of 5000 mm (195 inches)
12. Tolerates outside noise sources
13. Operates from 2.5V-5.5V
14. Low 3.1mA average current requirement
15. Small, light weight module
16. Designed for easy integration into your project or product
17. Operational Temperature from -0C to +65C (+32F to +149F)
18. Real-time automatic calibration (voltage, humidity, ambient noise)
19. Option external temperature compensation HR‑MaxTemp
20. Firmware filtering for better noise tolerance and clutter rejection
21. Great starting point for users unsure of which sensor to use

Package Includes:

1 x MaxBotix MB1013 Ultrasonic Sensor
