Mikroe GNSS MAX CLICK

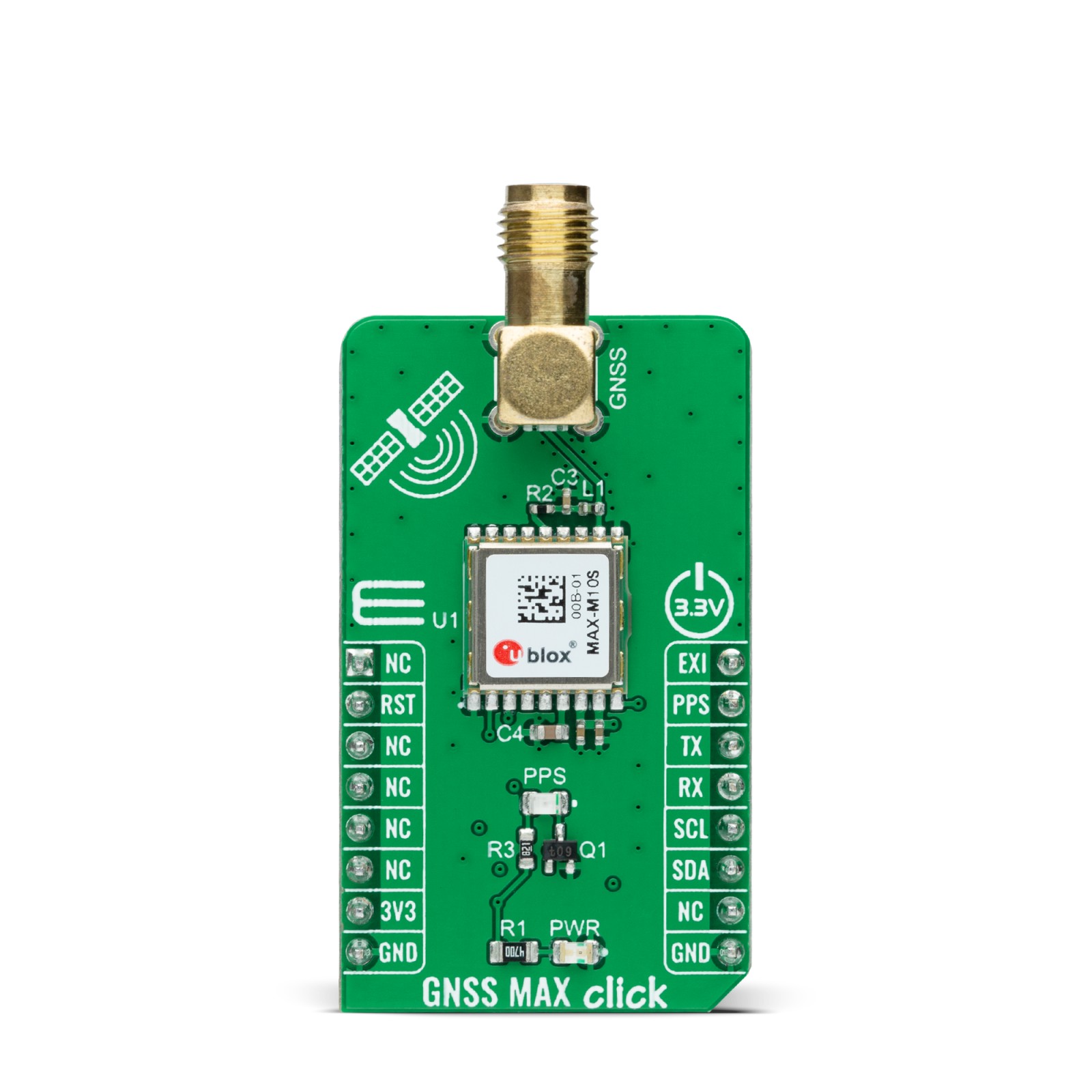

GNSS MAX Click is a compact add-on board that provides fast positioning capability. This board features the MAX-M10S, an ultra-low-power GNSS receiver for high-performance asset-tracking from u-blox. The MAX-M10S supports the concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou), which maximizes the position availability, particularly under challenging conditions such as in deep urban canyons. It is built on the u-blox M10 GNSS platform, which provides exceptional sensitivity and acquisition times for all L1 GNSS systems. It also comes with a configurable host interface, and advanced jamming and spoofing detection. This Click board™ is ideal for professional (industrial and consumer) applications such as asset trackers without compromising GNSS performance.

GNSS MAX Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

Applications: Can be used for professional (industrial and consumer) applications such as asset trackers

Specifications and Features:

1. Compatibility mikroBUS
2. Click board size M (42.9 x 25.4 mm)
3. Input Voltage 3.3V
4. Type GPS/GNSS
5. Low power consumption,
6. Maximum position availability with concurrent reception of 4 GNSS,
7. Proven excellent performance
8. Advanced jamming and spoofing detection, selectable interface

Useful Links:

• MikroBUS
• MikroSDK
• GNSS MAX click example on Libstock
• GNSS MAX click 2D and 3D files
• GNSS MAX click schematic
• MAX-M10S datasheet

Package Includes:

1 x Mikroe GNSS MAX CLICK
