MaxBotix MB7363 HRXL-MaxSonar-WRLS Ultrasonic Sensor

Features of the weather resistant MB7363, HRXL-MaxSonar-WRLS, include millimeter resolution, short to long distance detection, range information from 500mm to 9999mm for the nearest detectable target, heightened sensitivity over our standard sensors, a 6Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

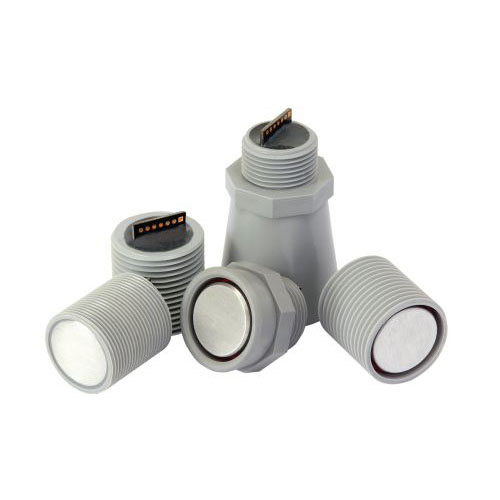

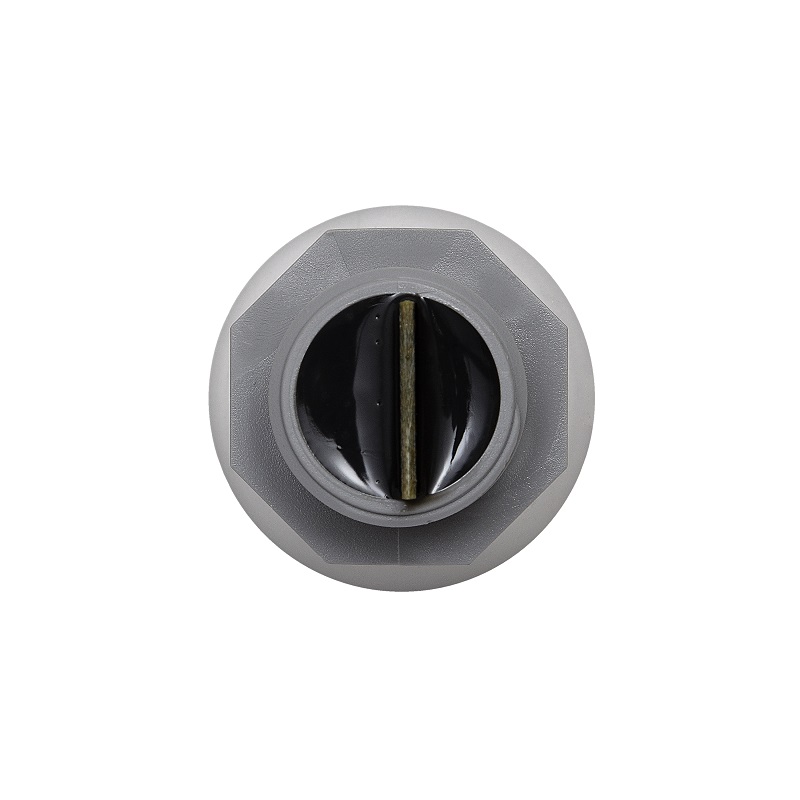

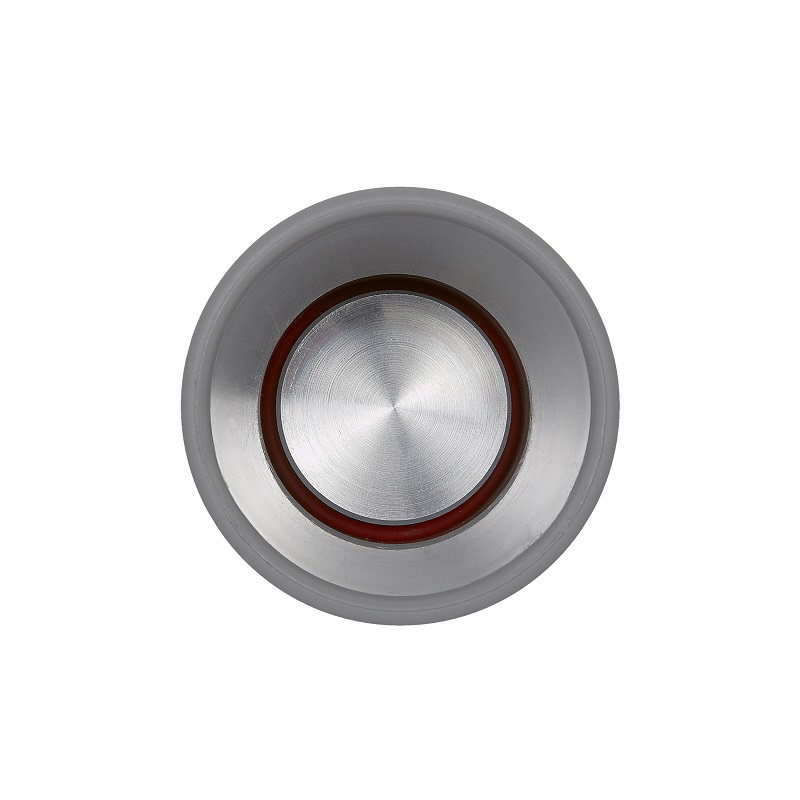

The MB7363 from the HRXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robozarst PVC housing which meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

The HRXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

In addition, the MB7363 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Applications:

1. Tank level measurement (MB7369 or MB7389)
2. Weather station monitoring
3. Bin level measurement
4. Proximity zone detection
5. People detection
6. Robot ranging sensor
7. Long range object detection
8. Environments with acoustic and electrical noise
9. Height monitors
10. Auto sizing
11. Box dimensions
12. Automated factory systems

Features:

1. RoHS Compliant
2. Small, light weight module
3. Designed for easy integration into your project or product
4. Long range, narrow detection z
5. Real-time automatic calibration (voltage, humidity, ambient noise)
6. Firmware filtering for better noise tolerance and clutter rejection
7. 20+ Years Mean Time Between Failure
8. Our longest range outdoor, weather resistant, ultrasonic sensor
9. Analog envelope output for easy troubleshooting and signal processing
10. Internal temperature compensation
11. Great for long-range people detection

Specifications:

1. Operates voltage: 2.7-5.5V
2. Current: 2.9mA
3. Resolution: 1-mm
4. Read rate: 6Hz
5. Ultrasonic sensor measures distance to objects: 42kHz
6. Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
7. Virtually no sensor dead zone: objects closer than 50cm typically range as 50cm
8. Operational temperature -40°C to +65°C (-40°F to +149°F)
9. Weather resistant (IP67), optional chemical resistant F-Option
10. Matches standard: electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
11. RS232 Serial Output
12. Maximum range: 10 meters (394 inches)

Note: For more info refer Datasheet

Packages Includes:

1 x MaxBotix MB7363 HRXL-MaxSonar-WRLS Ultrasonic Sensor
