MBR3045
Buy MBR3045 online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.

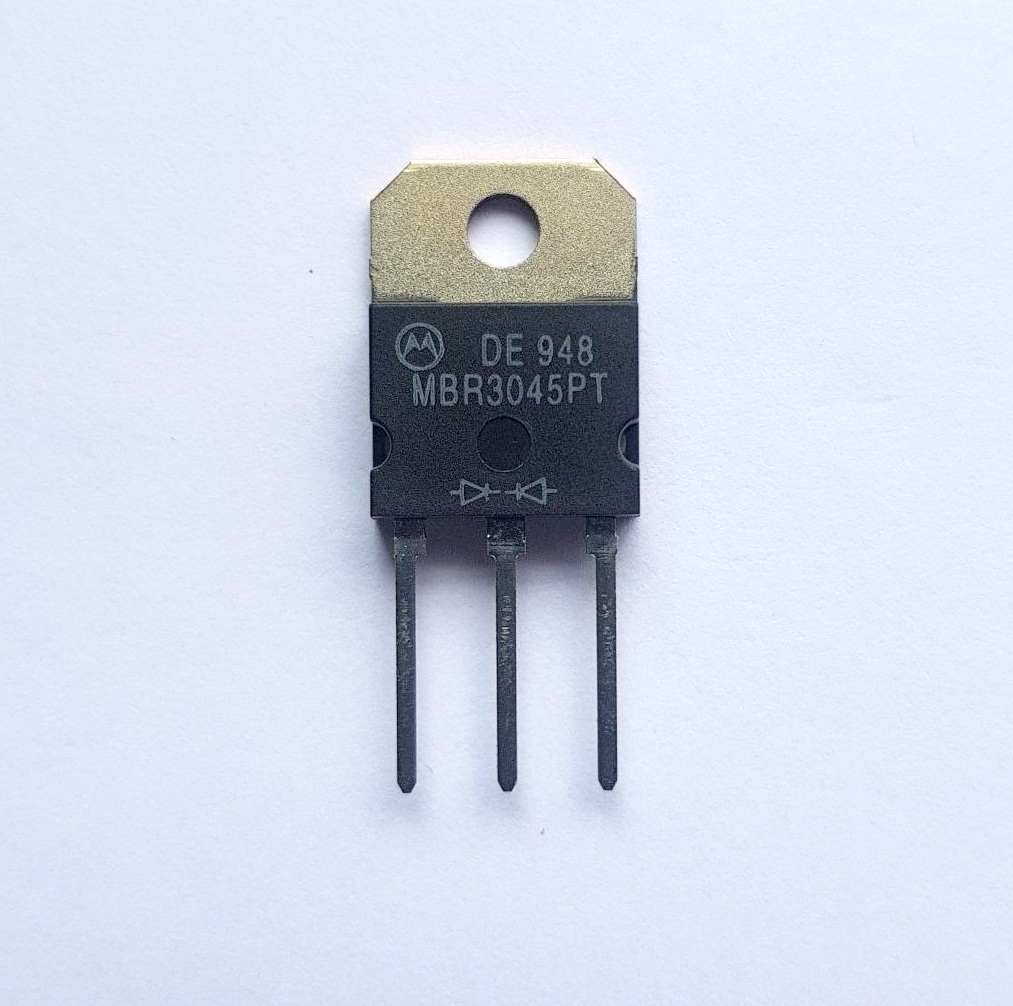

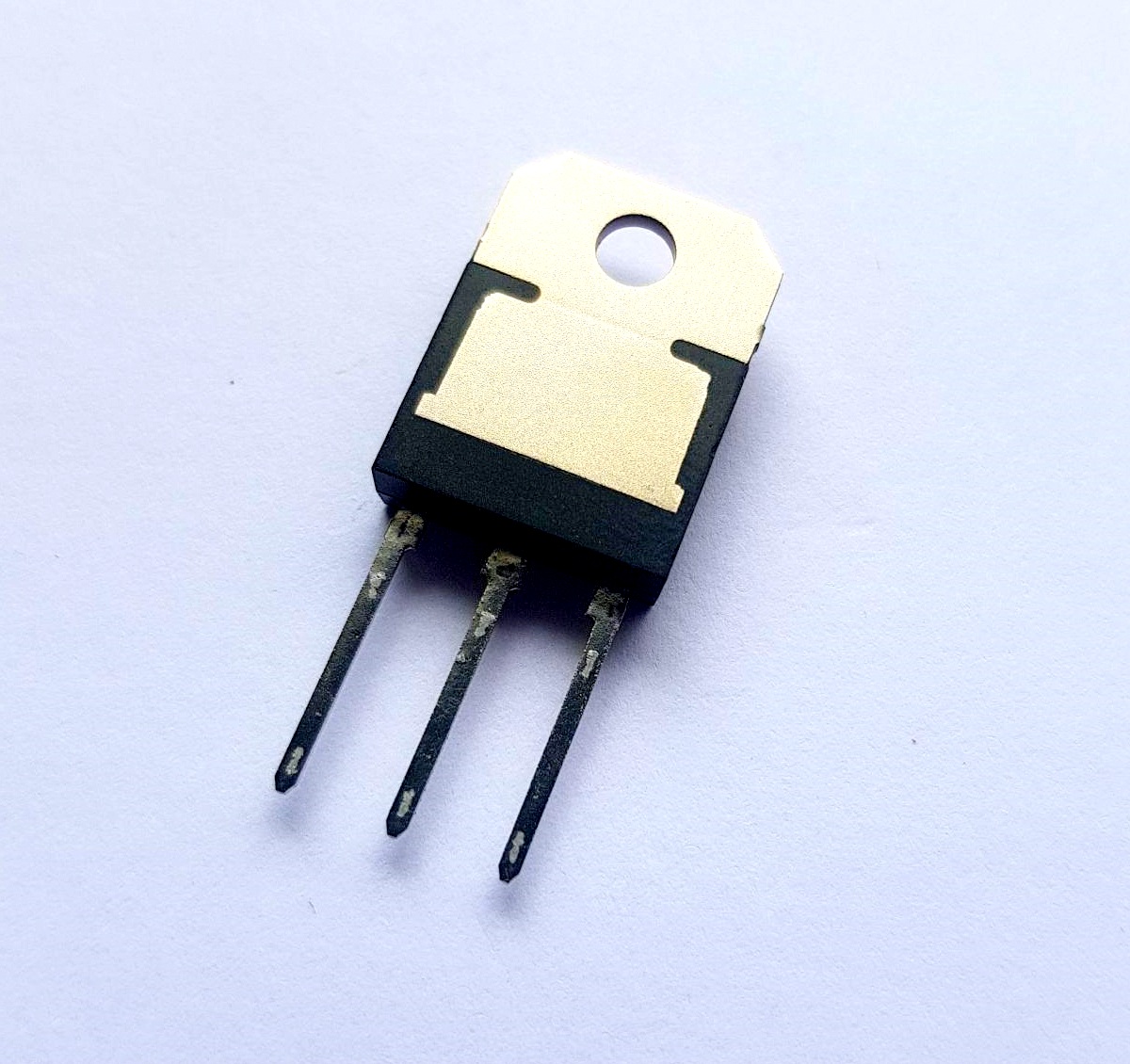

MBR3045PT 30A 45V Switchmode Power Rectifier Diode IC Schottky Barrier
ELECTRICAL CHARACTERISTICS (Per Diode):
Instantaneous Forward Voltage(iF = 20 Amps, TC = 125°C): 0.60V
Instantaneous Reverse Current (Rated dc Voltage, TC = 25°C): 1.0mA
Features:
- Dual Diode Construction-Terminals 1 and 3 may be Connected for Parallel Operation at Full Rating
- Guarding for Stress Protection
- Low Forward Voltage
- 150°C Operating Junction Temperature
- Guaranteed Reverse Avalanche
Specifications:
- Peak Repetitive Reverse Voltage: 45V
- Working Peak Reverse Voltage: 45V
- DC Blocking Voltage: 45V
- Peak Repetitive Forward Current, Per Diode (Rated VR, Square Wave, 20 kHz): 30A
- Nonrepetitive Peak Surge Current: 200A
(Surge applied at rated load conditions halfwave, single phase, 60 Hz)
Peak Repetitive Reverse Current, Per Diode (2.0 ms, 1.0 kHz): 2.0A
Voltage Rate of Change (Rated VR): 10000V/us
Package Includes:
1 x MBR3045PT 30A 45V Switchmode Power Rectifier Diode IC
