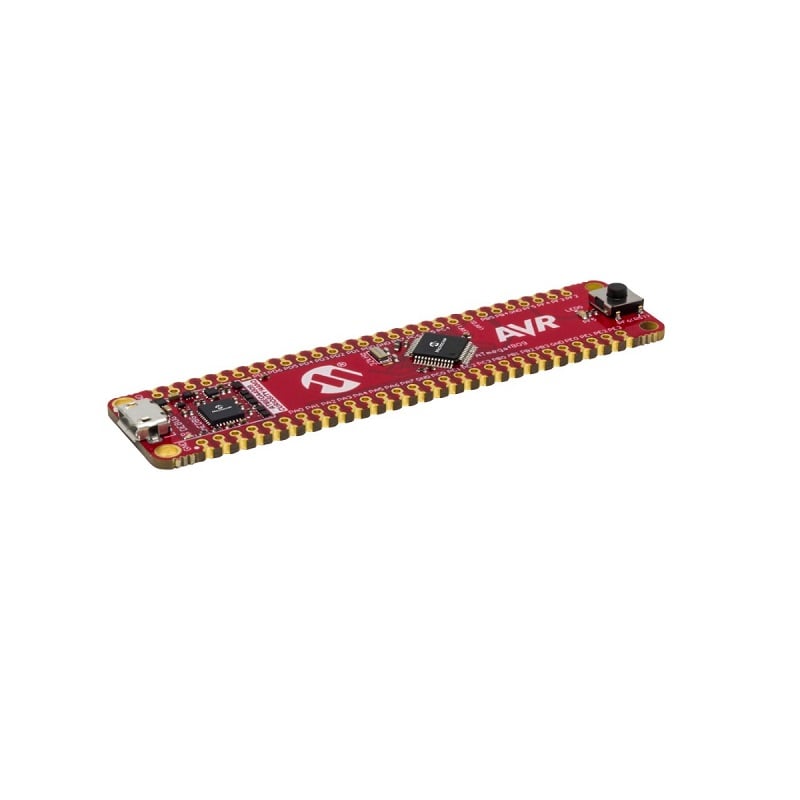

MICROCHIP  DM320115  Evaluation Board, Curiosity Nano, ATmega4809 MCU, MPLAB X IDE, On-Board Debugger

Pocket sized ATmega4809 curiosity Nano evaluation kit with full program and debugged capabilities. The ATMega4809 microcontroller (MCU) broadens the effectiveness of real-time control systems with a combination of intelligent hardware peripherals alongside the low-power capacity of the AVR core. Elevate your design with a high-speed ADC, Core Independent Peripherals (CIPs), and on-chip Configurable Custom Logic (CCL). Use either Studio 7 or MPLAB X IDEs as a magnifying glass to look into your MCU and step through the debug. Free, easy-to-use graphical programming tools, START and MCC allows you to intuitively program the target MCU. ATmega4809-MFR microcontroller (yellow user LED, mechanical user switch, 1 32.768KHz crystal) .On-board debugger (board identification in Microchip MPLAB X, 1 green power and status LED).On-board debugger (programming and debugging, virtual COM port, 2 logic analyzer channels) Adjustable target voltage (MIC5353 LDO regulator controlled by the onboard debugger).

Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.

Features:

1. AVR® CPU
2. Single-cycle I/O access
3.  Two-level interrupt controller
4.  Two-cycle hardware multiplier
5.  Memories Up to 48 KB In-system self-programmable Flash memory
6. 256B EEPROM
7.  Up to 6 KB SRAM
8.  Write/Erase endurance:
9.  Flash 10,000 cycles
10.  EEPROM 100,000 cycles
11.  Data retention: 20 Years at 85°C
12. System  Power-on Reset (POR) circuit
13. Brown-out Detection (BOD)
14.  Clock options:
15.  Lockable 20 MHz low-power internal oscillator
16.  32.768 kHz Ultra-Low-Power (ULP) internal oscillator
17.  32.768 kHz external crystal oscillator
18.  External clock input

Package Includes:

1 x MICROCHIP  DM320115  Evaluation Board, Curiosity Nano, ATmega4809 MCU, MPLAB X IDE, On-Board Debugger
