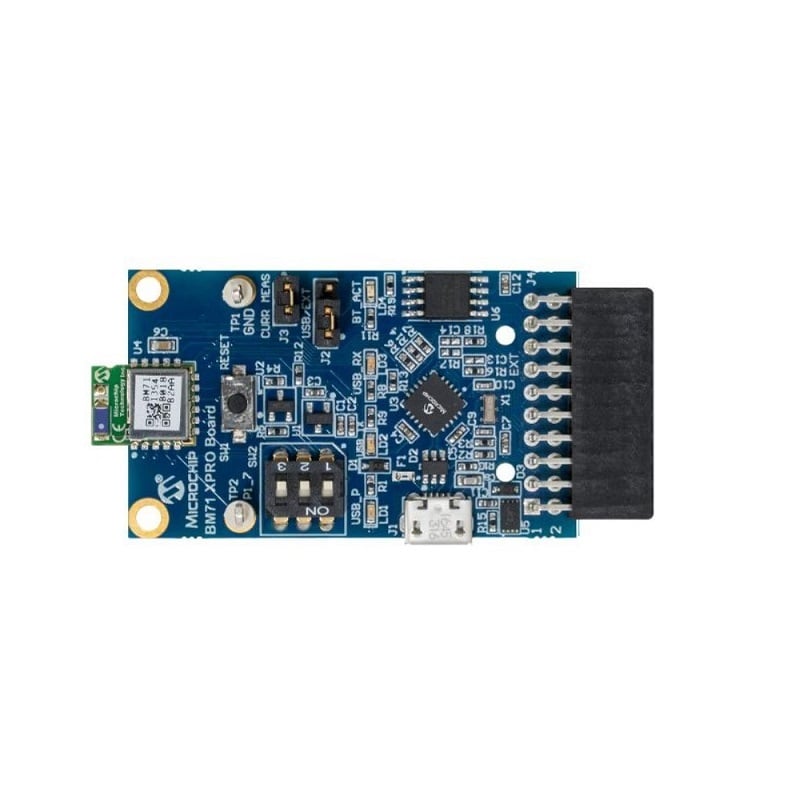

MICROCHIP XPRO EXTENSION BOARD WITH BLE

BM71-XPRO board is designed to be able to easily add Bluetooth Low Energy (BLE) functionality to your XPRO development tools. It can be used as an extension to your favourite SAMx or AVRx XPRO boards or can be used standalone. The BM71 XPRO is fully supported within Atmel Studio with example code in ASF3.

Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.

Features:

1. USB-UART Bridge (MCP2200) for Host PC Operation
2. On Board 3.3V LDO for Power Regulation
3.  On Board SPI Flash for Storing Firmware Images (DFU OTA)
4.  Test Point for GPIO Pin (P1_3)
5.  Reset Push Button
6.  DIP Switch to Control:
   – BM71 operation mode
   – LED
   – GPIO pin
7.  Passive RC Filters for PWM and ADC Inputs
8.  Atmel Studio (ASF3), to Provide Predefined Application Examples
9.  XPRO Extension Header
10.  Header Pins for Current Measurement
11.  Two Power Sources:
    – Micro USB
    – XPRO Connector

 Package Includes:

1 x MICROCHIP XPRO EXTENSION BOARD WITH BLE
