MP1584 Switching Step Down Regulator IC

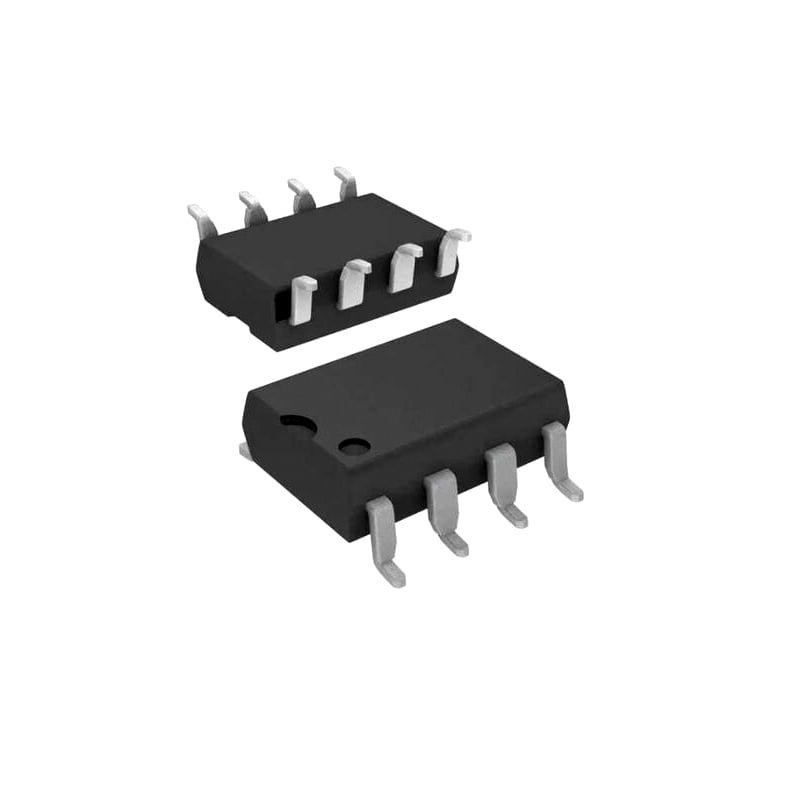

MP1584 Switching Step Down Regulator IC – SOIC8E Package

The MP1584 is a high-frequency step-down switching regulator with an integrated internal high-side high-voltage power MOSFET. It provides 3A output with current mode control for fast loop response and easy compensation. The wide 4.5V to 28V input range accommodates a variety of step-down applications, including those in an automotive input environment. A 100µA operational quiescent current allows use in battery-powered applications.

High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load conditions to reduce the switching and gate-driving losses. The frequency foldback helps prevent inductor current runaway during startup and thermal shutdown provides reliable fault-tolerant operation. By switching at 1.5MHz, the MP1584 is able to prevent EMI (Electromagnetic Interference) noise problems, such as those found in AM radio and ADSL applications. The MP1584 is available in a thermally enhanced SOIC8E package.

Applications:

• High Voltage Power Conversion
• Automotive Systems
• Industrial Power Systems
• Distributed Power Systems
• Battery Powered Systems

Features:

1. Wide 4.5V to 28V Operating Input Range
2. Programmable Switching Frequency from 100kHz to 1.5MHz
3. High-Efficiency Pulse Skipping Mode for Light Load
4. Ceramic Capacitor Stable
5. Internal Soft-Start
6. Internally Set Current Limit without a Current Sensing Resistor

Specifications:

1. Manufacturer: Monolithic Power Systems
2. Series: MP1584
3. Product Type: Switching Voltage Regulators
4. Input Voltage, Max: 28 VDC
5. Output Voltage: 800 mV To 25 V
6. Output Current: 3 A
7. Number of Outputs: 1 Output
8. Switching Frequency: 1.5 MHz
9. Moisture Sensitive: Yes
10. Mounting Style: SMD/SMT
11. Package/Case: SOIC-8E

Package Includes:

1 x MP1584 Switching Step Down Regulator IC
