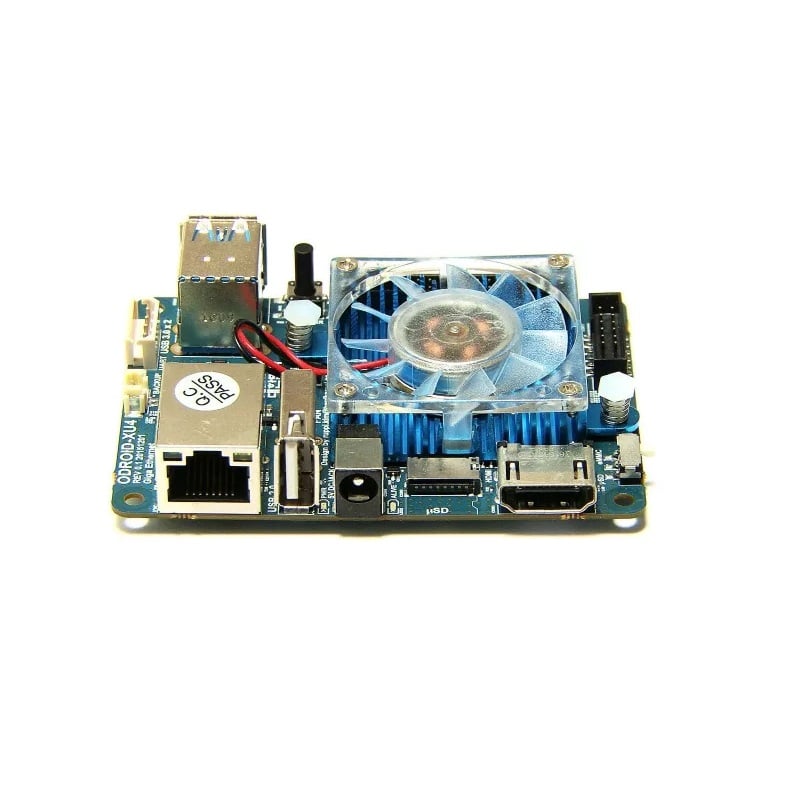

ODROID-XU4

ODROID-XU4 is a new generation of computing devices with more powerful, more energy-efficient hardware and a smaller form factor. Offering open-source support, the board can run various flavors of Linux, including the latest Ubuntu 20.04 and Android 4.4 KitKat, 5.0 Lollipop, and 7.1 Nougat.
By implementing the eMMC 5.0, USB 3.0, and Gigabit Ethernet interfaces, the ODROID-XU4 boasts amazing data transfer speeds, a feature that is increasingly required to support advanced processing power on ARM devices.
This allows users to truly experience an upgrade in computing, especially with faster booting, web browsing, networking, and 3D games.

Features:

1. It is powered by a Samsung Exynos 5422 Cortex-A15 2.0 GHz quad-core and Cortex-A7 quad-core CPUs.
2. RAM: It has 2GB LPDDR3 RAM.
3. GPU: Mali-T628 MP6 GPU that supports OpenGL ES 3.0 and OpenCL 1.1.
4. Storage: It has a microSD card slot that supports up to 128GB storage.
5. Connectivity: Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 4.0, and two USB 3.0 ports.
6. Display: It has an HDMI 1.4a port and a 30-pin header for LVDS displays.
7. Other features: 40-pin GPIO header, infrared receiver, RTC battery slot, and support for Ubuntu, Android, and other operating systems.
8. Performance: ODROID-XU4 is a powerful SBC capable of running demanding applications and multitasking with ease. It can handle 4K video playback and supports H.265 codec.

Specifications:

1. Processor: Samsung Exynos5422 Cortex™-A15 2Ghz and Cortex™-A7 Octa core CPUs
2.  GPU: Mali-T628 MP6(OpenGL ES 3.1/2.0/1.1 and OpenCL 1.2 Full profile)
3.  RAM: 2Gbyte LPDDR3 RAM PoP stacked
4.  Flash Storage Interface: eMMC5.0 HS400  (eMMC module sold separately)
5.  USB: 2 x USB 3.0 Host, 1 x USB 2.0 Host
6.  Gigabit Ethernet port
7.  HDMI 1.4a for display
8.  Size : 83 x 58 x 20 mm approx.(excluding cooler)
9.  Power: 5V/4A input
10.  Linux Kernel 5.4 LTS

Package Includes:

1 x ODROID-XU4
