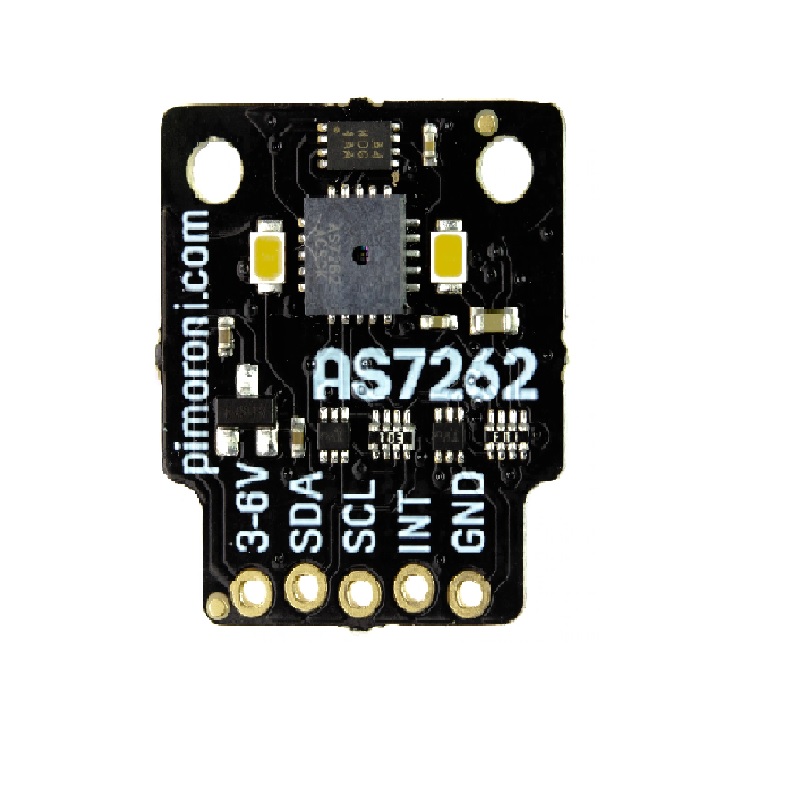

PIMORONI AS7262 6-channel Spectral Sensor (Spectrometer) Breakout

The AS7262 is a cost-effective multi-spectral sensor-on-chip solution designed to address spectral ID applications. This highly integrated device delivers 6-channel multi-spectral sensing in the visible wavelengths from approximately 430nm to 670nm with full-width half-max (FWHM) of 40nm. An integrated LED driver with programmable current is provided for electronic shutter applications. The AS7262 integrates Gaussian filters into standard CMOS silicon via nano-optic deposited interference filter technology and is packaged in an LGA package that provides a built in
aperture to control the light entering the sensor array. Control and spectral data access is implemented through either the I²C register set, or with a high level AT Spectral Command
set via a serial UART.

Application:

1. Portable spectrometry
2. Horticulture
3. Color matching and identification
4. Authentication and brand protection
5. Precision color tuning/calibration

Features:

1. AMS AS7262 6-channel spectral (visible) sensor

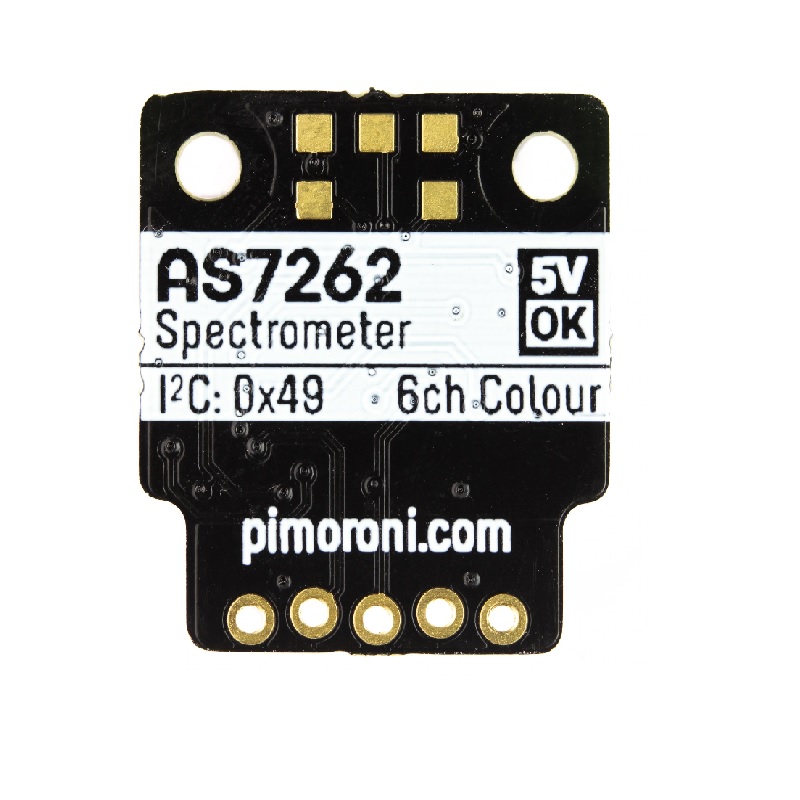

2. I2C interface (address: 0x49)
3. Visible filter set realized by silicon interference filters
4. 2 on-board illumination LEDs
5. 16-bit ADC with digital access
6. Programmable LED drivers
7. Reverse polarity protection
8. Raspberry Pi-compatible pinout (pins 1, 3, 5, 7, 9)
9. Compatible with Raspberry Pi (Python library)
10. Compatible with Raspberry Pi Pico (C++/MicroPython libraries)

Packages Includes:

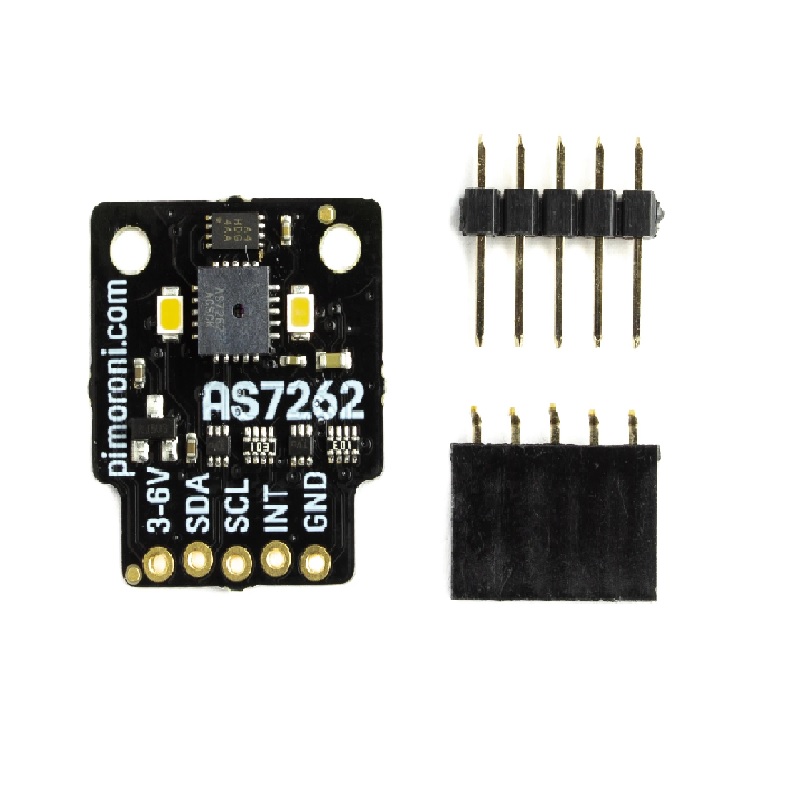

1 x PIMORONI AS7262 6-channel Spectral Sensor (Spectrometer)
