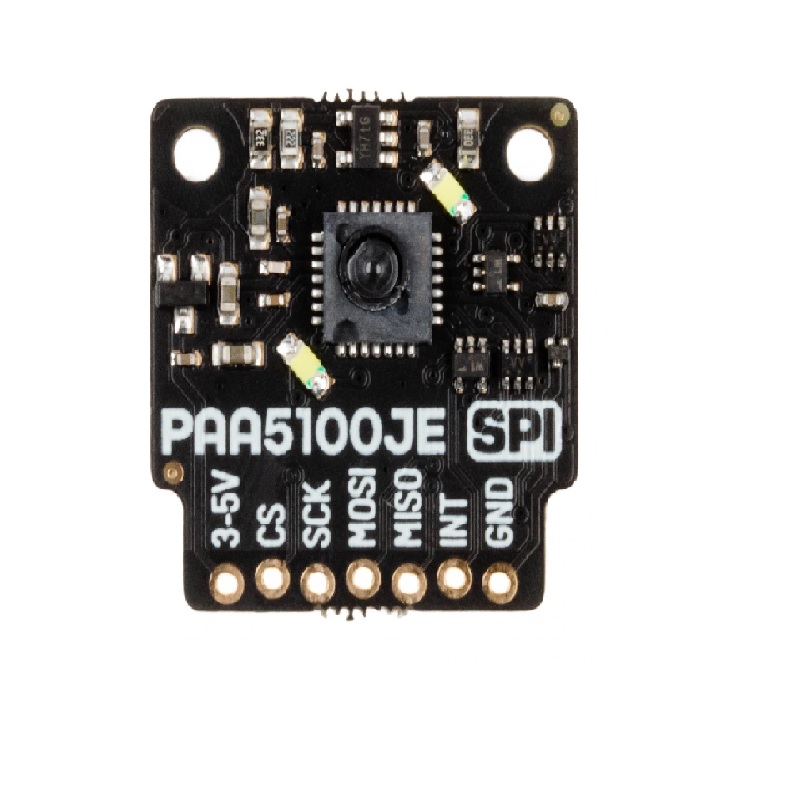

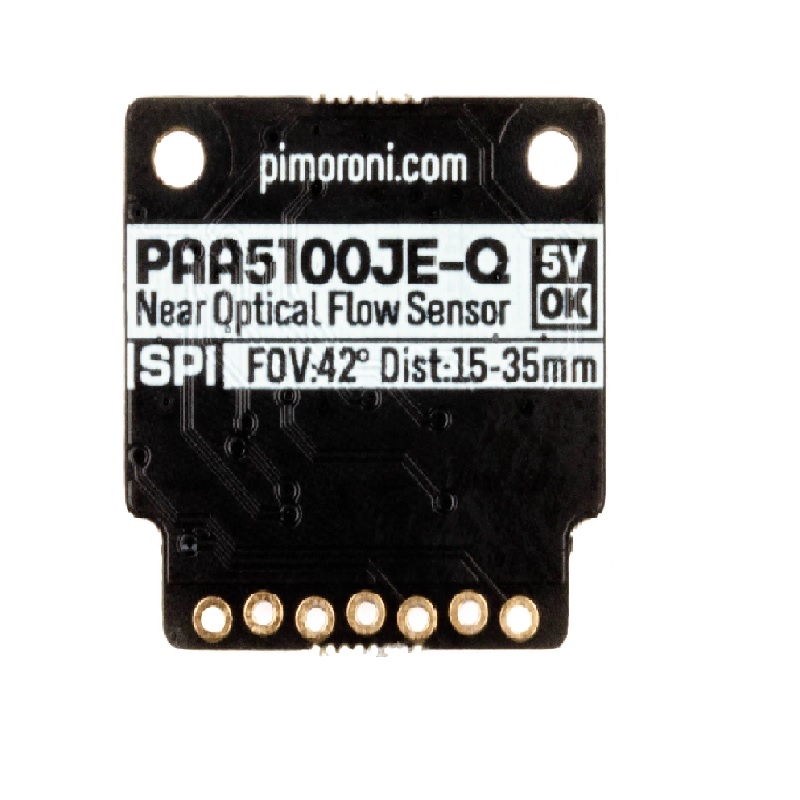

PIMORONI PAA5100JE Near Optical Flow SPI Breakout

The PAA5100JE-Q is PixArt Imaging’s latest optical navigation chip designed to enable navigation with working range of 15 mm to 35 mm over various surfaces. It is housed in a 28-pin land-grid-array (LGA) package that provides X-Y motion information. Aided by external illumination, it is most suitable for motion and surface detection in robot application.

Applications:

1. Devices that require near field motion detection,
2. Robot Cleaners

Features:

1. Working range of 15 to 35 mm
2. No lens focusing required during lens mounting process
3. Power consumption of 6 mA typical @ run mode (chip only)
4. 16-bits motion data registers
5. Motion detect pin output
6. Internal oscillator – no clock input needed

Packages Includes:

1 x PIMORONI PAA5100JE Near Optical Flow SPI Breakout
