PN532 NFC RFID Read/Write Module V3 with Tag and Card

SKU: RZ24339095 Category: Wireless & Communication

₹ 678.50

Out of Stock

Buy PN532 NFC RFID Read/Write Module V3 with Tag and Card online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 664.93
11 – 30	3%	₹ 658.15
31 – 50	4%	₹ 651.36
51 – 100	5%	₹ 644.58

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category Wireless & Communication

Subcategory RF Modules

SKU RZ24339095

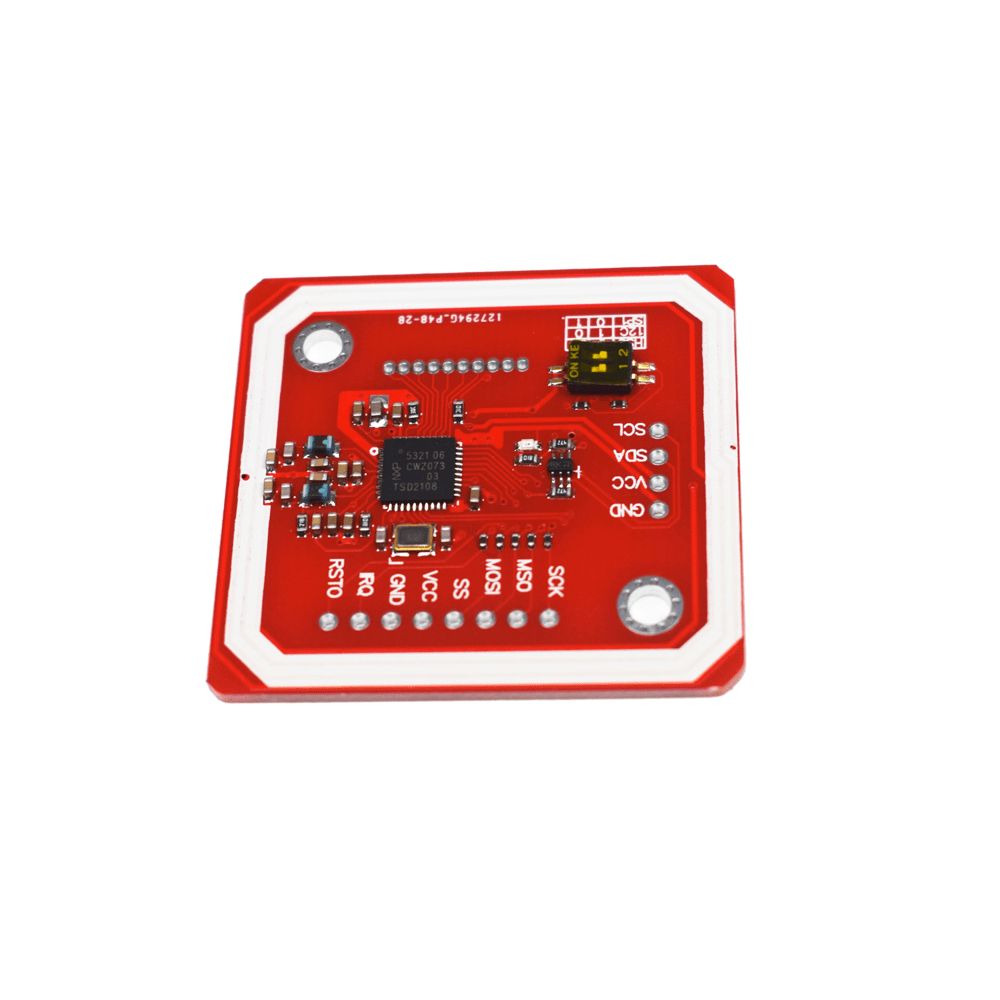

This is a PN532 NFC RFID Reader/Writer Module V3 with Tag and RFID Card. The PN532 is a highly integrated transmission module with microcontroller functionality that operates at 13.56 MHz and has 40KB of ROM and 1 KB of RAM. The PN532 combines a fully integrated modulation and demodulation concept for various contactless communication methods and protocols at 13.56 MHz with simple firmware for the various supported modes and host controller interfaces. It can function as an RFID reader/writer, 1443-A card, or virtual card, and it also supports NFC with an Android phone.

Package Included

1x PN532 NFC RFID Module

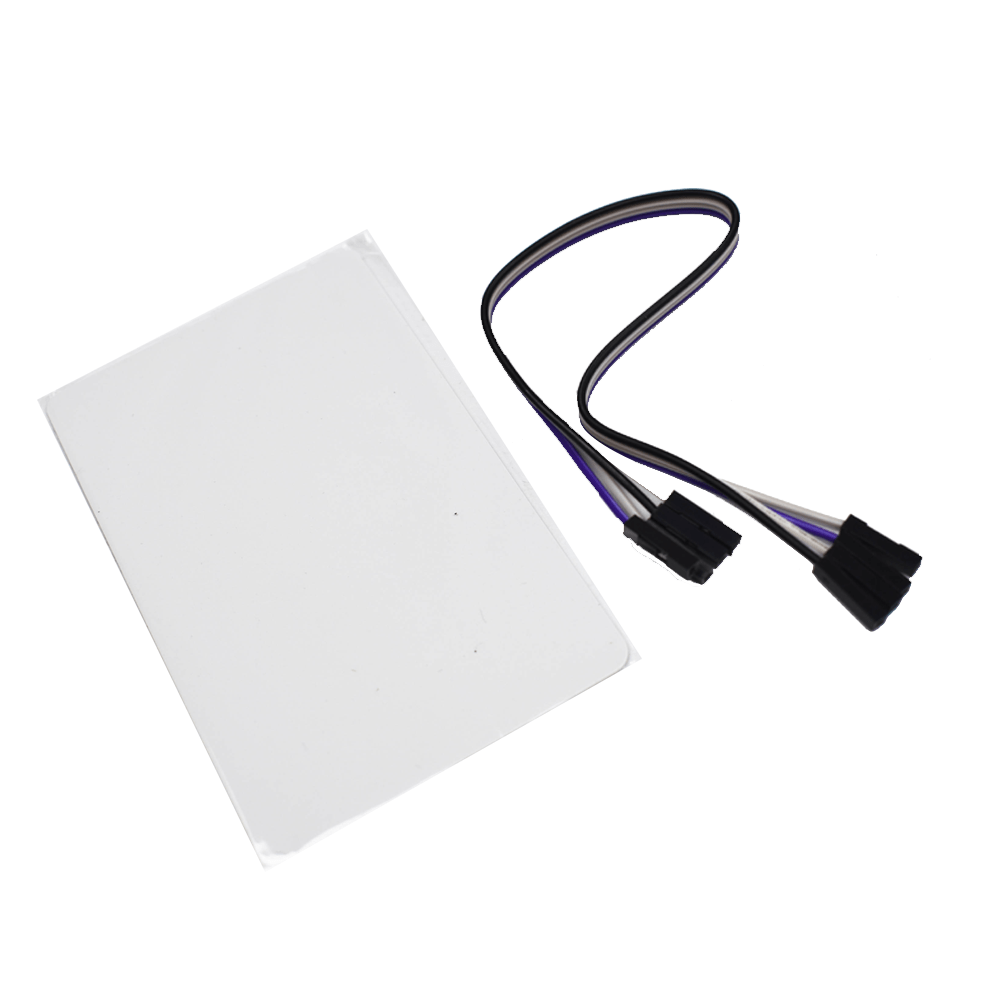

1x RFID plain white Card

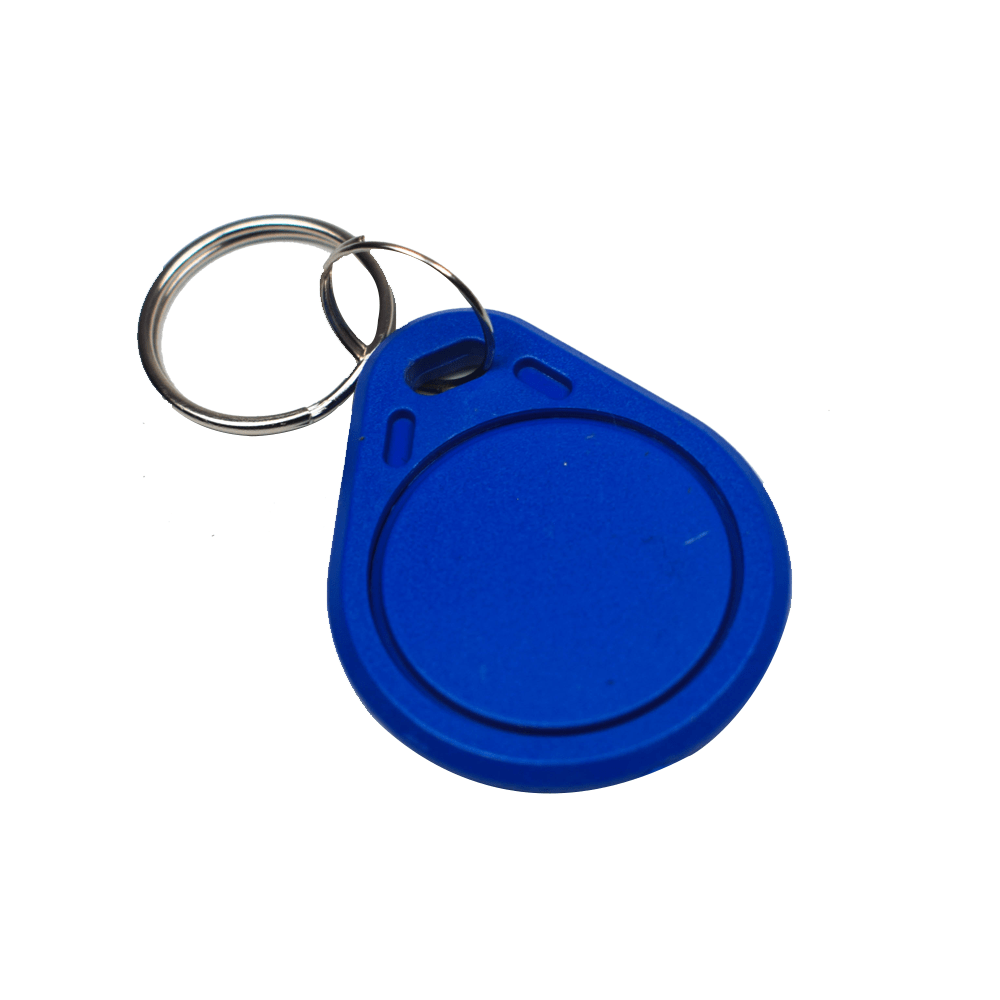

1x Tag

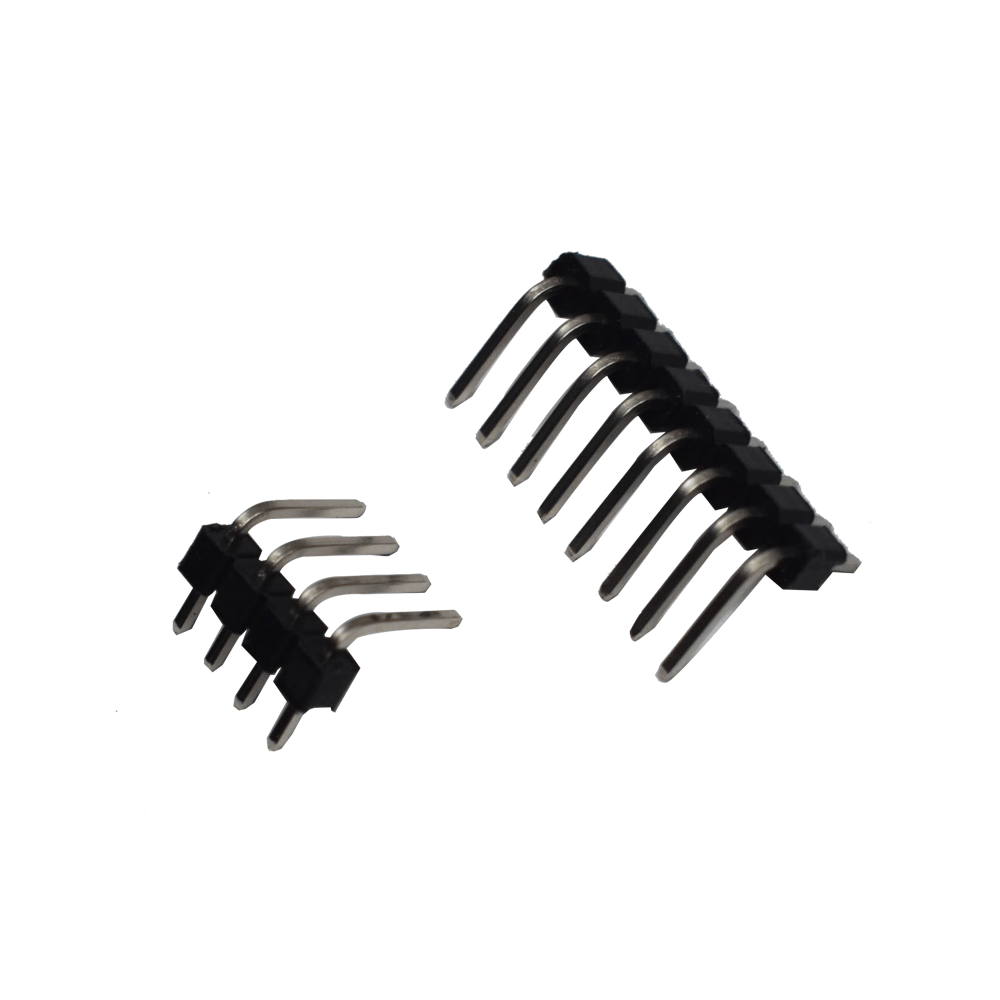

1x 4pin Female-to-female connector pin.

Specifications

Model/Product	PN532 NFC RFID Module
Type	RFID
Operating Voltage	3.3~5V
Supporting Protocols	II2, SPI and HSU (High-Speed UART) I2C / UART: 3.3V ~ 24V TTL SPI: 3.3V TTL with 100-ohm resistors in series
Communication Distance	5cm~7cm
Module Dimensions	41mm × 43mm
Card Dimension	85.5mm × 54mm
Supported	II2, SPI and HSU (High-Speed UART)
Country of Origin	China
