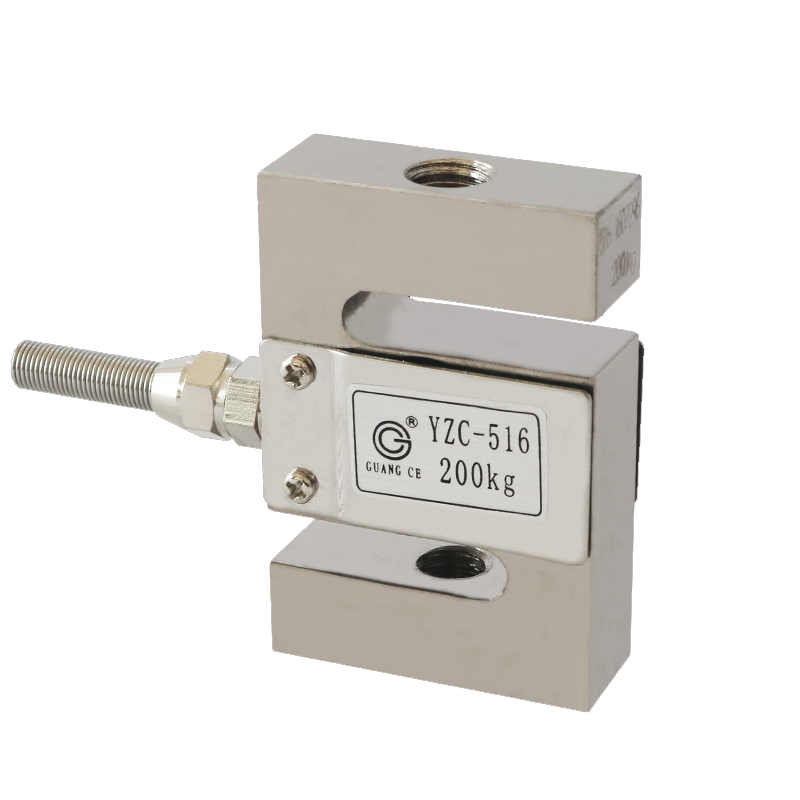

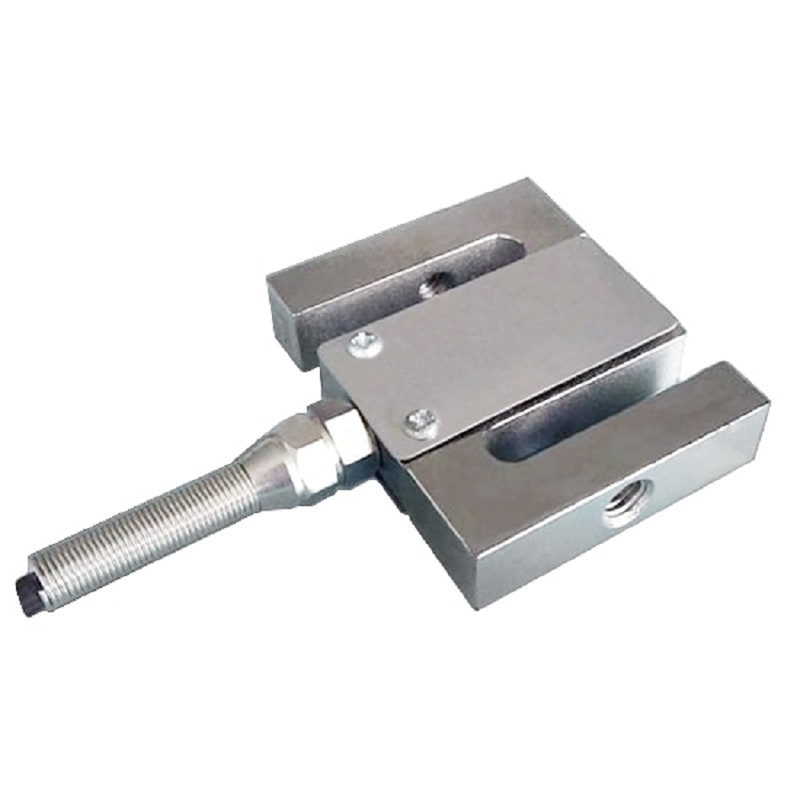

Pull Tension YZC-516C Pressure Sensor S Type Load Cell Grouping Scale 200KG

This S-Type load cell can convert up to 200kg of pressure (force) into an electrical signal. Each load cell can detect changes in electrical resistance as a result of the strain (pressure or force) applied to the form. This gauge can be used to measure how heavy an object is, if its weight changes over time, or simply to detect the presence of an object by detecting strain or load applied to a surface.

Each straight bar load cell is made of alloy steel and can hold up to 200 kg. In these load cells, four strain gauges are coupled in a Wheatstone bridge design. On the connection wiring, red denotes E+, green denotes O+, black denotes E-, and white denotes O-. Furthermore, these load cells have an IP66 protection certification and two M4 and two M5 sized through-holes for attachment.

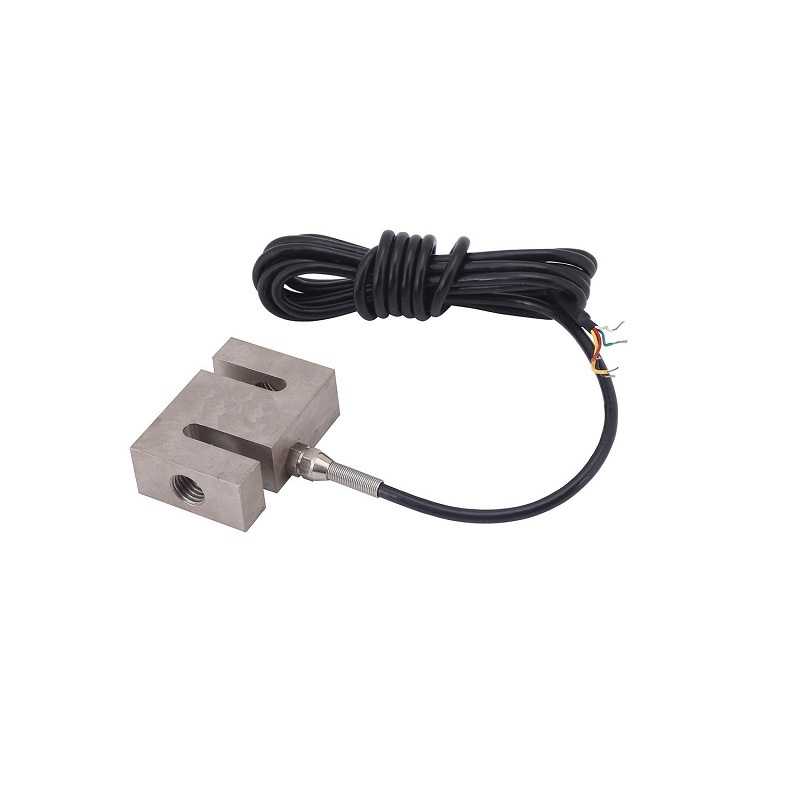

It has Four lead wires which can be connected to  HX711 A/D Pressure Sensor.  It is easy to use with driving voltage 5-10V and produces the output voltage as per the force changes over it.

Applications:

Electronic weighing, weighing, and other power measurements, weighing the industrial automation measurement and control system.

Package Includes:

1 x Pull Tension YZC-516C Pressure Sensor 200KG
