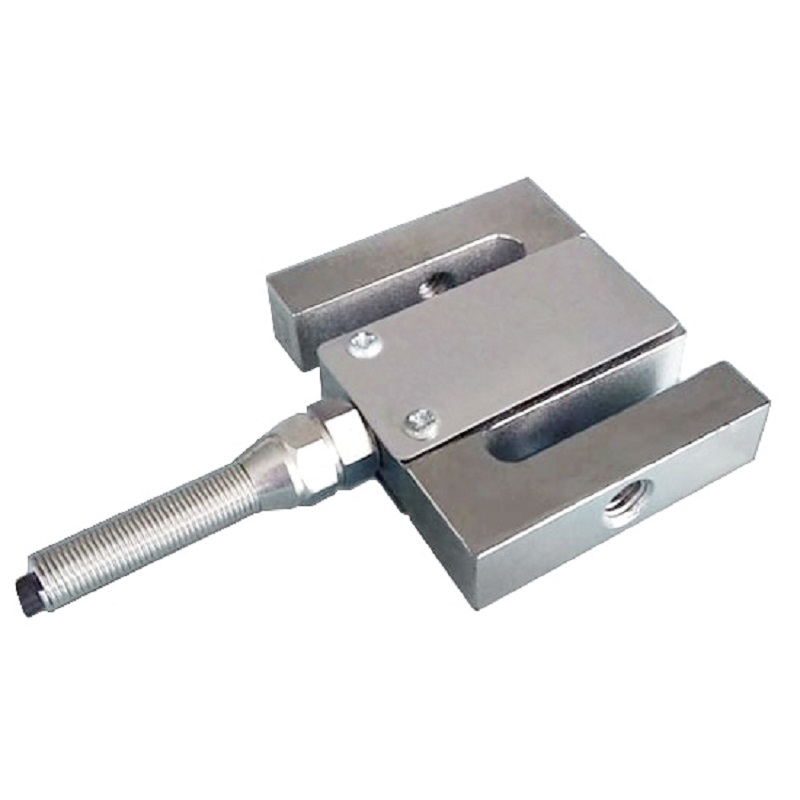

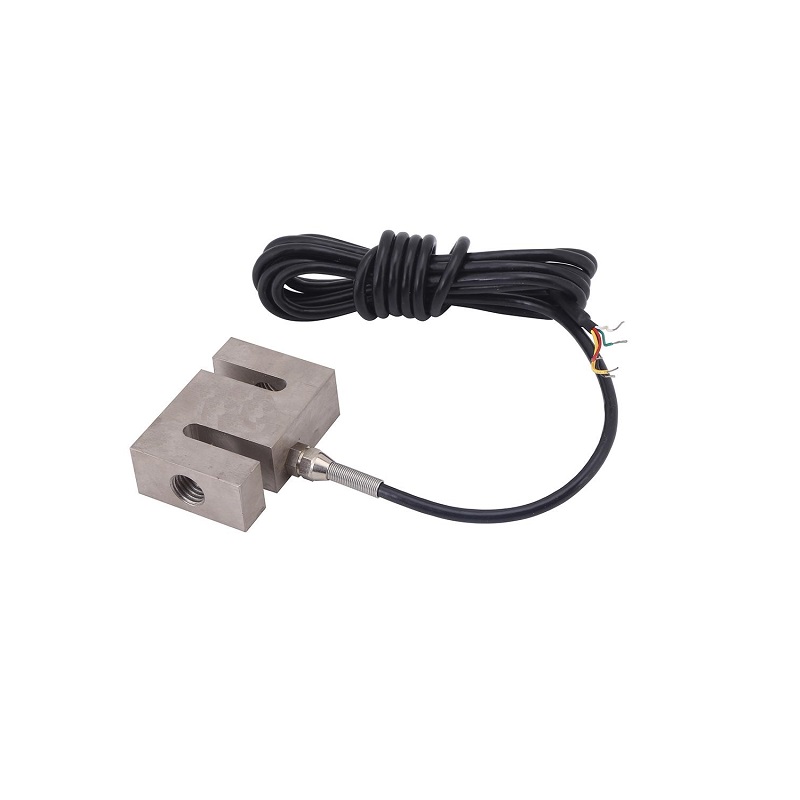

Pull Tension YZC-516C Pressure Sensor S Type Load Cell Grouping Scale 100KG

This S-Type load cell can translate up to 100kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response and proportion to the strain (e.g., pressure or force) applied to the form. With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

Each straight bar load cell is made from alloy steel and is capable of reading a capacity of up to 200kg. These load cells have four strain gauges that are hooked up in a Wheatstone bridge formation. The color code on the wiring is as follows: red = E+, green = O+, black = E-, and white = O-. Additionally, these load cells offer an IP66 protection rating and feature two M4 and two M5 sized through-holes for mounting purposes.

It has Four lead wires which can be connected to  HX711 A/D Pressure Sensor.  It is easy to use with driving voltage 5-10V and produces the output voltage as per the force changes over it.

Connection Diagram with Arduino via HX711:

Applications:

Electronic weighing, weighing, and other power measurements, weighing the industrial automation measurement and control system

Package Includes:

1 x Pull Tension YZC-516C Pressure Sensor 100KG
