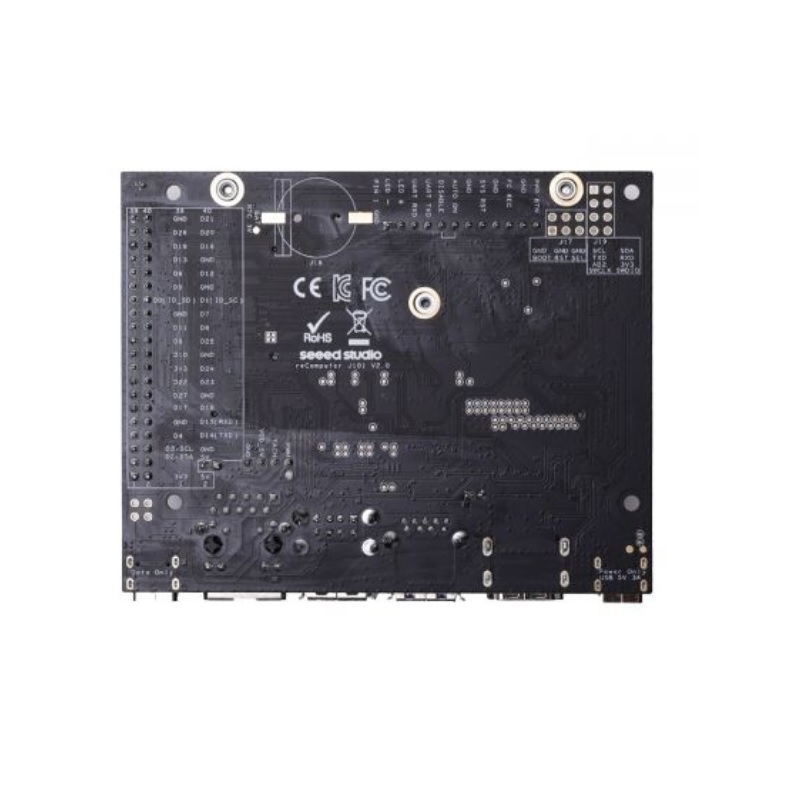

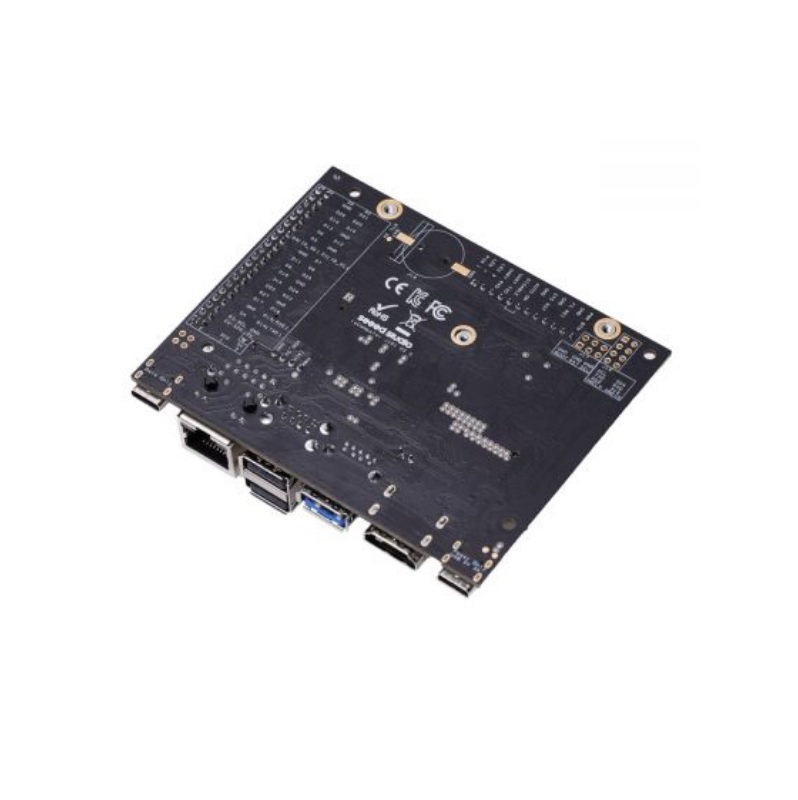

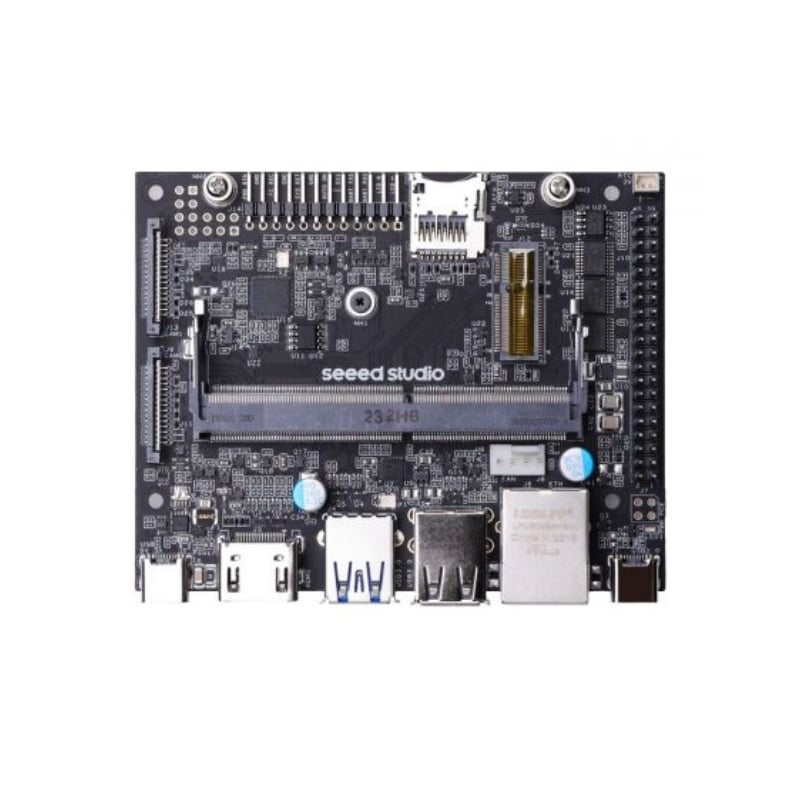

reComputer J101 Dev Kit Carrier Board for Jetson Nano, With micro SD card slot

reComputer J101 Carrier Board for Jetson Nano, same size of NVIDIA Jetson Nano Dev Kit carrier board, micro SD card slot, HDMI2.0, USB, CSI, M.2 key E, GPIO

reComputer J101 carrier board is a cost-effective and interface-rich NVIDIA Jetson Nano compatible carrier board. It included HDMI2.0, 2x USB 2.0, 1x USB 3.0, micro SD card slot, 2 xCSI, M.2 key E WIFI / BT, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has nearly the same functional design and exactly the same size as the carrier board of NVIDIA Jetson Nano B01 Developer Kit.

J101 v2 is a cost-effective, high-performance, interface rich NVIDIA Jetson Nano compatible carrier board, providing SD card function(CLK frequency 48MHz), HDMI 2.0, Gigabit Ether– net, USB3.0, USB2.0, M.2 key E WIFI / BT, CSI cameras, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has nearly the same functional design and exact the same size as the carrier board of NVIDIA Jetson Nano 2GB DEVELOPER KIT.

Applications:

1. Pedestrian detection by Edge Impulse
2. Hard hat detection and build custom PPE detection
3. Pose Estimation with always AI
4. Visual anomaly detection using NVIDIA Deep-stream IoT
5. Retail store items detection
6. Wildfire detection
7. Animal detection

Features:

1. Perfectly suited: Design for Jetson Nano Module (260-pin SODIMM).
2. Dev Kit carrier board alternative: 1:1 matches the size and nearly the same functional design as the carrier board of Nvidia’s official Nano Developer kit.
3. Expandable storage: SD card slot for storage expansion of Nano module (16GB eMMC).
4. Rich peripherals: Higher performance stability consists of USB 3.0, USB 2.0 ports, M.2 key E for WIFI, RTC, Raspberry Pi GPIO 40-pin, and so on.
5. Super cost-effective: Suitable for the good start and quick evaluation of AI applications.
6. Comprehensive certificates: FCC, CE, RoHS(Certification received in early Sept)

Specifications:

1. Model: reComputer J101
2. Module Compatibility: Jetson Nano series
3. Power supply: 3.3V
4. Micro SD card: 1 x Micro SD card slot (48MHz CLK Frequency)
5. PCB Size / Overall Size: 100mm x 80mm
6. Display; 1 x  HDMI
7. M.2 Key E: 1 x M.2 Key E
8. USB 2.0: Type A Stacked Connectors, Type C Connectors x2

9. USB 3.0: Type A Connector

10. Gigabit Ethernet: RJ45 Connector

11. HDMI: HDMI Type A Connector

12. M.2 Key E Socket
13. Ethernet: 1 x  Gigabit Ethernet (10/100/1000M)
14. CSI Camera: 2 x CSI

Packages Includes:

1 x reComputer J101 Carrier Board for Jetson Nano
