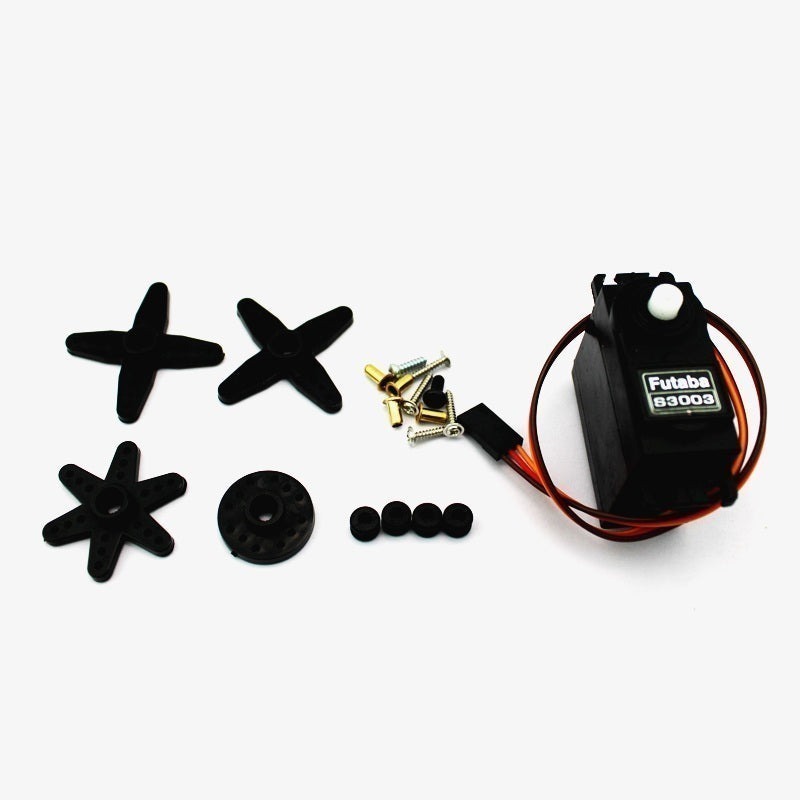

S3003 Servo Motor Futaba

The Futaba Compatible S3003 Plastic Geared Servo Motor is a decent servo for every hobbyist and electronics student. The powerful motor is PWM controlled for easy interfacing.

​Features:​

• Control System: +Pulse Width Control 1520usec Neutral
• Required Pulse: 3-5 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8-6.0 Volts
• Operating Temperature Range: -20 to +60 Degree C
• Operating Speed (4.8V): 0.23sec/60 degrees at no load
• Operating Speed (6.0V): 0.19sec/60 degrees at no load
• Stall Torque (4.8V): 44 oz/in. (3.2kg.cm)
• Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm)
• Operating Angle: 45 Deg. one side pulse traveling 400usec
• Continuous Rotation Modifiable: Yes
• Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
• Current Drain (4.8V): 7.2mA/idle
• Current Drain (6.0V): 8mA/idle
• Motor Type: 3 Pole Ferrite
• Potentiometer Drive: Indirect Drive
• Bearing Type: Plastic Bearing
• Gear Type: All Nylon Gears
• Connector Wire Length: 12"
• Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
• Weight: 1.3oz. (37.2g)

Application:

• Futaba S3003 High torque Dual ball bearing Servo motors for robotics and industrial application, It provides 7Kgcm torque at 6V, Perfect Compatible with Hitec HS-311.
