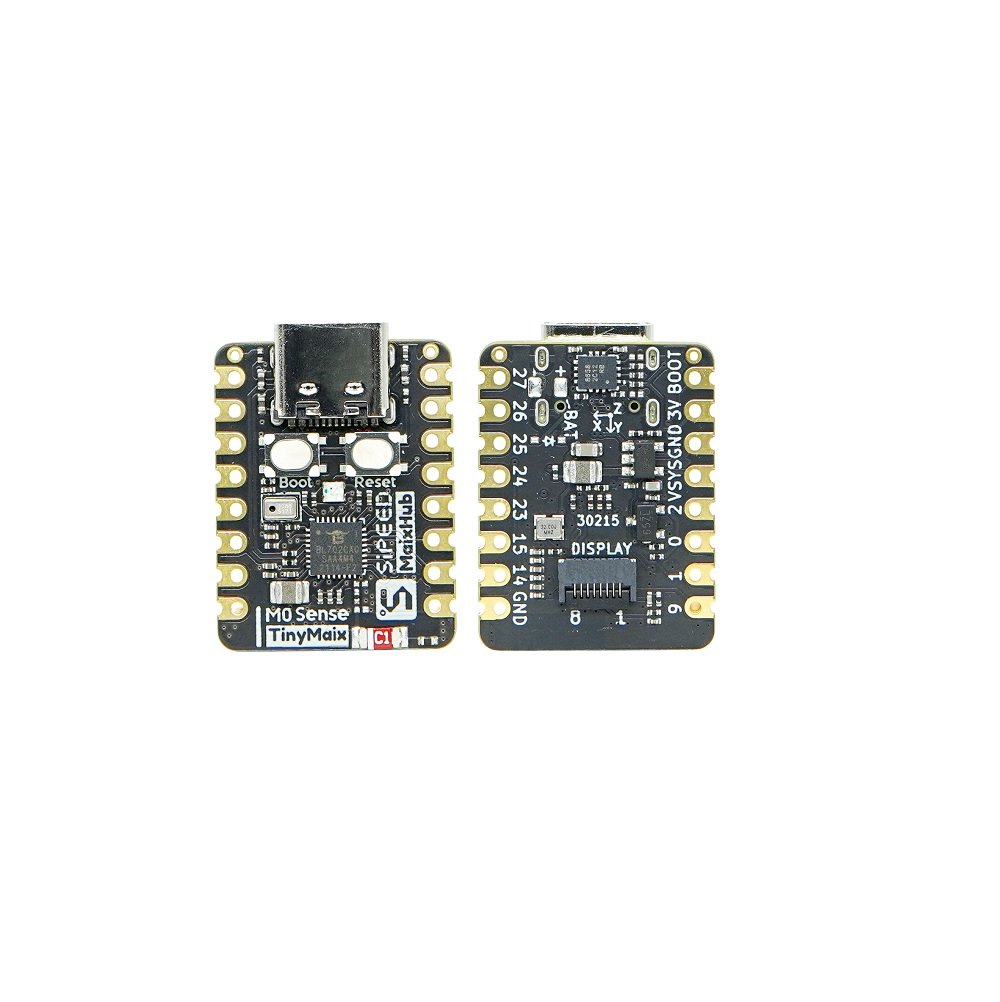

Sipeed M0sense with LCD

Sipeed M0sense is an  a IOT development board based on BL702 of Bouffalo Lab, it’s RISC-V architecture, and supports low-energy Bluetooth. There is an 8Pins FPC connector for connecting the LCD screen, 1 microphone, 1 RGB LED and a six-axis sensor chip on this board. One USB 2.0 FS routes to the Type-C interface.

Applications:

1. Smart appliances
2. robot
3. Intelligent Vehicle engine
4. Intelligent access control
5. Interlligent agriculture
6. Passenger flow sraristics
7. retail
8. Handwritten Numeral Recognition

Features:

1. Powerful chip support: Main chip BL702 RISC-V 144MHz
2. Supporting edge machine learning: Developing Edge Computing and Machine Learning Capabilities with the TinyMaix Inference Framework
3. Provide human-computer interaction: Onboard screen interface (Optional 0.68 inch 80×160 solution screen)
4. Mass storage device: Thumb size but with 132KB RAM, 192KB ROM, 512KB Flash capacity
5. Bluetooth wireless transmission: Support BlueTooth V5.

Specifications:

1. Main-chip BL702: 32 bits RISC-V with FPU (Max Freq 144MHz)

2. Memory: 132KB RAM，192KB ROM, 512KB Flash
3. Main-chip BL702: USB 2.0 FS route to USB Type-C to burn firmware

Main-chip BL702:

1. Two 32-bit timer
2. Eight DMA channels
3. One SPI
4. Two UART
5. One I2C interface
6. One I2S
7. Five PWM
8. One 12-bit ADC
9. One 10-bit DAC

Wireless：

1. 2.4Ghz BlueTooth V5.0
2. 1Mbps and 2Mbps BLE

Packages Includes:

1 x Sipeed M0sense with LCD
