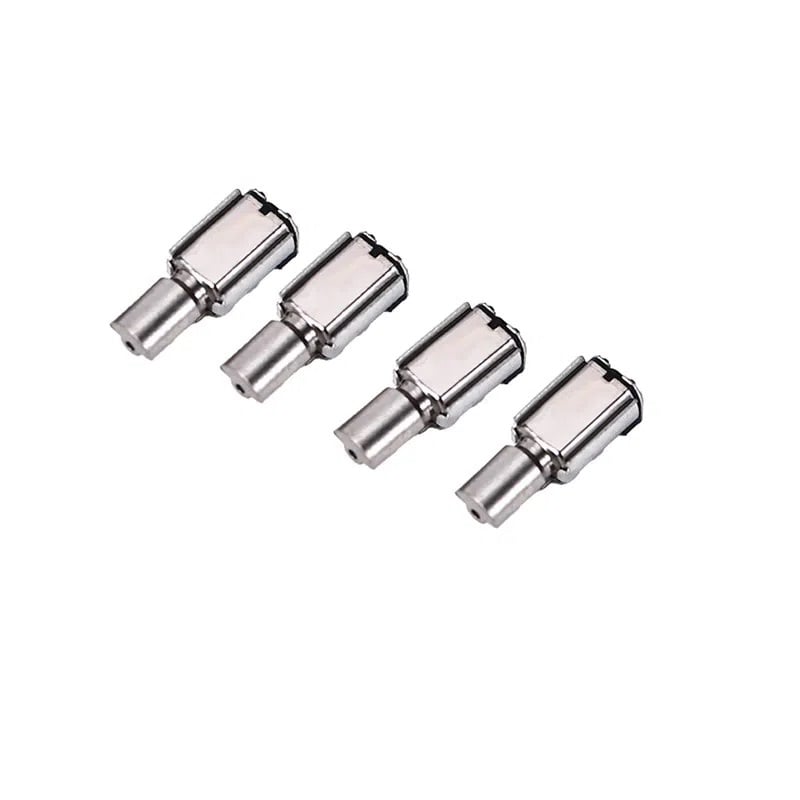

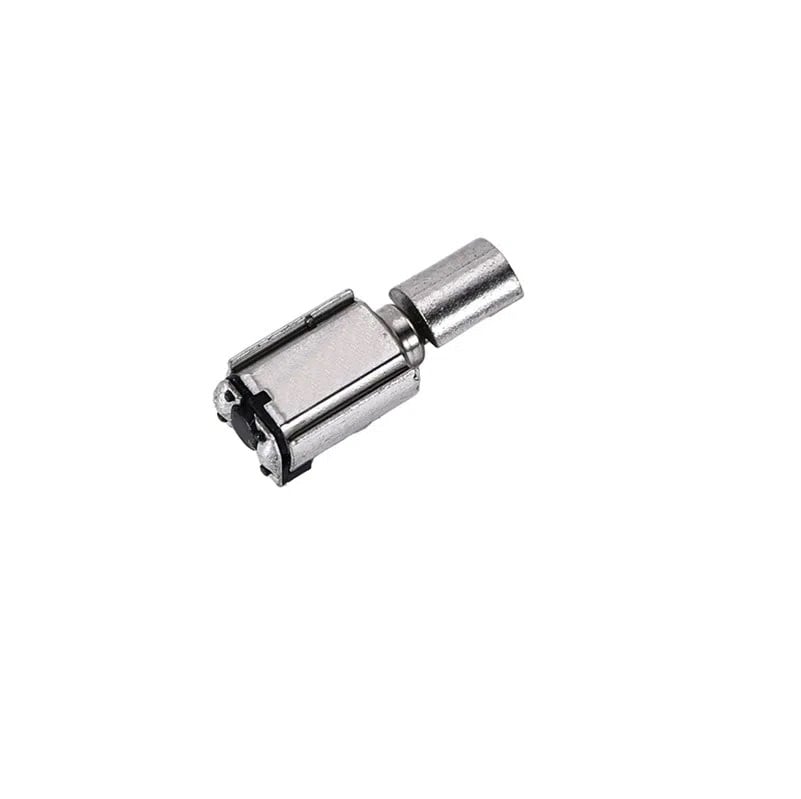

SMD type Vibration motor H3.4*W4.4*L12.2 with 12000±2500 RPM

SMD is the acration of Surface Mounted Devices, which is one of the SMT (Surface Mount Technology) components, including CHIP, SOP, SOJ, PLCC, LCCC, QFP, BGA, CSP, FC, MCM, and so on. This miniaturized component is called an SMD device (or SMC, chip device). The process of assembling components onto PCB is called the SMT process.

SMT is the abbreviation of Surface Mount Technology, meaning: Surface assembly Technology, is currently the most popular Technology and process in the electronic assembly industry.SMT is a new generation of electronic assembly technology, which compacts the traditional electronic components into a device of only one tenth of the volume,

Features:

1. Super small size
2. High stability
3. High-Temperature Resistance
4. Quick and easy to assemble

Specifications:

1. Dimension:H3.4*W4.4*L12.2
2. Rated Voltage: 3.0V
3. Rated Speed: 12000±2500rpm
4. Rated Current: 85mA max
5. Counterweight: 0.3g
6. Life Time: 3.0V, 2.5S on, 2.5S off, 300,000 cycles
7. Vibration force: 0.7G

Package Includes:

1 x SMD type Vibration motor H3.4*W4.4*L12.2 with 12000±2500 RPM
