SQ001 Electric Soldering Iron with Adjustable Temperature, Programmable STM32 Chip and Digital OLED Display

The SQ001 pocket-size mini  Electric soldering iron is an upgraded version of the TS100 internal heat intelligent numerical control soldering iron. Lightweight design, easy to install and use, easy to remove and store, comfortable control handle, high-efficiency heating end, simple control interface. It is a favorite tool for electronic engineers and electronic maintenance enthusiasts.

It can work in DC 12-24V with an OLED screen display, key temperature adjustment, and an external independent power supply. In DC 19V 40W state, 15 seconds temperature rise to 300 ℃. SQ-001 intelligent temperature control between 100-400 degrees, more stable temperature, instantaneous temperature rise, automatic sleep, over temperature alarm, and other functions.

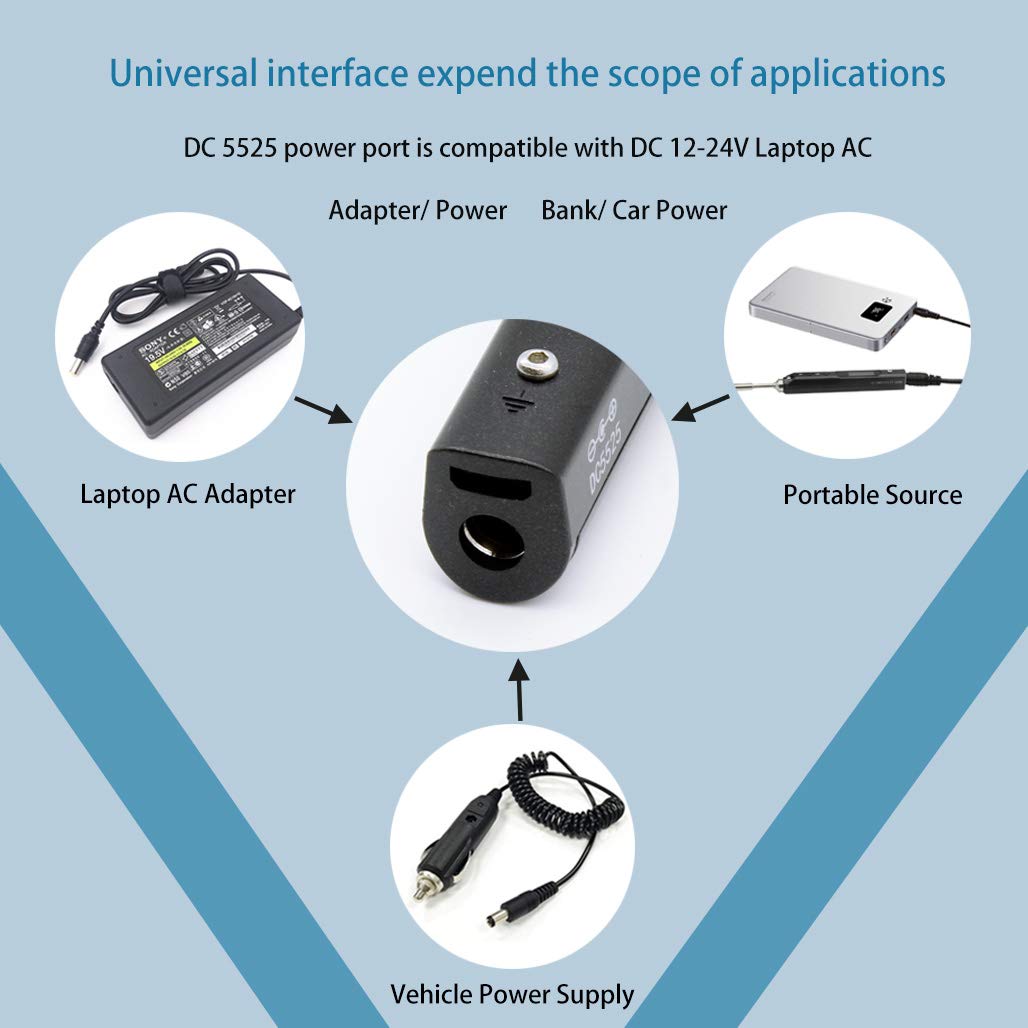

This soldering iron comes with a detachable 80cm cable with 5.5mm Male DC jack to connect the soldering Iron and XT60 Male connector to connect the Battery or DC Power source with 12 to 24 Volt power supply.

with a Micro USB interface, one can set temperature rise curve, user-defined function key, and firmware upgrade function through parameter file. Additional functions: application layer open source design. You can change the internal parameter settings according to your own needs to meet more and more performance needs of different customers.

Note: This Iron is available in two colors (Blue and Black ) we will ship it randomly according to availability.

Features:

1. Mini Soldering Iron Controller: SQ-001 is based on 304 stainless steel nested ABS + PC shell, Integrated special power interface, Safety circuit design, and Anti-static structure. The perfect combination of embedded STM32 processor, dual temperature sensor, and acceleration transmitter.
2. Make SQ-001 realize intelligent temperature control between 100-400 degrees, more stable temperature, instantaneous temperature rise, automatic sleep, over-temperature alarm, and other functions.
3. Mini Soldering Iron Heating end: The heating end adopts an internal heating core, factory preset temperature: 300 celsius, temperature stability range: +/- 2%.

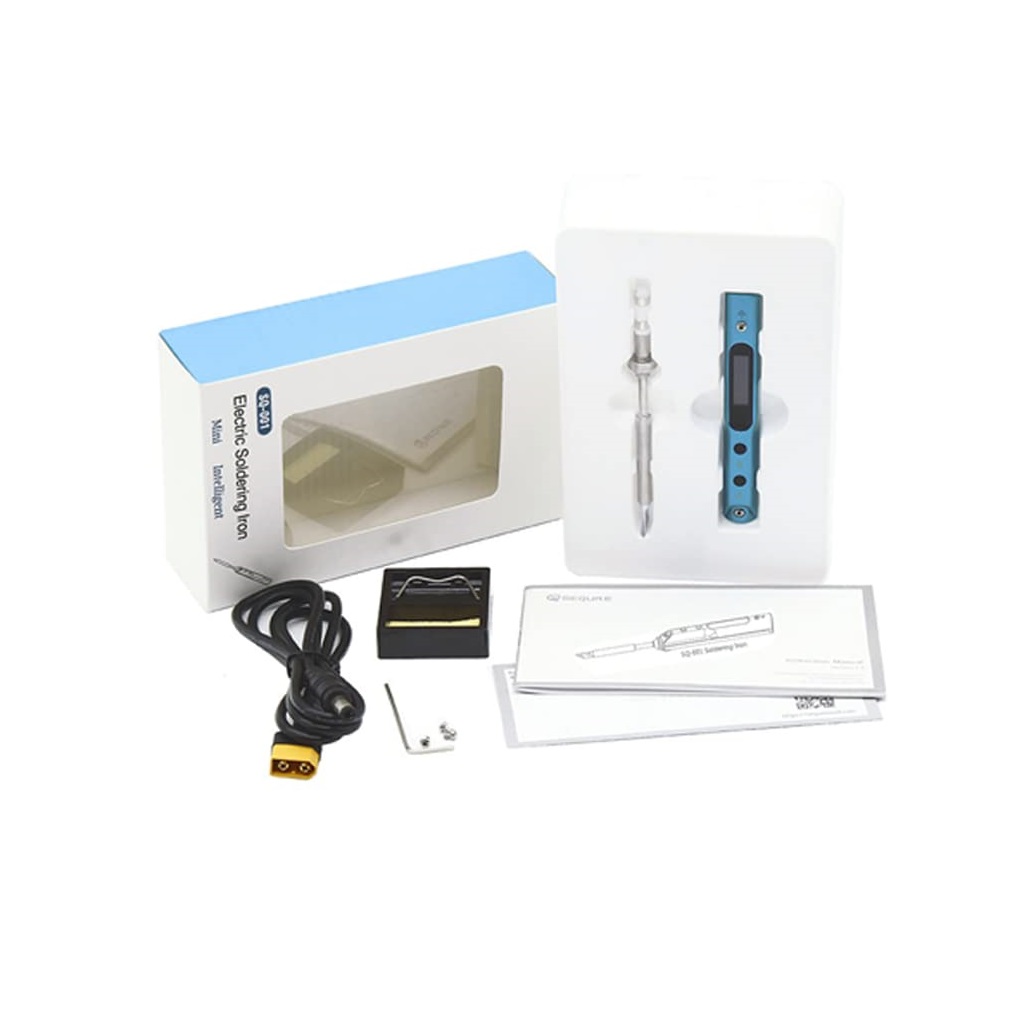

Package Includes :

1 x SQ-001 Controller (solder Gun Body Itself)

1 x Solder Tip

1 x DC5525 power Cable with XT60 Male connector- 80 cm

1 x Hex Key with 3 extra Screw

1 x Mini Bakelite Stand/Holder

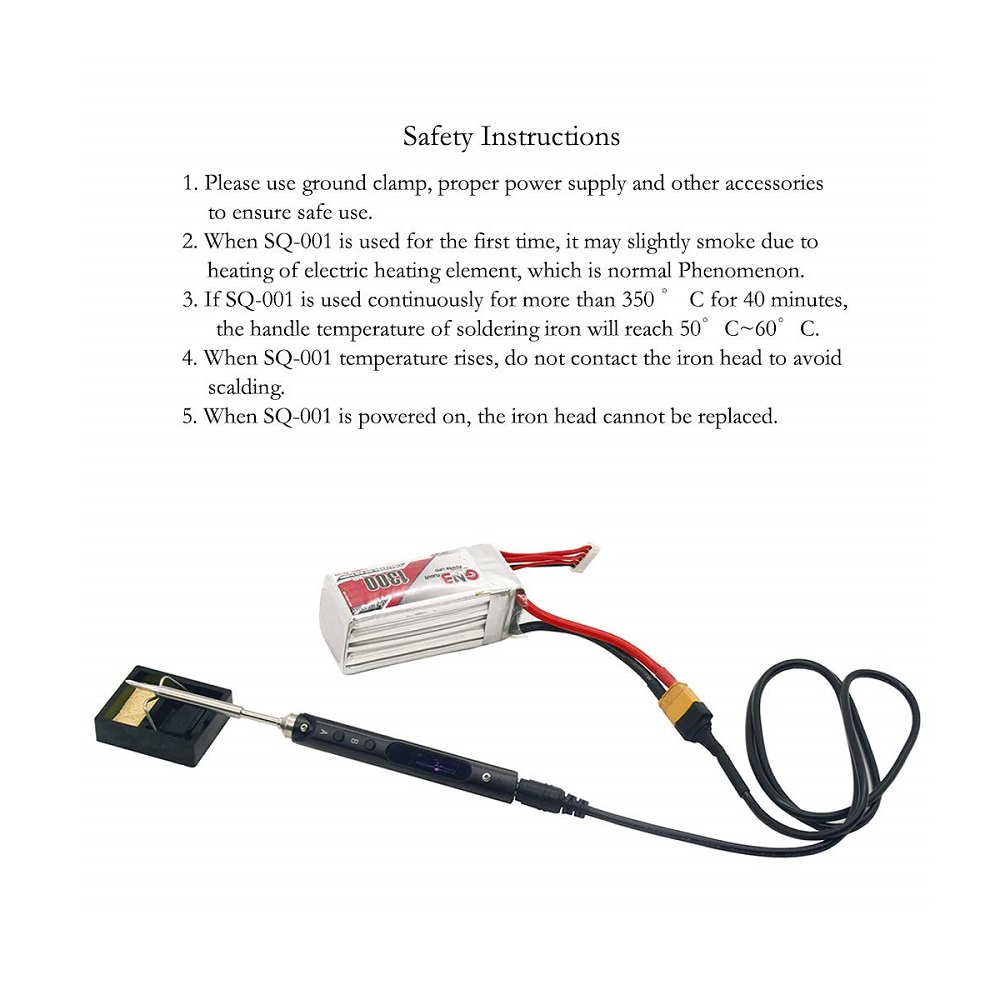

1 x Safety Instruction

1 x User Manual
