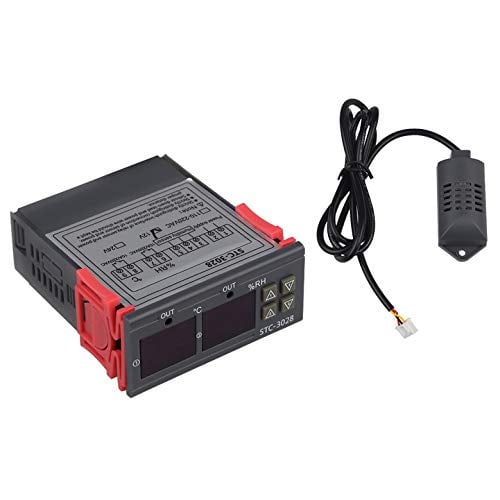

STC-3028 AC110-220 Dual Display Dual Temperature Adjustable Temperature Controller with 1M Cable

This is a dual-display thermostat temperature controller. The temperature controller has the characteristic of high precision, high sensitivity, high stability. Supports temperature correction and support for energy loss. Control temperature by setting the temperature setting value and the difference value. Alarm when the temperature exceeds the temperature limit or when sensor error.

Note: Product may vary from Images shown in terms of body and cable color according to the availability

Features:

1. ABS flame retardant plastic shell, safer to use.
2. Microcomputer intelligent digital display thermostat, dual display dual temperature.
3. With a Dual NTC Sensor for convenient usage, the line length is about 1 meter.
4. The large and clear digital display shows measuring temperature, high accuracy of temperature measuring, and controlling.
5. Suitable for automatic switching of refrigeration and heating devices such as seafood machines and cooling water machines.
6. Switch the modes between cool and heat;

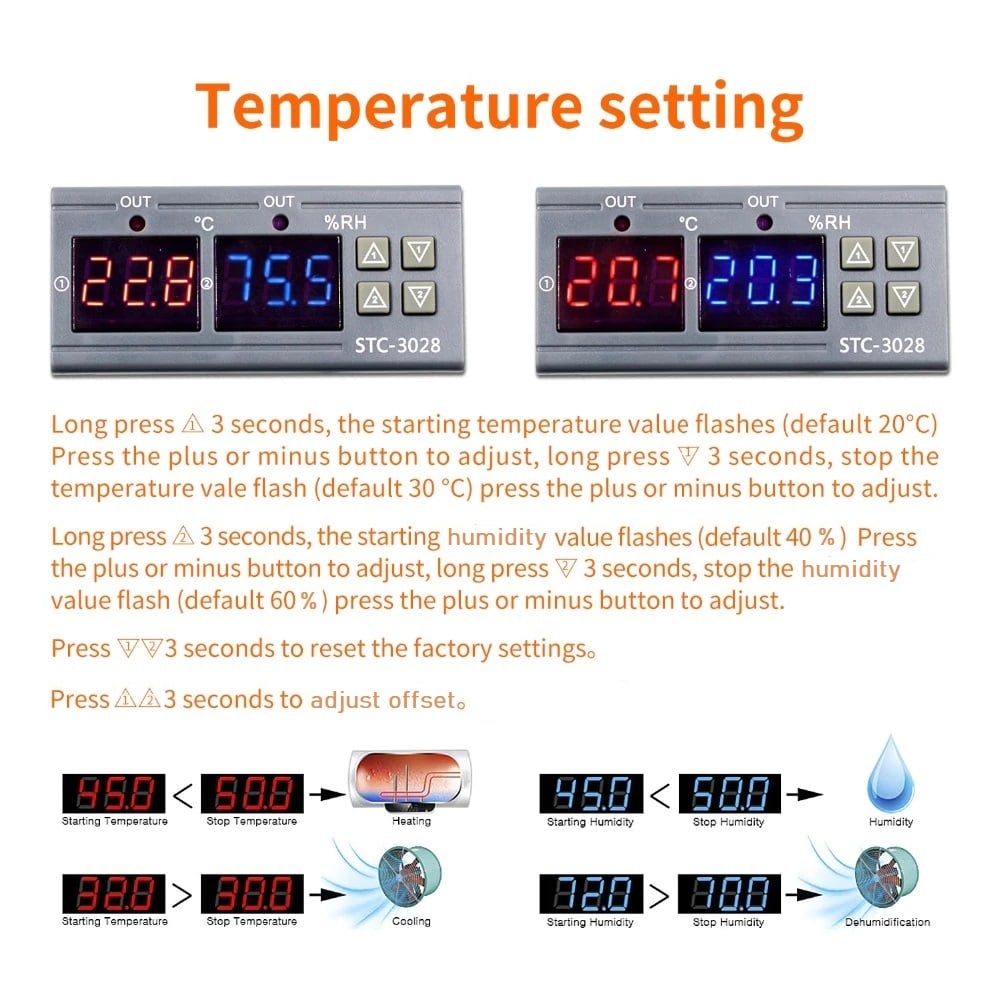

7. Control temperature by setting the temperature value and the difference value;
8. Temperature calibration;
9. Refrigerating control output delay protection;
10. Alarm when the temperature exceeds the temperature limit or when sensor error.
11. Temperature measuring range: 0~100ºC Celsius
12. Measuring humidity range: 00%RH~+100%RH
13. Accuracy: 0.1ºC Celsius
14. Power supply: AC110-220
15. Sensor: NTC sensor

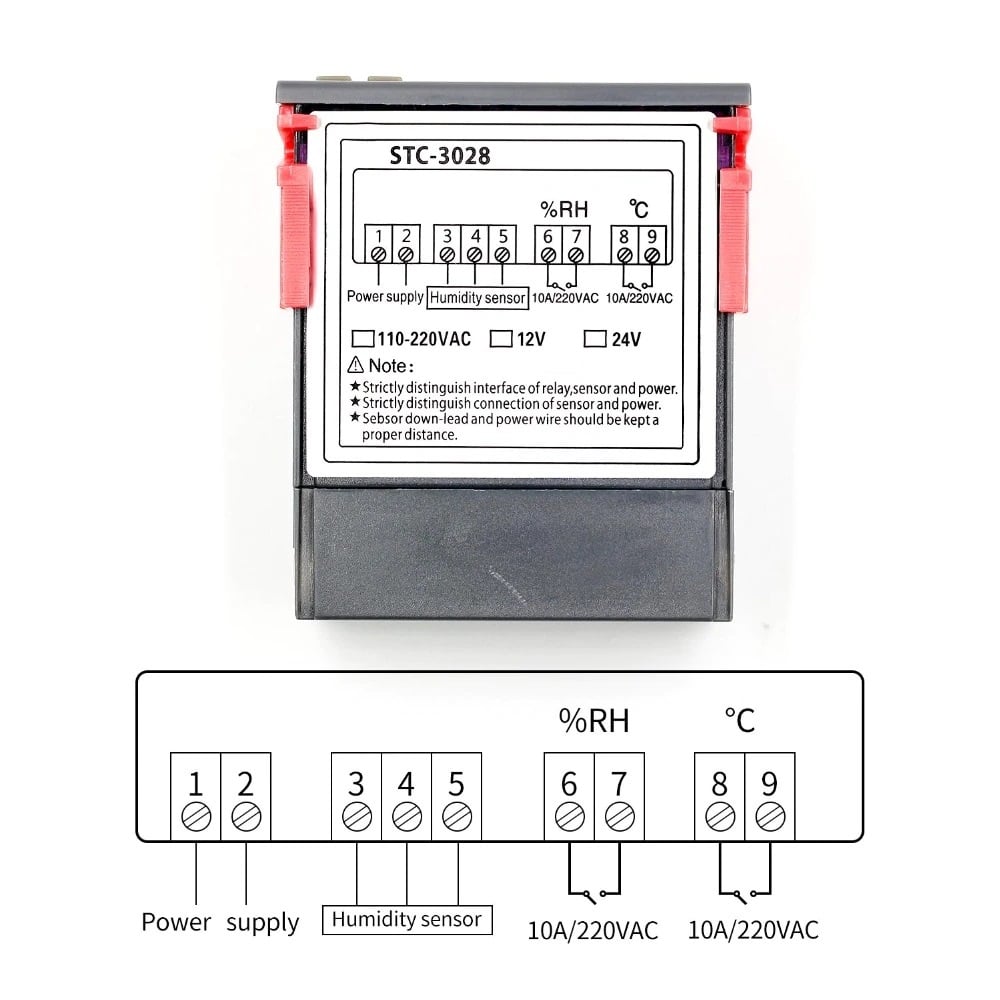

16. Relay contact capacity: Cool (10A/240VAC); Heat (10A/240VAC)
17. Sensor length: 1 meter (include the probe)
18. Shell material:PC and ABS

Specifications:

1. Model: STC-3028
2. Optional Voltage: AC110-220
3. Temperature Control Range: 110 C
4. Screen Display: Dual Screen Dual Display
5. Machine Power Consumption: Less Than 3W
6. Temperature Measurement Accuracy: 1 C
7. Resolution: 0.1 C
8. Ambient Temperature: 0~60C
9. Relative Humidity: 20%~85% (no condensation)
10. Machine Size: Approx. 75 x 34.5 x 85mm

Package Includes:

1 x STC-3008 AC110-220 Dual Display Temperature Adjustable Temperature Controller

1 x NTC Sensor  1M Cable
