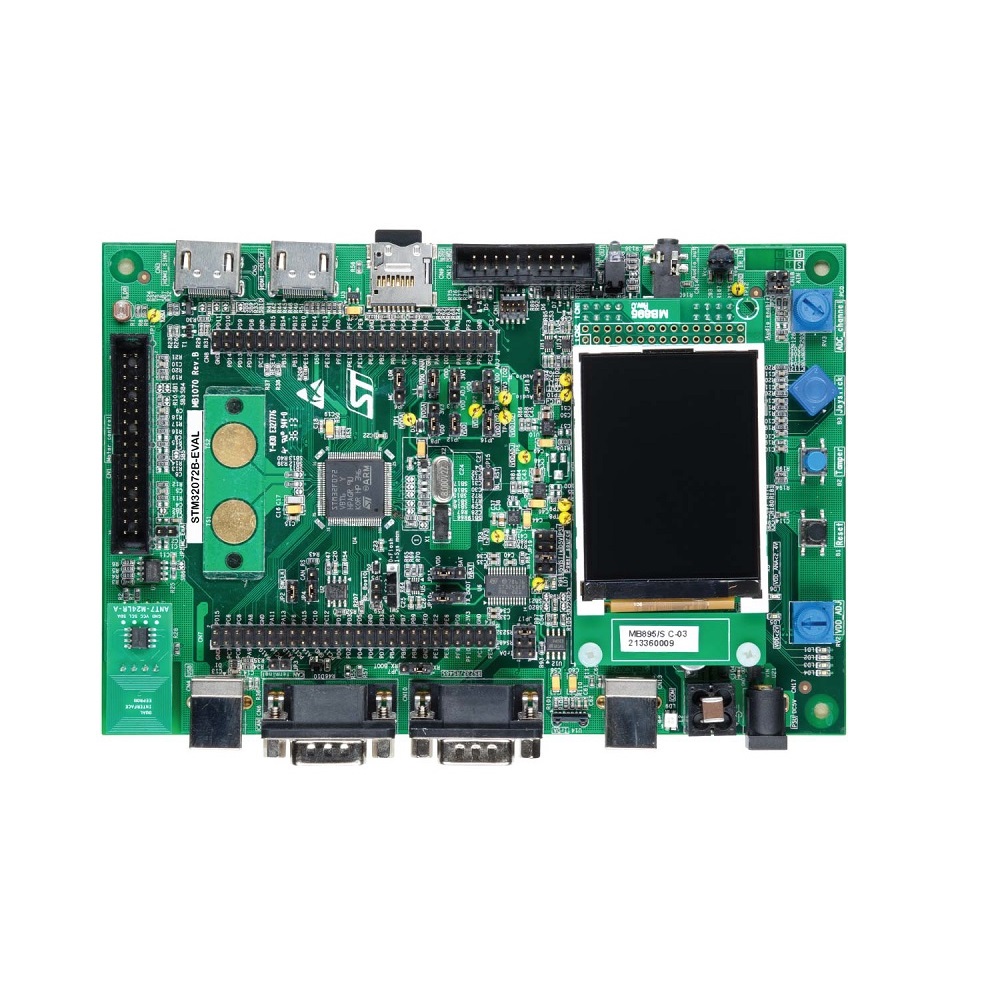

STMICROELECTRONICS Evaluation Board, STM32F072VB MCU, 240×320 TFT Colour LCD, 2GB SPI MicroSD Card

The STM32072B-EVAL is an Evaluation Board designed as a complete demonstration and development platform for ARM cortex-M0 core-based STM32F072VBT6 microcontroller. It features two I²Cs, two SPIs, four USARTs, one CAN, 12-bit ADC, 12-bit DAC, two GP comparators, internal 16kB SRAM and 128kB flash, USB FS, Touch sensing, CEC, SWD debugging support. The full range of hardware features on the board is designed for the evaluation of all the peripherals and the development of user-specific applications. Extension headers are used to easily connect a daughter board or a wrapping board for user-specific applications. The ST-LINK/V2 is integrated on the board as embedded in-circuit debugger and programmer for the STM32 MCU.

Note: for more technical details go through Datasheet in the attachment section

Features:

1. 5V Power supply options – power jack, ST-LINK/V2 USB connector, user USB connector or daughter board
2. Stereo audio jack supports a headset with microphone connected to DAC and ADC of STM32F072VBT6
3. 2GB (or more) SPI interface microSD card
4. I2C compatible serial interface temperature sensor
5. RF E2PROM
6. RS232 and RS485 communication
7. IrDA transceiver
8. IR LED and IR receiver
9. SWD debug support, ST-LINK/V2 embedded

Package Includes:

1 x STMICROELECTRONICS Evaluation Board, STM32F072VB MCU, 240×320 TFT Colour LCD, 2GB SPI MicroSD Card
