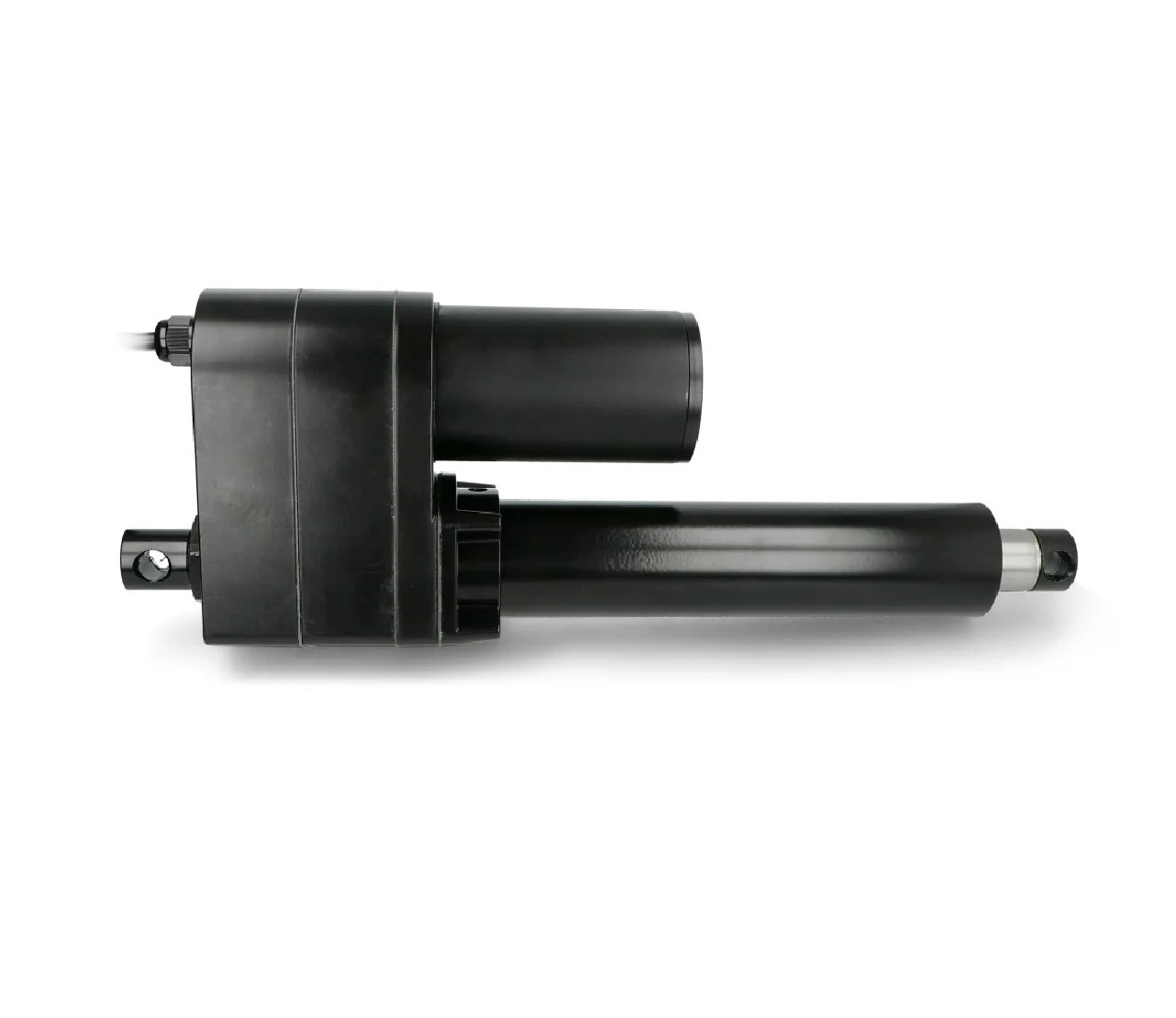

Stroke Length 100MM 5MM/S 8000N DC12V Electric Putter Electric Linear Actuator Putter for Doors /Windows

Electric putter, also known as push rod motor, electric cylinder and linear actuator.
The electric putter is an electric drive that converts the motor’s rotational motion into a straight reciprocating motion of the push rod.
Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control.
Main use: electric bed, electric sofa, electric stand lift rod, industrial electric lift system, camera frame, video machine, wedding system.
How it works:After the motor is slowed by the gear, drive a pair of screw nuts. The motor rotation into a linear motion, the use of motor reversal to complete the putter action. Such as through a variety of lever, rocker or connecting rod and other institutions to complete the rotation, shake and other complex movements.
Built-in stroke switch,and low noise design,noise level is less than 42d.

Applications:

1. Tilt adjustment of solar panels in photovoltaic installations
2. Element of precision and industrial automation systems
3. Opening and closing of industrial valves
4. Home automation – elements tilt windows and door sashes
5. Agricultural machinery components

Features:

1. Built-in stroke switch
2. Low noise design,noise level is less than 42dB
3. Electric putter, also known as push rod motor, electric cylinder and linear actuator.
4. The electric putter is an electric drive that converts the motor’s rotational motion into a straight reciprocating motion of the push rod.
5. Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control.
6. Main use: electric bed, electric sofa, electric stand lift rod, industrial electric lift system, camera frame, video machine, wedding system.

Specifications:

1. Motor type: permanent magnet dc motor drive
2. Rated voltage :12VDC
3. Maximum thrust/pull: 800N
4. Self-locking force: 200KG
5. Speed: 5 mm/s
6. Effective stroke :100mm
7. Standard protection level: IP54
8. Base noise design, noise level below 42dB
9. Ambient temperature:-26 to 50℃

Packages Includes:

1 x DC12V Electric Putter Electric Linear Actuator
