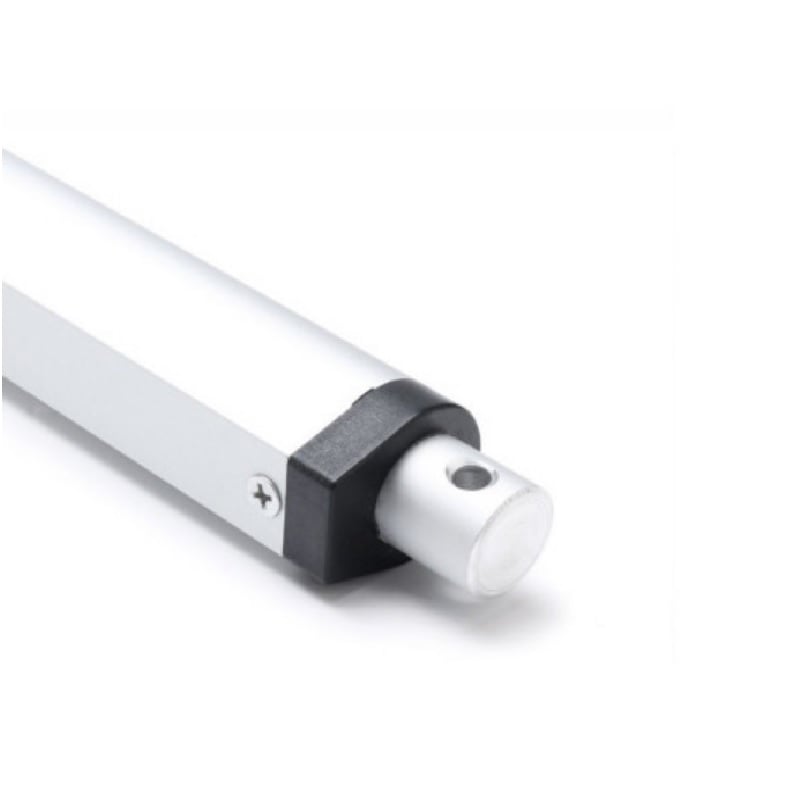

Stroke Length DC12V 500MM 7MM/S 1500N Putter Electric Linear Actuator

This Miniature Linear Actuator Stroke Length 500mm, 7mm/S, 1500N, 12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push-rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro-motion control switch, etc.

With Reliable performance, sensitive action stable running. Good environment adaptability. High-quality metal material, high-performance motor, built-in stroke switch. Maximum push/pull is up to 1500N, and stroke speed is up to 7mm/s when under no-load. These are commonly used in automotive, medical devices and engineering industry, agricultural machinery,

Applications:

1. Agricultural machinery
2. Industrial electric lifting system

Note: The actual product may vary in terms of color and markings.

Features:

1. Aluminum frame and extension tube
2. Compact Design
3. Built-in Limit Switch
4. Low Noise
5. Moisture-proof Surface
6. Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
7. Permanent magnet DC motor drive

Specifications:

1. Stroke Length (mm): 500
2. Operating Voltage: 12V
3. No Load Current (mA): 750
4. Body Material: Aluminum Alloy
5. Operating Temperature Range (C): -20 to 85
6. Noise Level (dB): <40
7. Cable Length (cm): 50
8. Protection Standard: IP52
9. Self Locking Force (N): 1500
10. Speed at Full Load (mm/Sec): 7
11. Speed at No Load (mm/Sec): 7
12. Weight: 1.449g

Packages Includes:

1 x Electric Linear Actuator
