T Motor Antigravity MN7005 KV115

T Motor Antigravity MN7005 KV115 is a BLDC Drone Motor for Thrust Requirements.  T-Motor’s MN7005 series is an ultralight, endurance-focused motor that was specially designed for various surveying applications. These motors are great for aerial photography!

This Ultra lightweight Antigravity 7005 T-Motors are available with an anti-high temperature curved magnet which increases motor performance by 5%. Energy-saving Antigravity-type Tiger motors have 1.5kg thrust with an efficiency of 13g/W. This type of T motor is made with specially imported German 7075 aviation aluminum alloy, strengthening the motor cap with a lightweight design. Contains an open structure for better cooling performance.

Features:

1. Imported German 7075 aviation aluminum
2. Ultra Lightweight 188g only
3. Anti-high temperature curved magnet
4. Motor performance increase by 5%

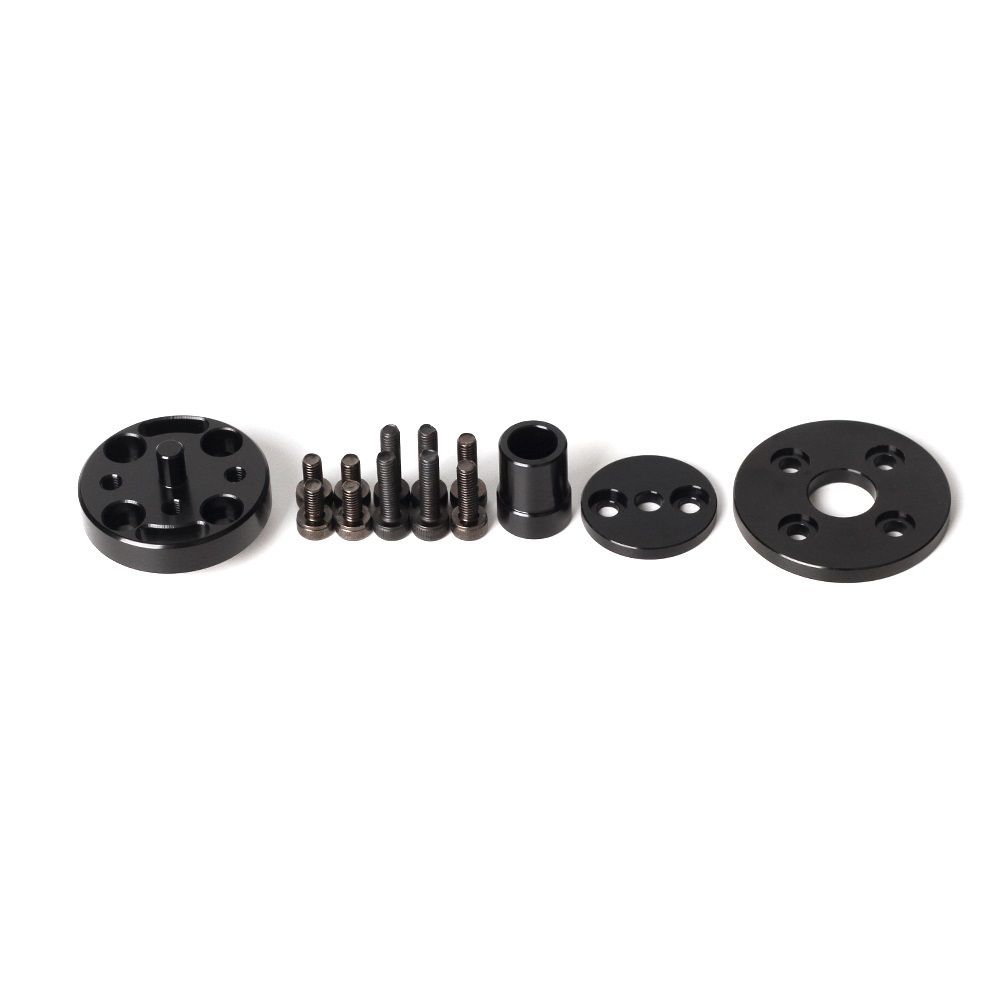

5. ATA01123 prop adapter for P22inch prop

Specifications:

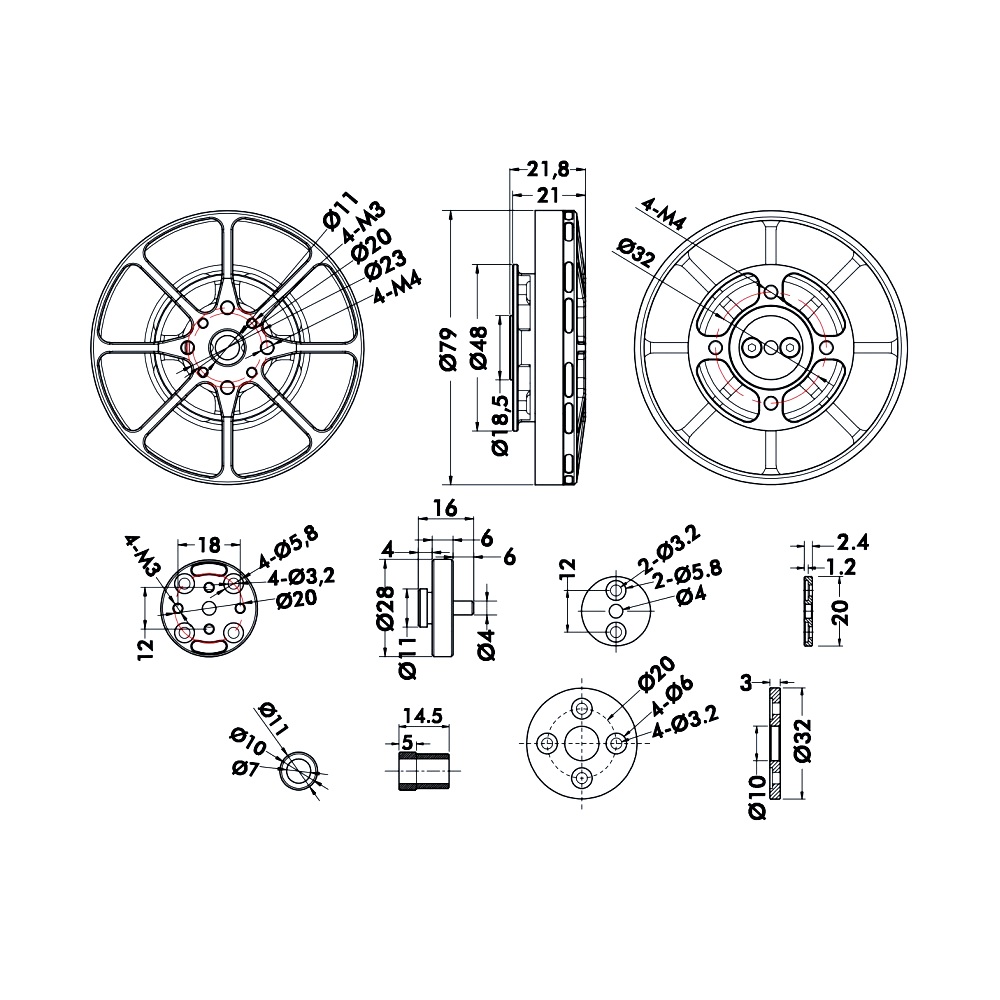

1. Motor size: ø79*21mm
2. Stator: Imported silicon steel sheet; Anti-rust treatment; 180° Chigh temperature-resisting coating
3. Configuration: 24N28P
4. Shaft Diameter: IN: 15mm
5. Bearing: Imported 6802ZZ
6. Magnet Level: 150°C high temperature resistance: Level E
7. Lead Cable: 60mm
8. Copper Wire: 180°C high temperature resistance: Level H
9. Coil Insulation Test: 500V
10. Centrifugal Cooling Design: YES
11. Rotor Dynamic Balance Standard: <5mg
12. Motor Dynamic Balance Standard: <10mg
13. IP: IP35

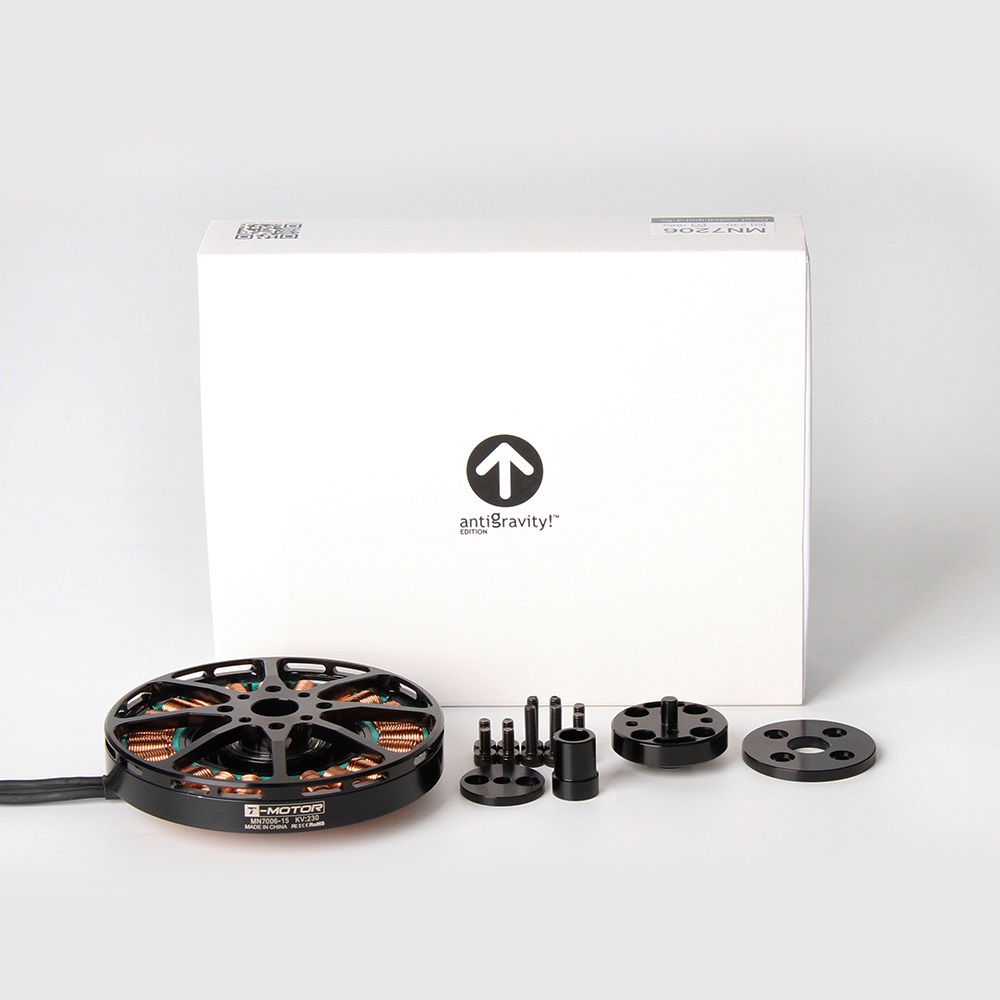

Package Includes:

1 x T Motor Antigravity MN7005 KV115
