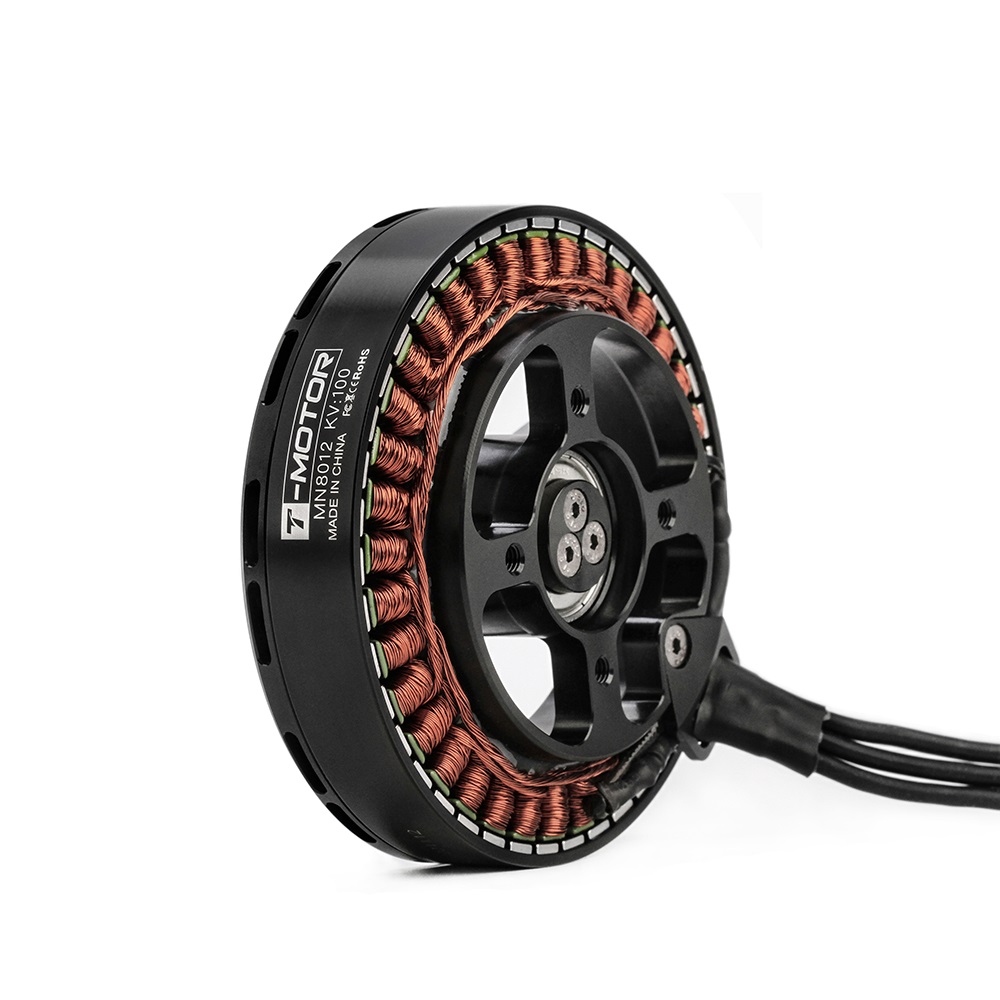

T Motor Antigravity MN8012 KV100

T Motor Antigravity MN8012 KV100 is a brushless drone motor that has high power, a fast reaction speed, and stable operation. MN8012 series Brushless motor from tiger motors provides high efficiency, low power consumption, and energy-saving performance

Features:

1. Ultra-light, high efficiency
2. Max.Thrust:11.8kg,
3. Motor Weight:351g,
4. Power Ratio:34
5. 220ºC high-temperature resistance Wires
6. Anti-rust treatment Stator with 180°C high temperature-resisting coatings

Specifications:

1. Configuration: 36N42
2. PRated Voltage(Lipo) 12S
3. Internal Resistance: 85mΩ
4. Rated KV: 100
5. Idle Current (24V): 1.0A
6. Peak Current (180s): 40A
7. Max. Power (180s): 1873W

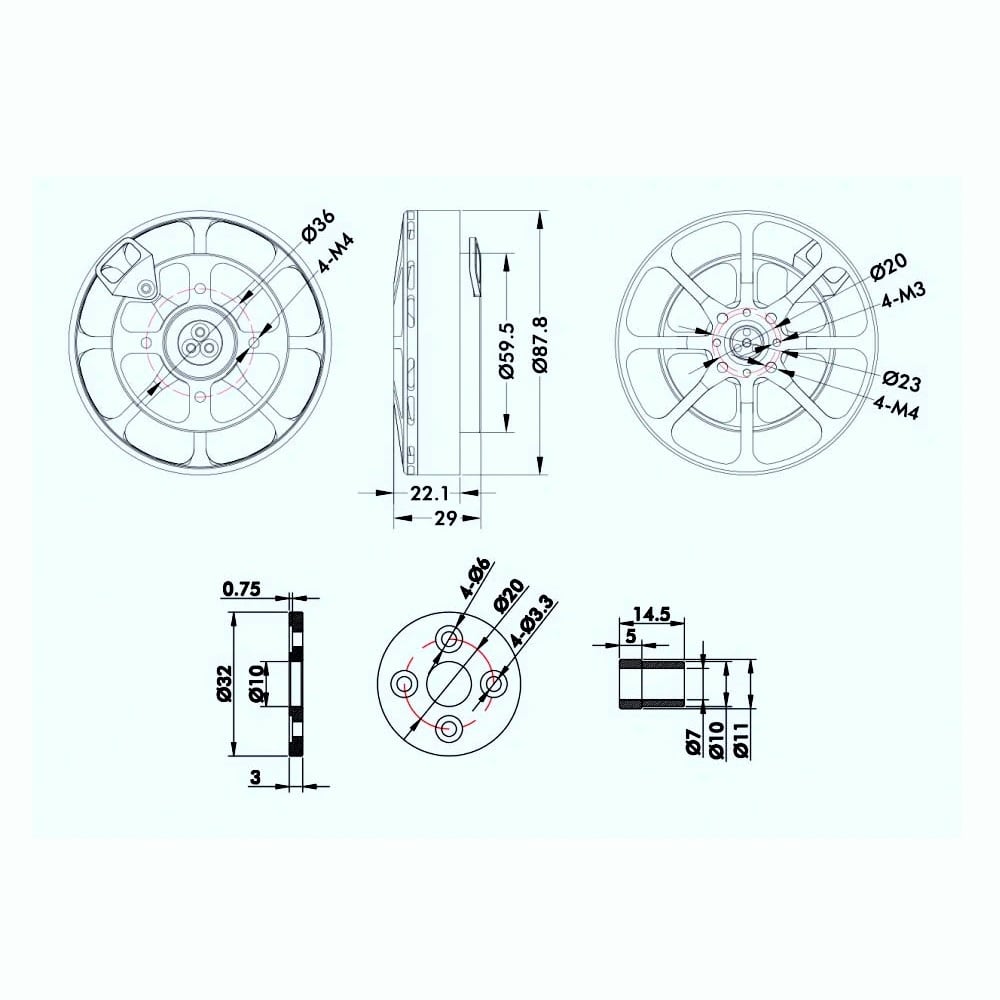

8. Motor Size: Φ87.8 * 29mm
9. Shaft Diameter IN: 12mm Bearing Imported 6901ZZ
10. Magnet Level: 180t high-temperature resistance
11. Cable Size: 16AWG*90mm Copper
12. Coil Insulation Test 1OOOV/Ss
13. Rotor Dynamic Balance Standard 15Mg
14. Protection: IP IP35
15. Weight (with Cable): 351 g
16. Package Weight: 600 g

Package Includes:

1 x T Motor Antigravity MN8012 KV100
