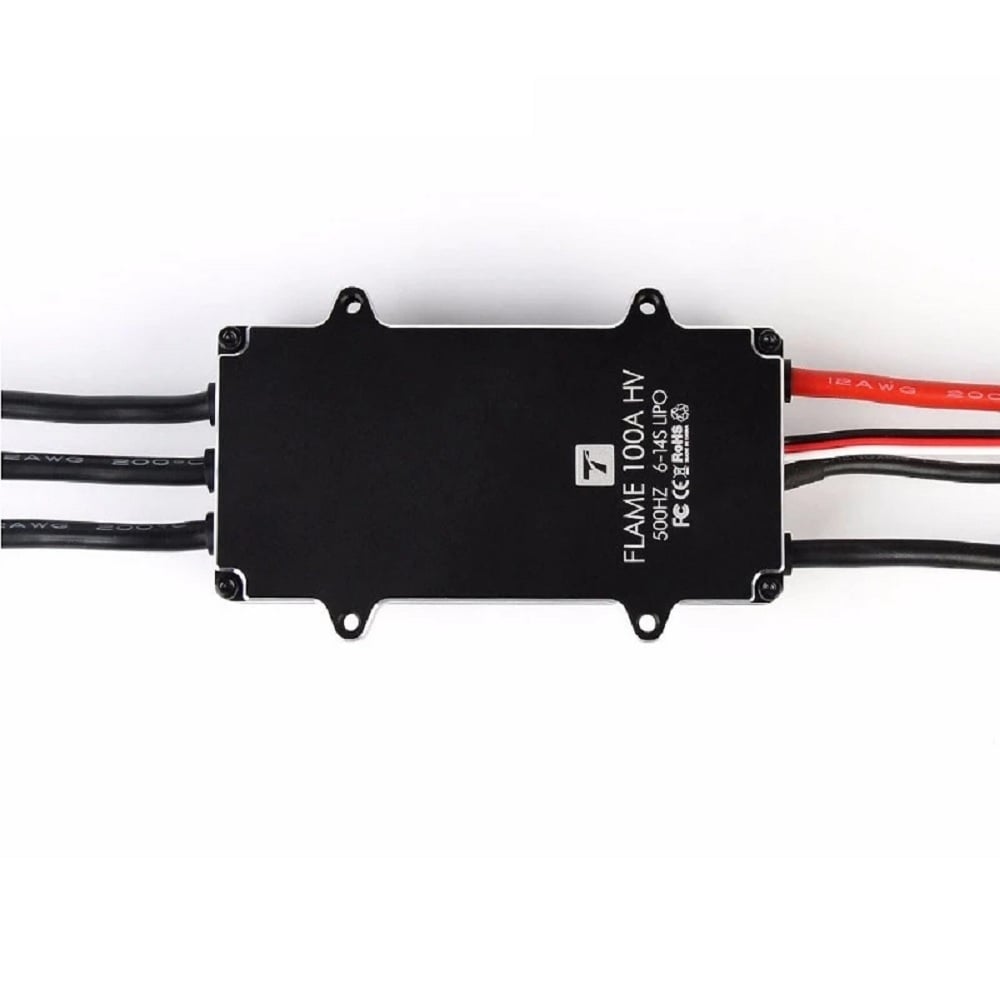

T Motor Flame 100A 6S ESC

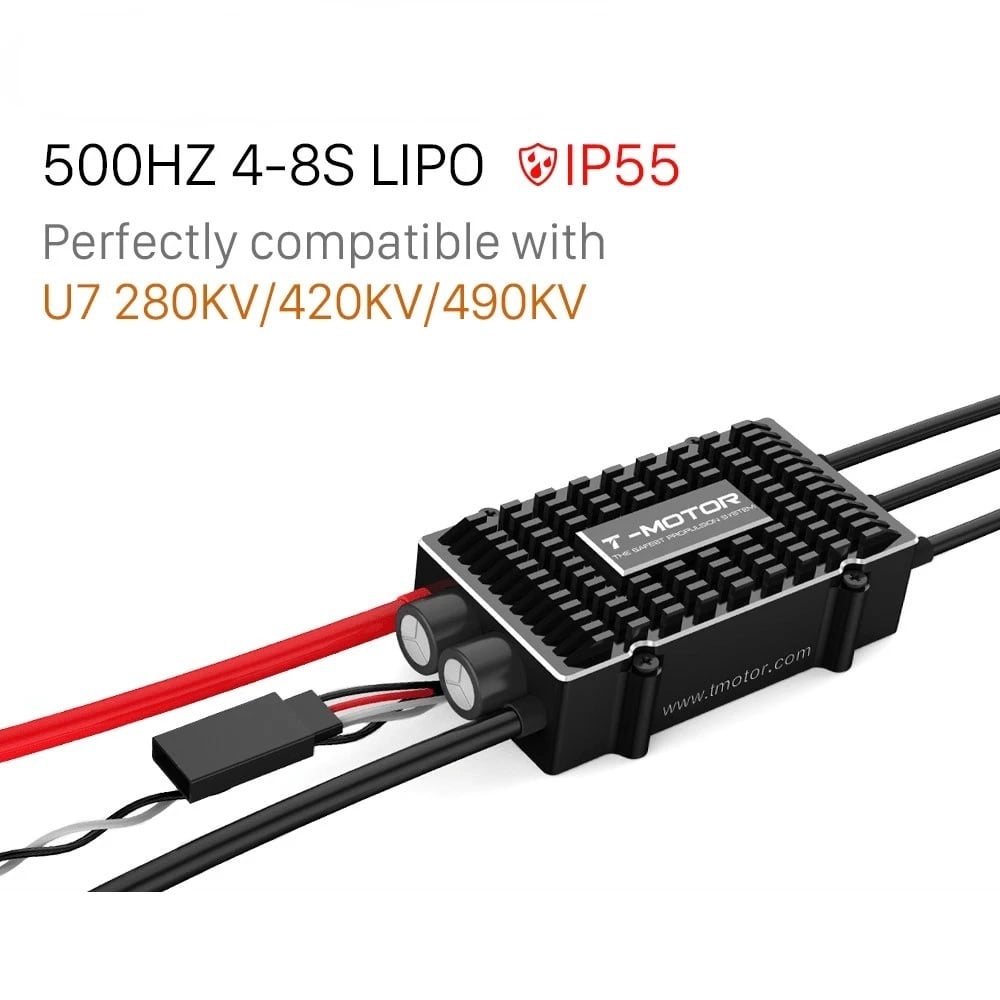

This T-motor 100A 500Hz 4-8S Flame Type ESC featured efficient and reasonable dissipation, layered structure. Waterproof and Dustproof with IP55 Industrial Standard. This motor is Compatible with U12 Motors and specially designed for multi-rotors. Tiger Flame ESC can give a continuous current of 100A, and a peak current of up to 120A (10S).

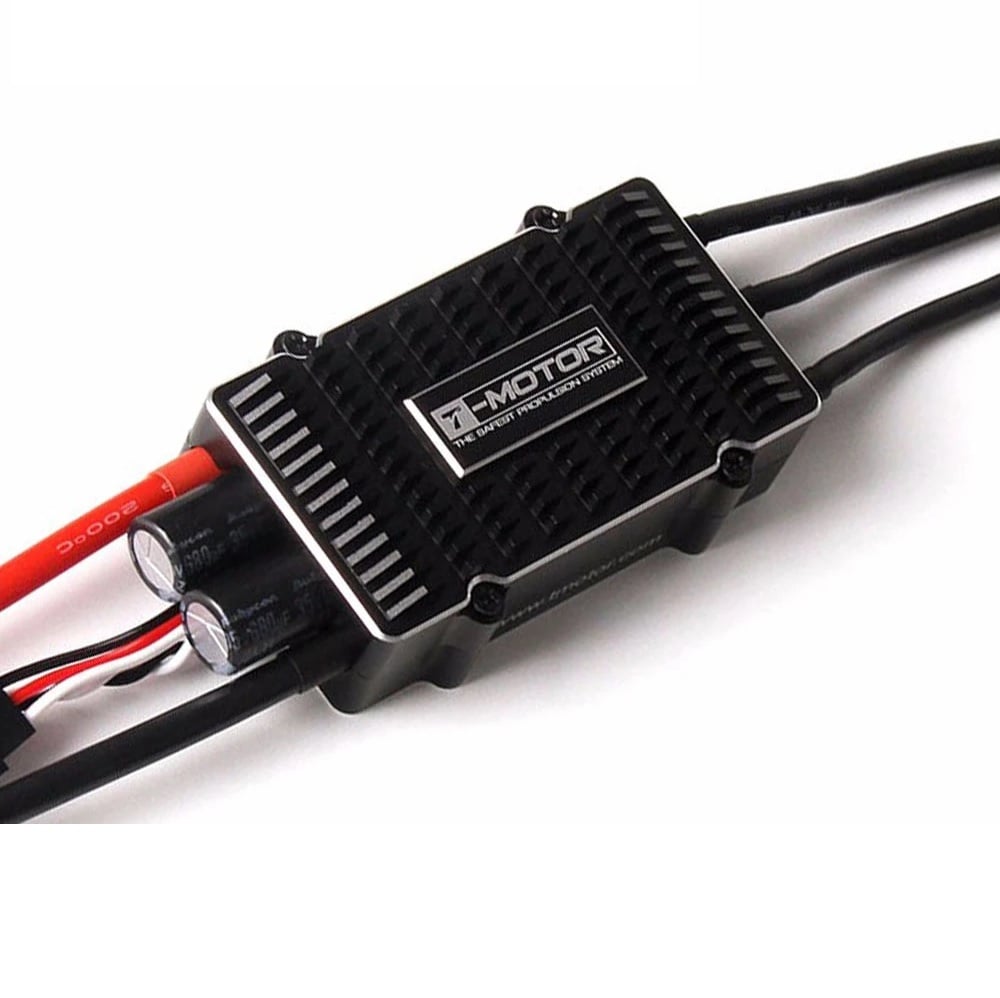

Tiger Motor provides professional-level power for large multi-rotor aircraft. The ESC is housed in a machined aluminum case providing both heat dissipation and protection.

Features:

1. High-performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
2. The throttle range can be configured to be compatible with all transmitters currently available on market.
3. Smooth, linear, quick, and precise throttle response.
4. CNC Aluminum alloy enclosure, IP55 PCB with nanotechnology, widely used in UAV agriculture, search and rescue, etc.
5. Separate voltage regulator IC for the microprocessor to get a better anti-jamming capability.
6. Multiple protection features: Low-voltage cut-off protection / over-heat protection/throttle signal loss protection.
7. USB supported. The firmware of the ESC can be updated by the USB adapter.
8. Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field.

Specifications:

1. Output: Continuous 100A, Burst 120A up to 10 Secs.
2. Input Voltage: 4-8 cells lithium battery.
3. Refresh Rate: 500Hz
4. Protection: IP57
5. BEC: No

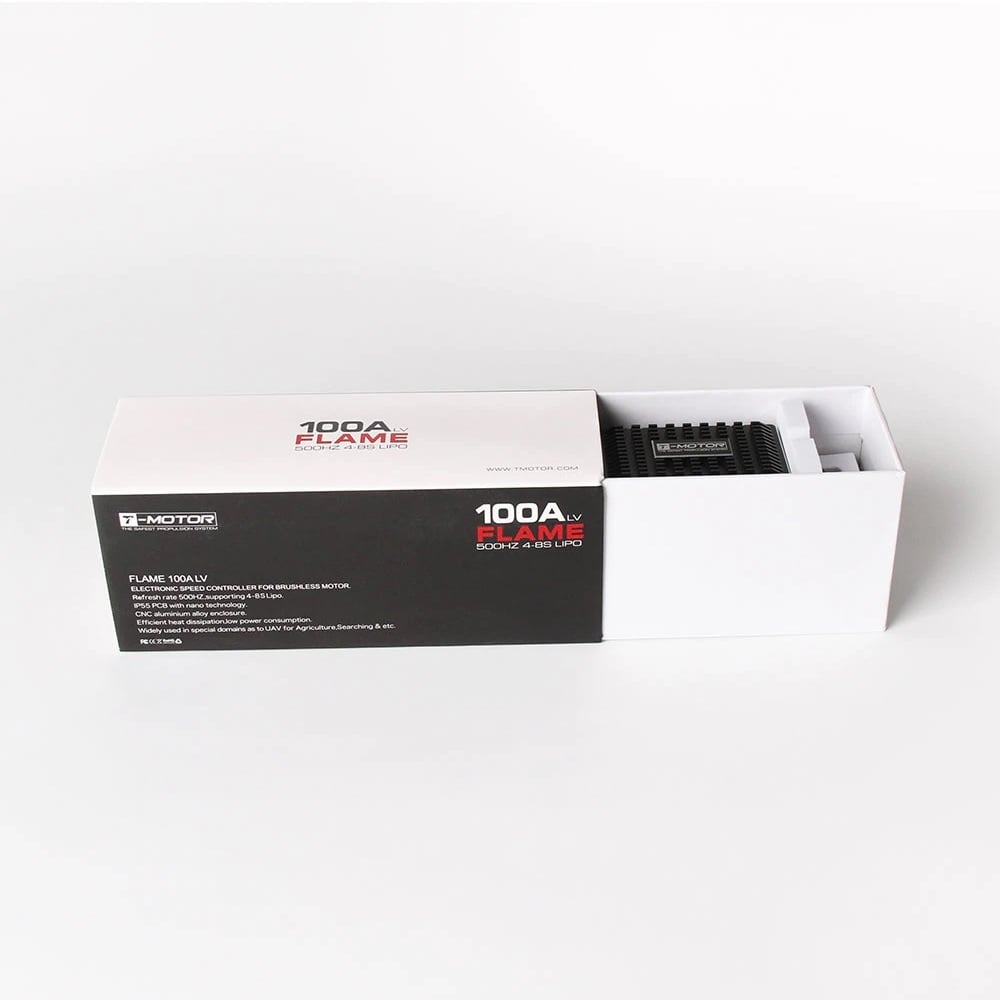

Package Includes:

1 x T Motor Flame 100A 6S ESC
