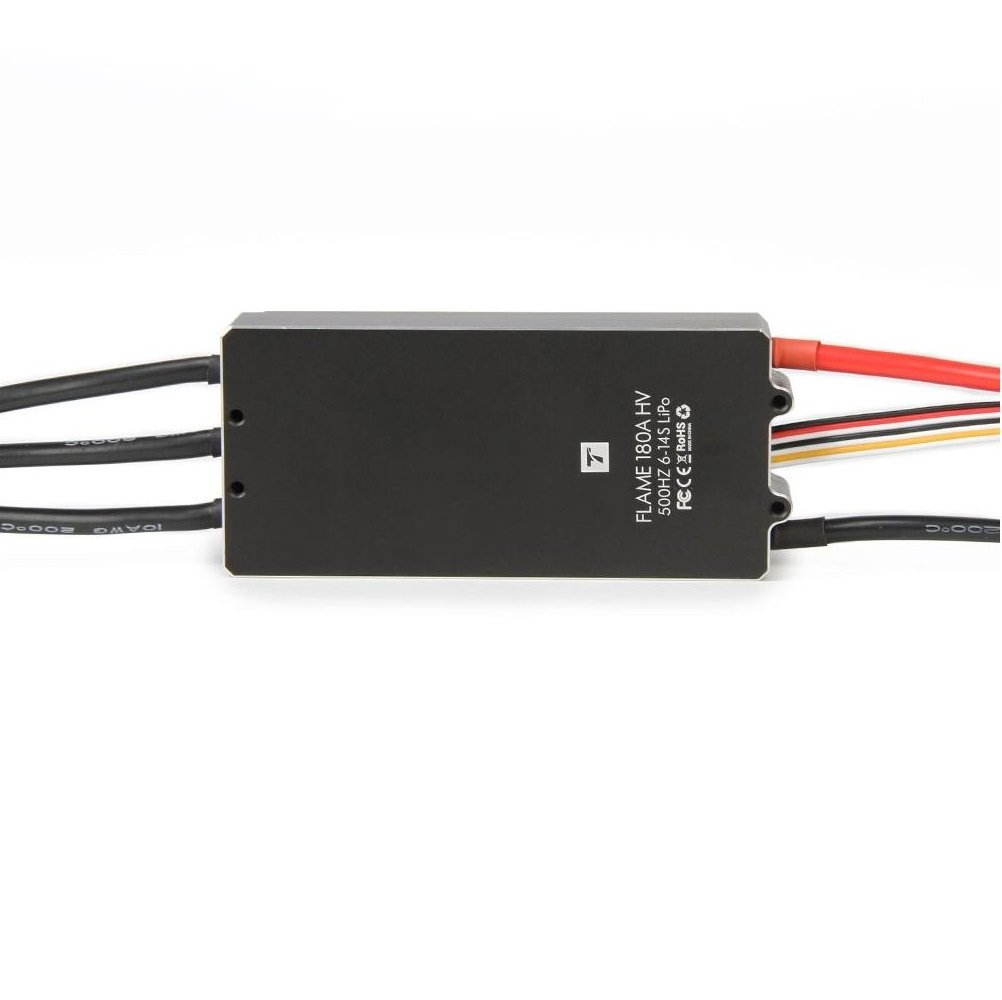

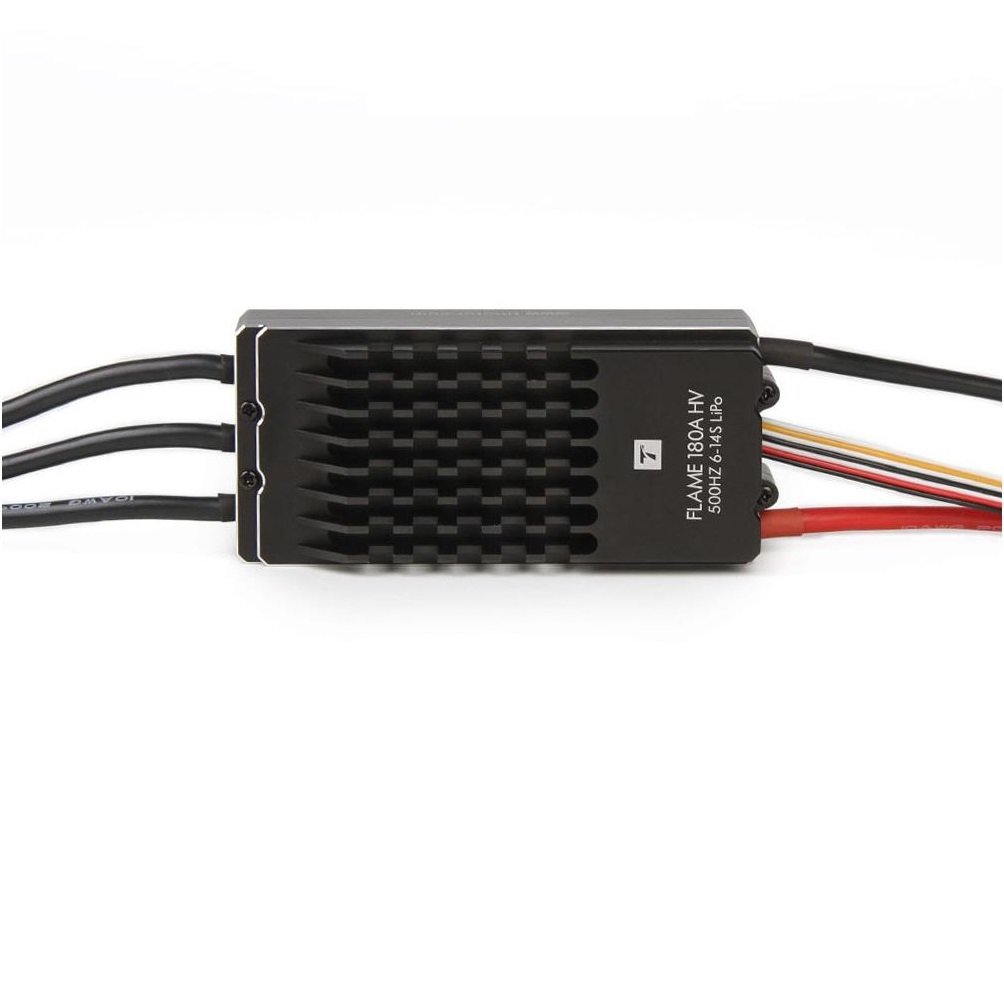

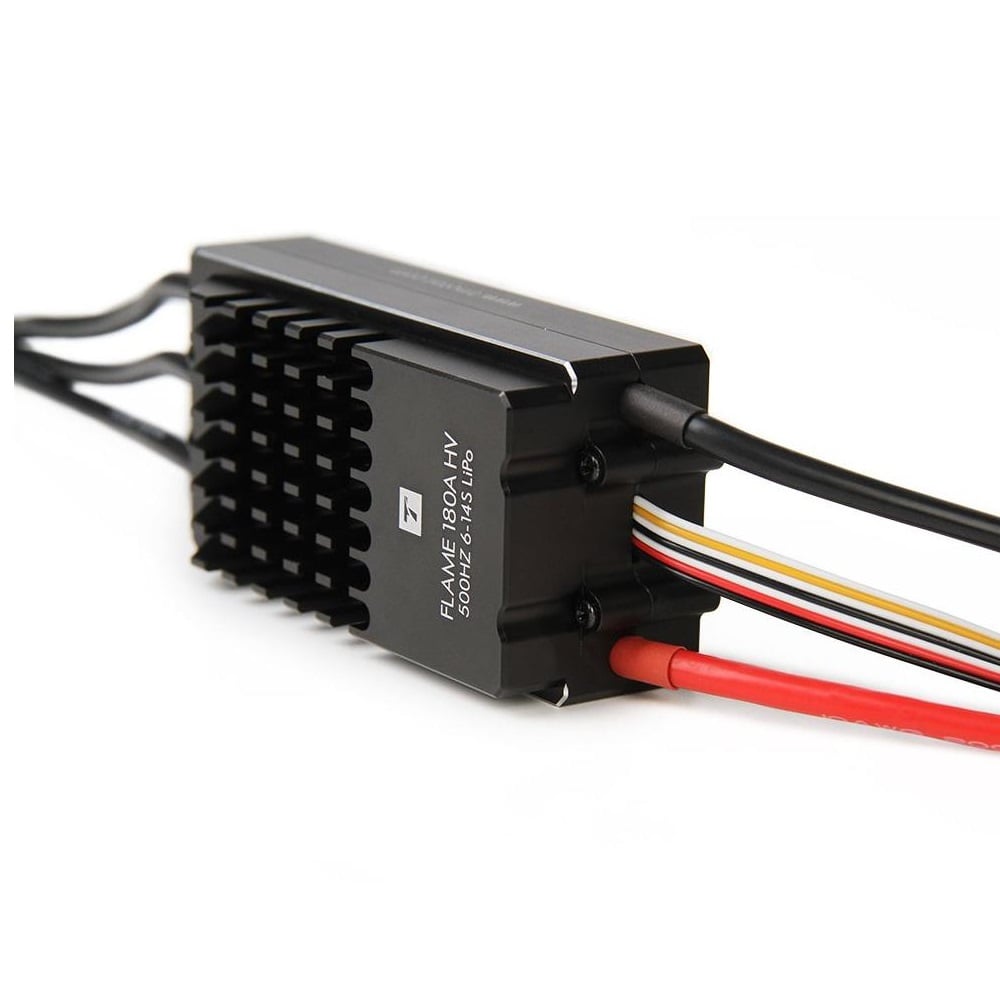

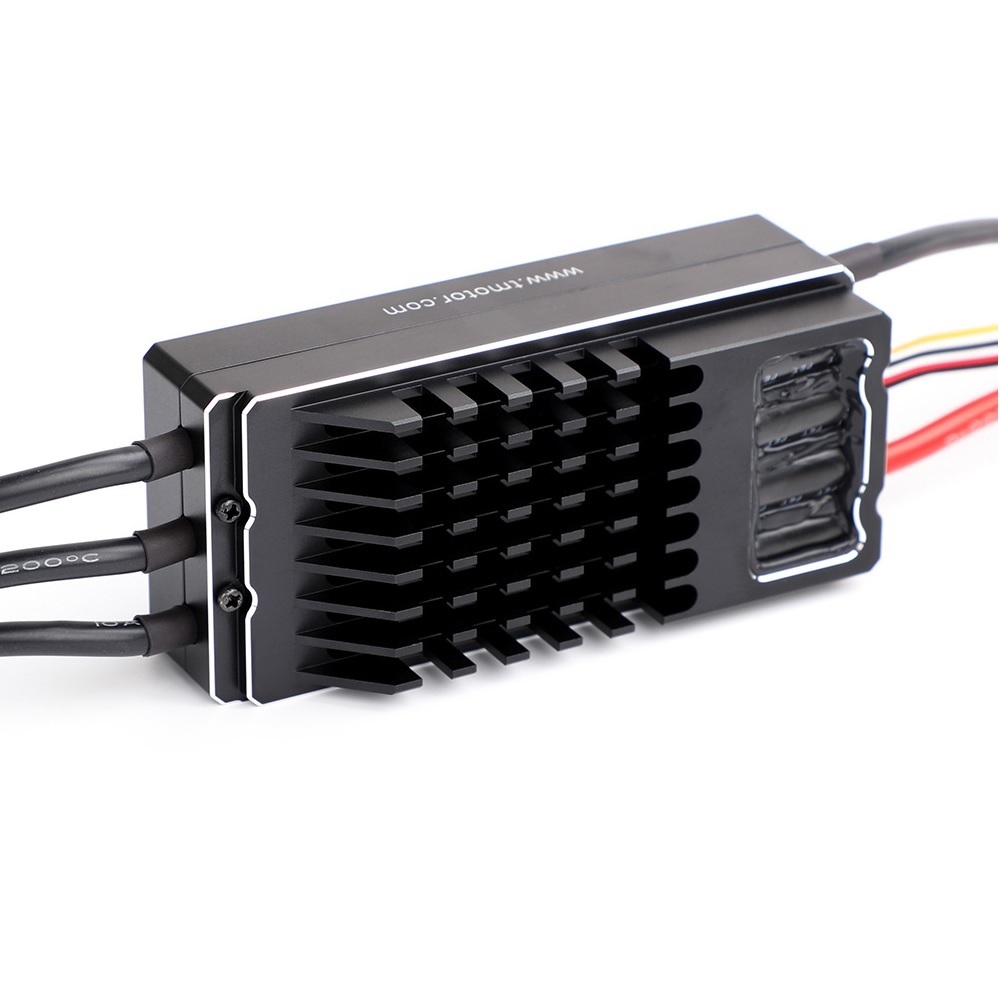

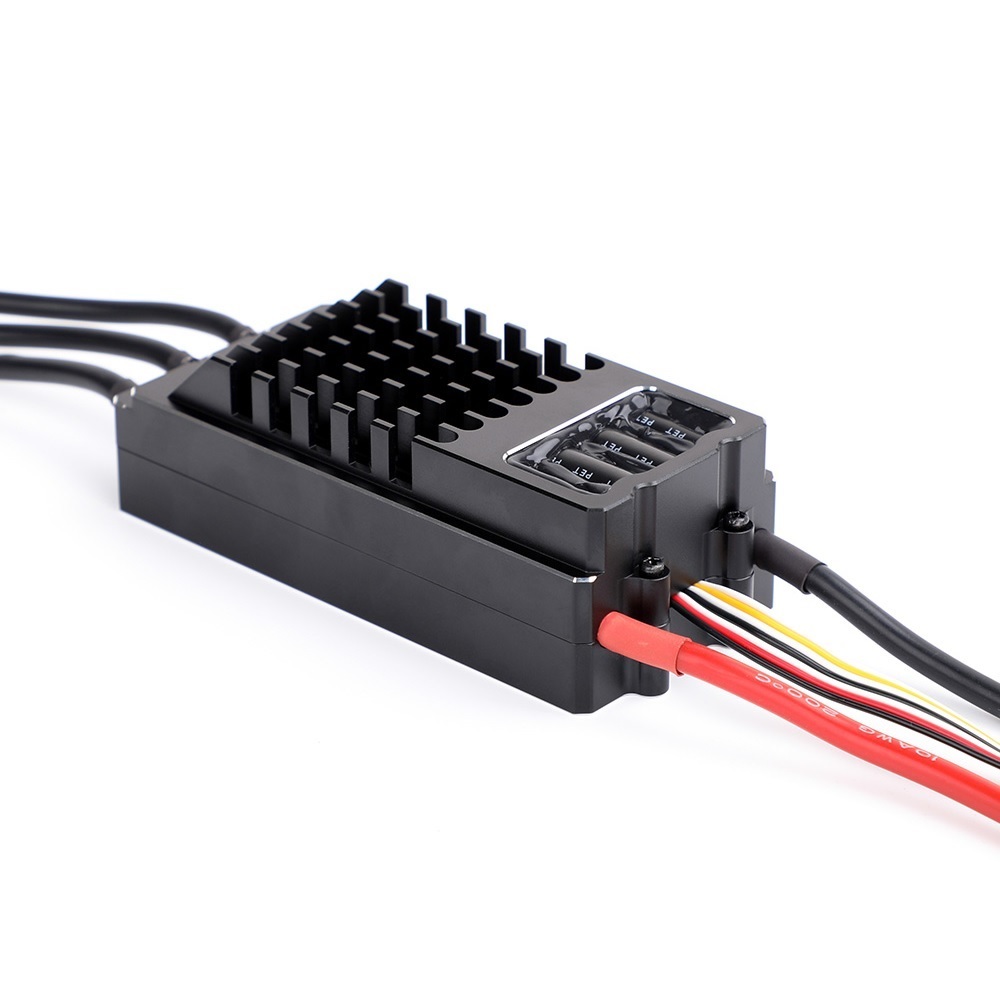

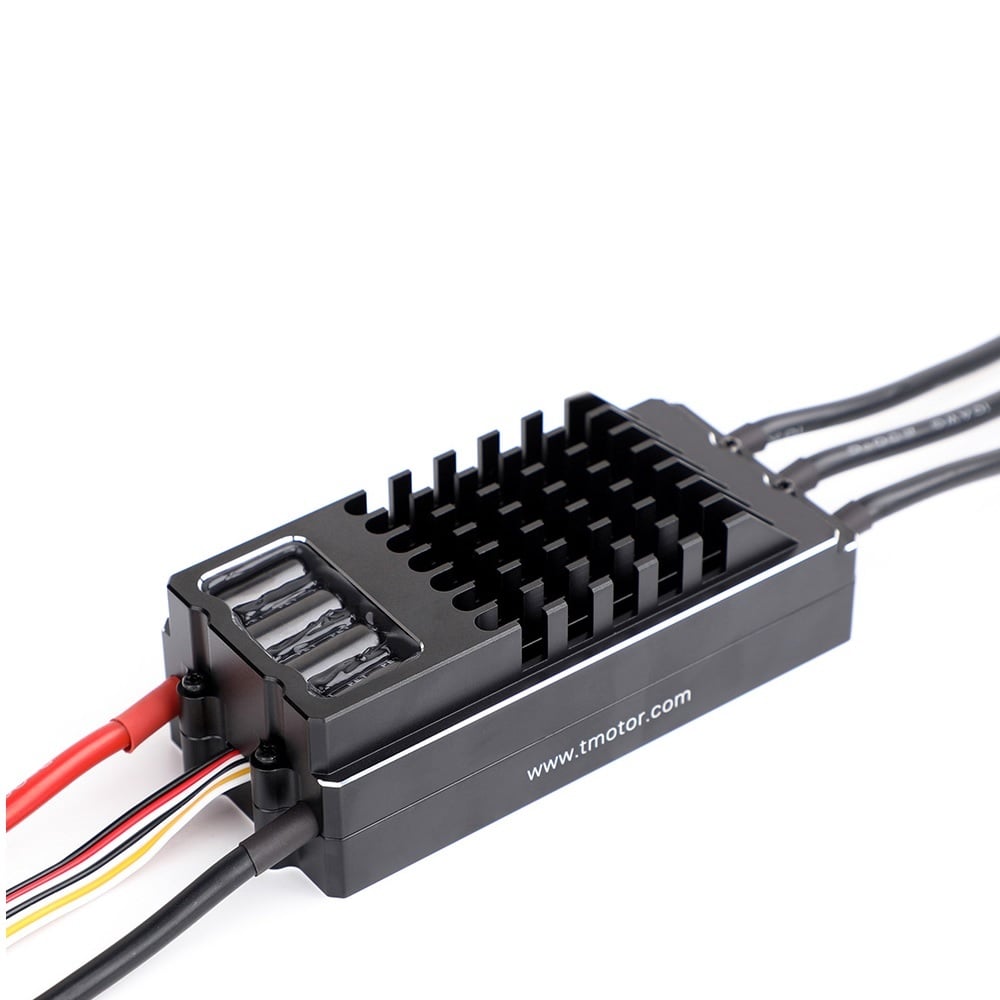

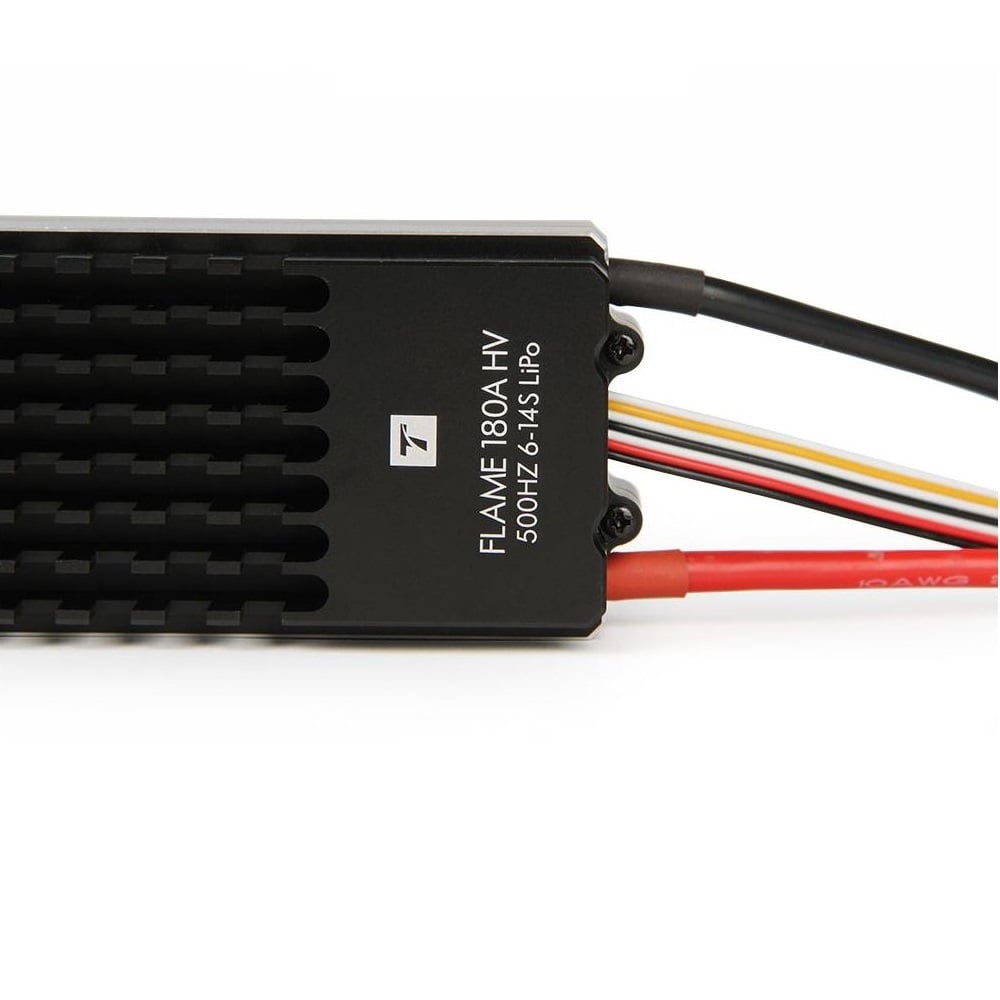

T Motor FLAME 180A 12S V2.0

This T-motor 180A 12S Flame Type ESC featured efficient and reasonable dissipation, layered structure. Compatible with U12 Motors and specially designed for multi-rotors. T Flame ESC can give a continuous current of 180A, and a peak current of up to 200A (10 sec).

Features:

1. High-performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
2. The throttle range can be configured to be compatible with all transmitters currently available on market.
3. Smooth, linear, quick, and precise throttle response.
4. CNC Aluminum alloy enclosure, IP55 PCB with nanotechnology, widely used in UAV agriculture, search and rescue, etc.
5. Separate voltage regulator IC for the microprocessor to get a better anti-jamming capability.
6. Multiple protection features: Low-voltage cut-off protection / over-heat protection/throttle signal loss protection.
7. USB supported. The firmware of the ESC can be updated by the USB adapter.
8. Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field.

Specifications:

1. Continuous Current (A): 180
2. Peak Current (10s): 200
3. BEC: N0
4. LIPO: 6-12s
5. Programmable: No

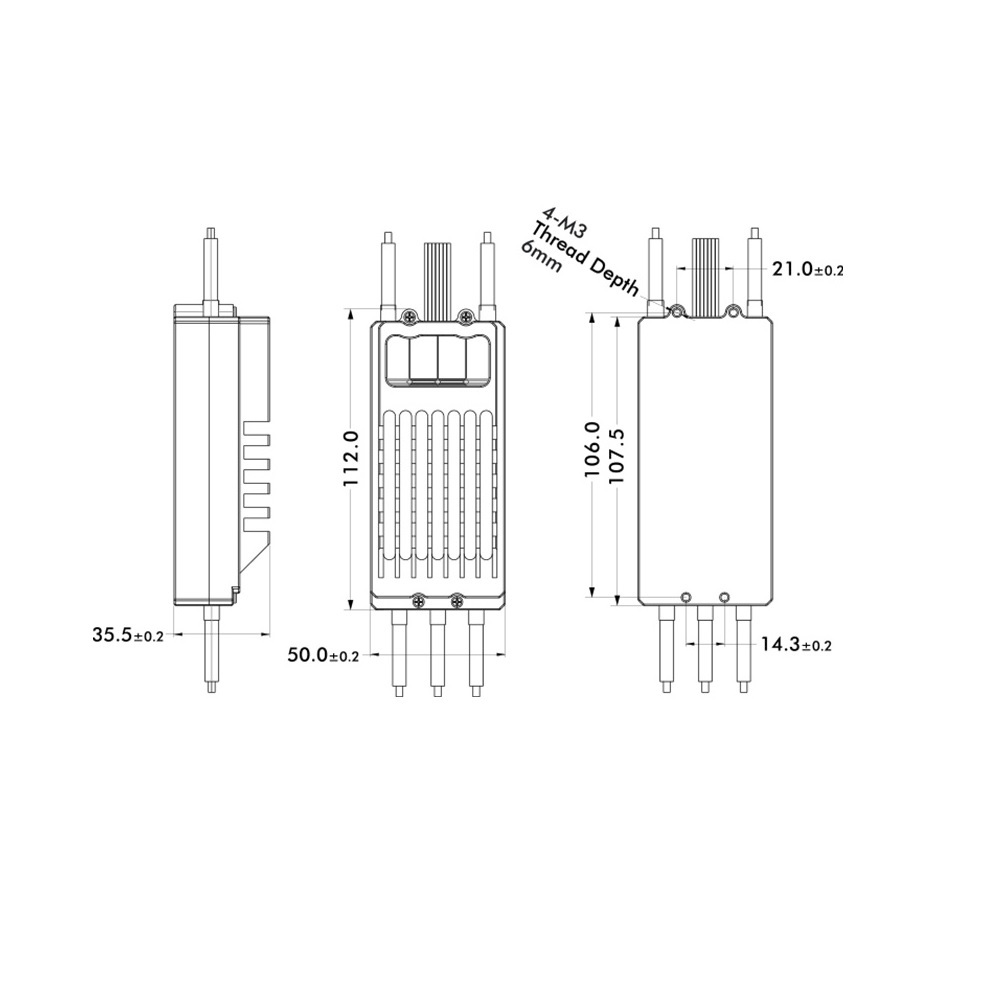

6. Dimension: 112 x 51 x 36 mm
7. Weight: 280 g

Package Includes:

1 x T motor Flame 180A 12S
