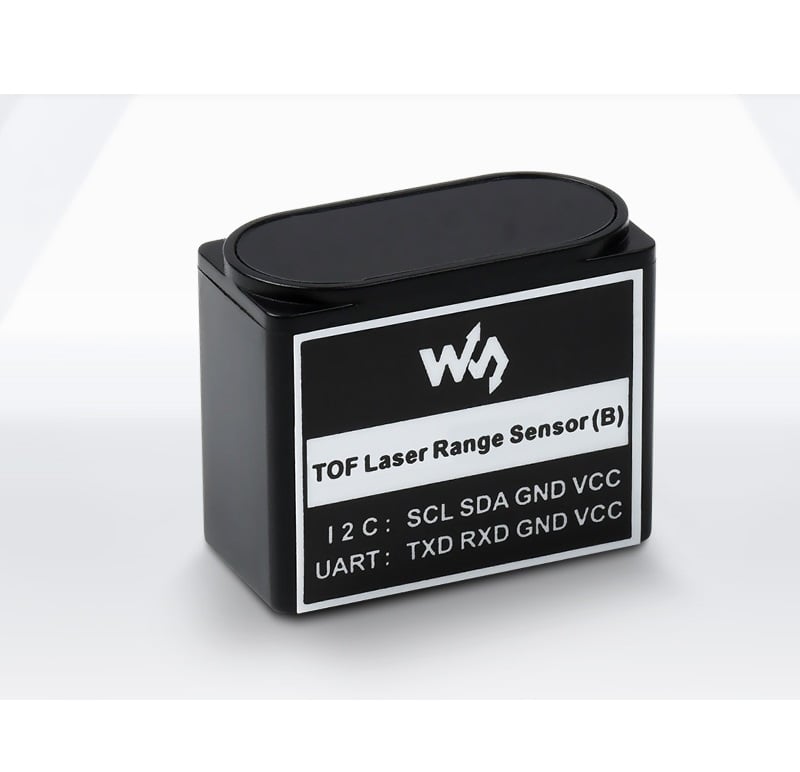

TOF (Time Of Flight) Laser Range Sensor (B), UART / I2C Bus, Long Range

The TOF Laser Range Sensor (B) is a TOF-based (time of flight) laser ranging sensor with an embedded MCU and ranging algorithm, which is capable of offering up to 15m measuring range, ±2% accuracy, and 1mm resolution. It supports UART or I2C communication bus, features a longer measuring distance and higher light interference resistance capability due to its ultra-narrow FOV, suitable for either indoor or outdoor conditions.
This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance/route planning, as well as drone altitude setting/ceiling detection, and more…

Features:

1. Long Range Zone: 15M
2. Short Blind Zone: 1ocm
3. Refresh Rate: 15Hz
4. Field of View: 1° ~ 2°

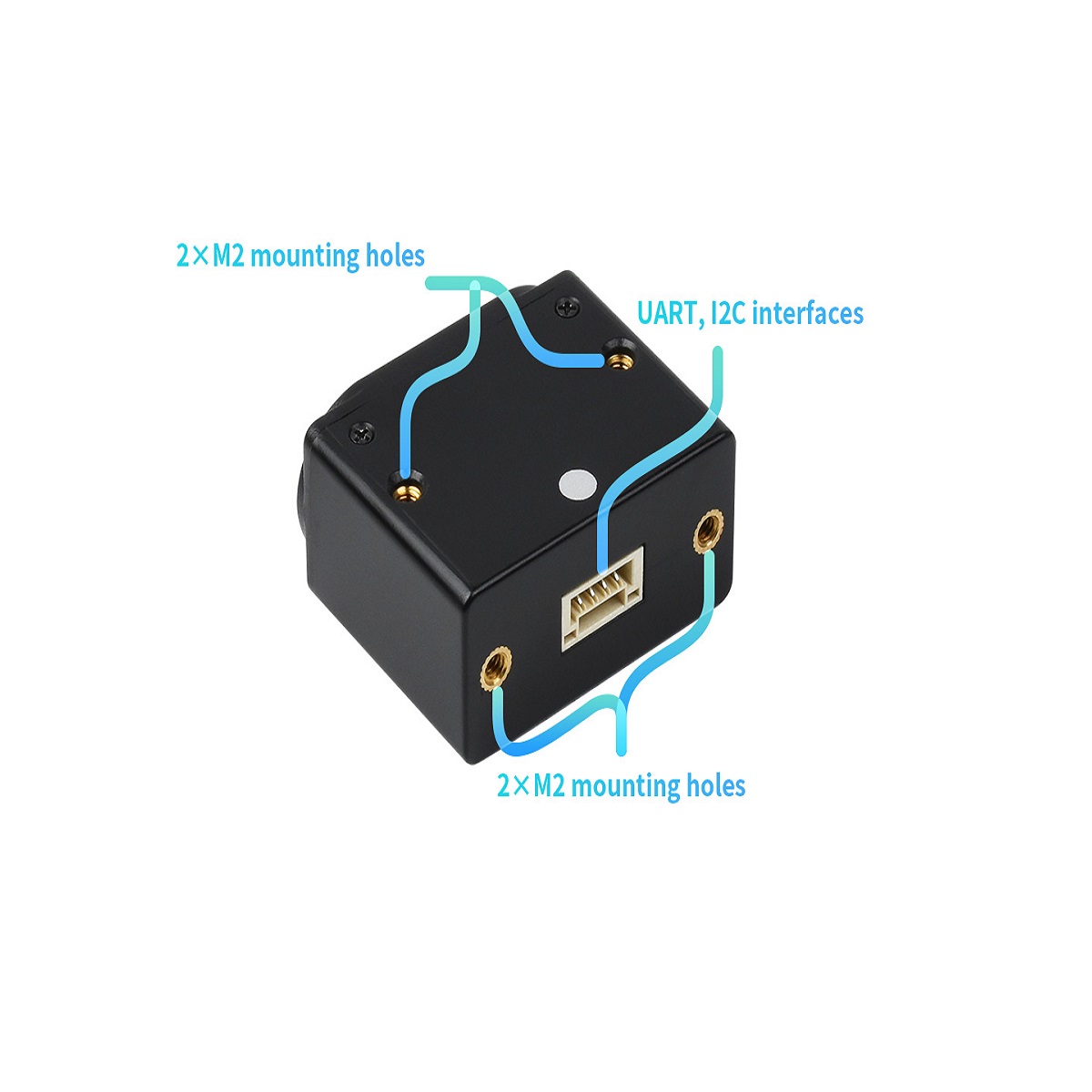

5. Interfaces: UART , I2C

Specification:

1. Typical measuring range 0.10 ~ 15.0m
2. Typical measuring accuracy 0.10 ~ 2m ±2cm; 2 ~ 15m ±2%
3. Resolution 1mm
4. Wavelength 750 ~ 830nm, compliant with iec 60825-1:2014 version 3 class2 standard
5. Field of view (fov) 1° ~ 2°
6. Communication interface uart (3.3v ttl signal level)
7. I2c (cascading support, the slave address is 0x08+module id)
8. Baudrate uart: 115.2kbps ~ 3000kbps (921.6kbps by default)
9. I2c: up to 400kbps
10. Cascade support up to 8x cascades via i2c
11. Power supply 3.7 ~ 5.2v (reverse-proof)
12. Power consumption 610mw (uart active output, 5.0v power supply, 122ma current)
13. Weight 7.7g
14. Operating temperature -10°c ~ 60°c
15. Dimensions 22.7 × 28 × 13.6mm (l × w × h)

Package Includes:

1 x TOF (Time Of Flight) Laser Range Sensor
