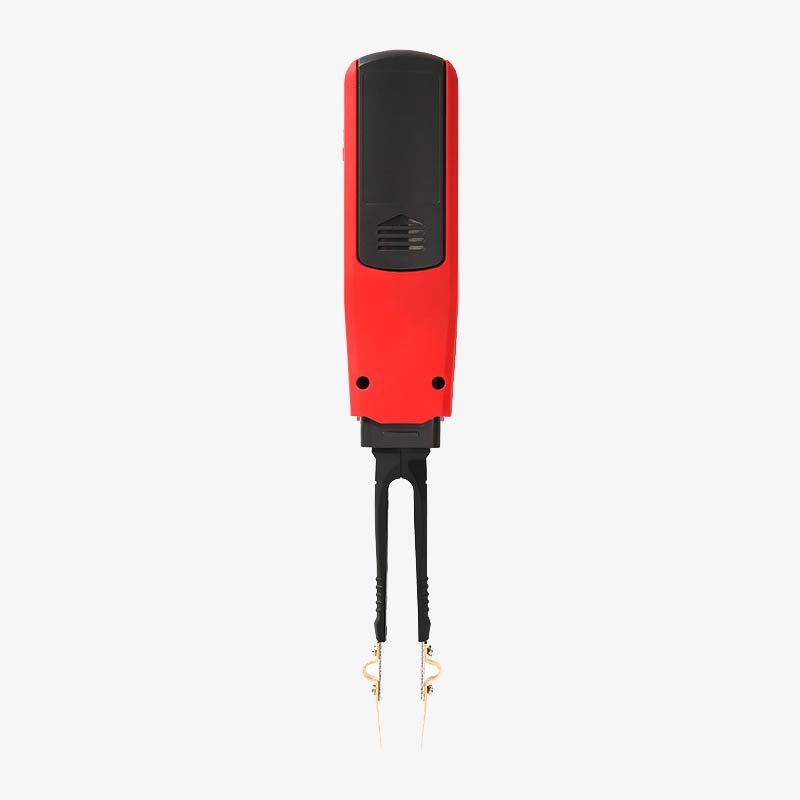

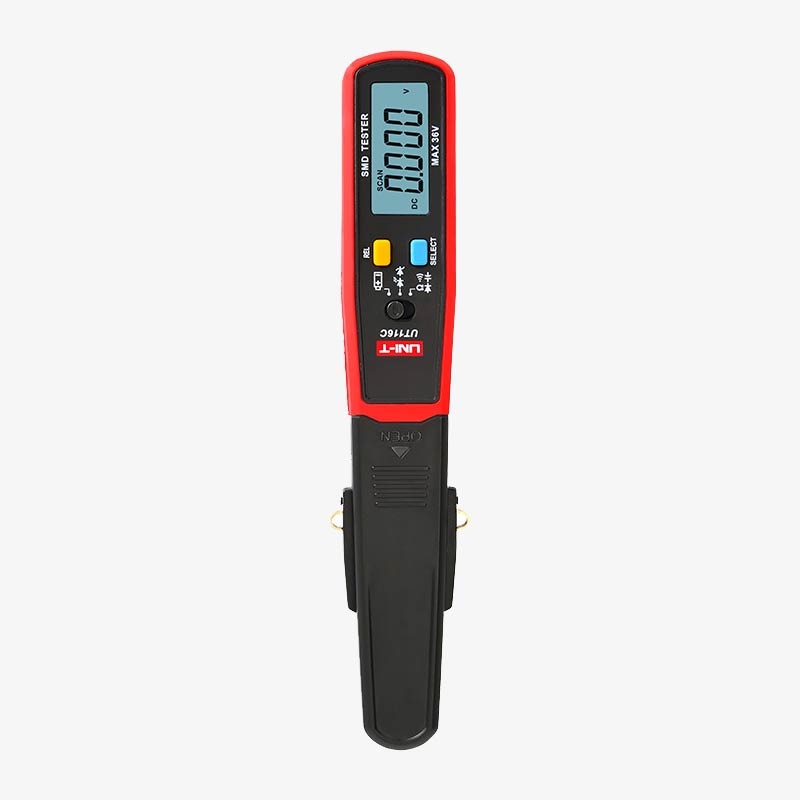

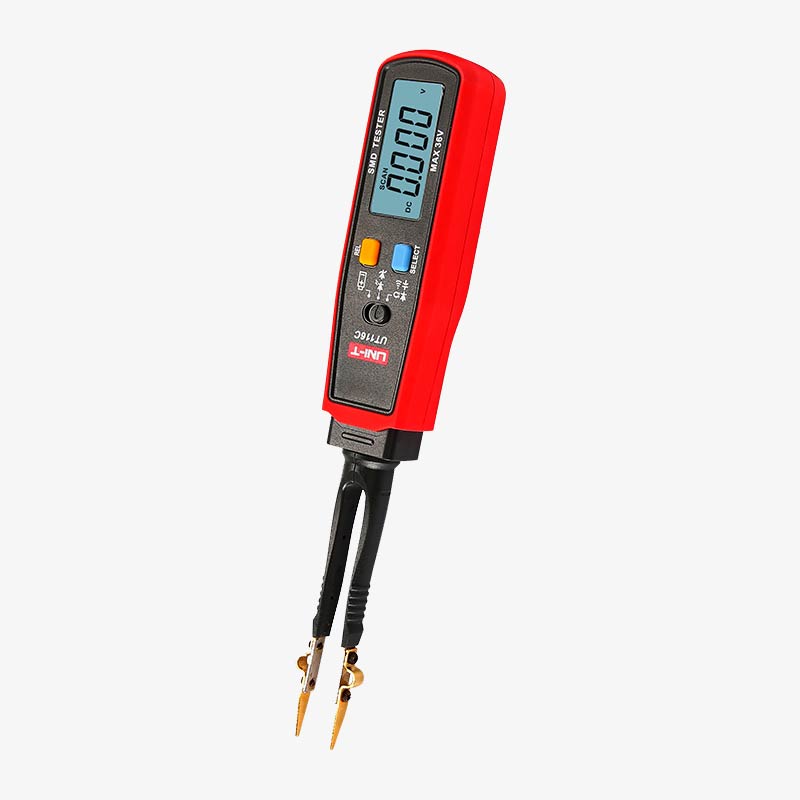

UNI-T UT116C Digital SMD Tester with Resistor Capacitor Diode Test Function

The UNI-T UT116C SMD Tester is a precision instrument designed for efficient and accurate testing of Surface Mount Devices (SMDs). UT116C Product Features 6000 count LCD display Autoranging Relative measurement Continuity test function Diode measurement function Zener, LED test Battery voltage measurement function Low voltage display, automatic shutdown function Application scenario: To be applied to the measurement of SMD resistance, capacitance, diode (RCD) parameters Main user group Electronic engineers-engaged in SMD type patch test; Maintenance staff-Notebook electric repair, mobile phones and other large SMD chip component motherboard.

Features:

• 36V DC Voltage Measurement: Covers a wide range of DC voltage values.
• Battery Measurement (10mA): Effectively tests battery voltage.
• Resistance, Capacitance: Measures resistance and capacitance, with a capacitance range of up to 100mF.
• Continuity and Diode Measurement: Quickly assess continuity and diode parameters.
• Rotatable Pen: The pen can be rotated by 180°, providing convenience for reading and diode/LED evaluations.
• Zener Diode Polarity Test: Ensures accurate evaluation of Zener diodes.

Click Here for Data Sheet!

Specifications:

• Model: UT116C
• Display Count: 6000
• Resistance: Up to 60MΩ
• Capacitance: Up to 100mF
• Diode Test: 3.2V
• LED/Stabilivolt: Approximately 21V/1mA
• Continuity Test: <50Ω
• Battery Test: Load current ≈ 10mA
• Auto Range: Supported
• Auto Power Off: Included for power-saving efficiency

Applications:

• Designed for the measurement of SMD resistance, capacitance, diode (RCD) parameters.
• Ideal for electronic engineers engaged in SMD-type patch testing.
• Valuable tool for maintenance staff handling tasks like notebook electric repair and servicing mobile phones with large SMD chip component motherboards.

Package Includes:

UT116C Digital SMD Tester, Two spare test clamps, two 1.5V (AAA) batteries, User Manual and A pair of test leads.
